Unlocking the hidden chemical area in cubic-phase garnet strong electrolyte for environment friendly quasi-all-solid-state lithium batteries

Synthesis of cubic garnet with excessive focus of lithium

We synthesized Li7La3M2O12 (M = Zr, Hf, Sn, Sc, Ta or Nb) cubic-phase garnet by adopting varied dopants within the Zr websites, contemplating cost stability. Particularly, we searched varied dopants that may substitute the Zr website given the defect formation vitality and choice of dopants within the Zr website (Supplementary Fig. 1)21. The positioning-exchange vitality distinction in Supplementary Fig. 1 signifies the minimal worth of the distinction within the defect formation vitality of dopants between Zr and Li or Zr and La websites. Subsequently, the dopants with low defect formation vitality and enormous distinction in site-exchange vitality can selectively substitute Zr website. Based mostly on these standards, the weather within the shaded area (Supplementary Fig. 1) have been chosen as dopants among the many components with varied oxidation states. Particularly, In and Sc have been thought-about because the dopant candidates among the many components with 3+ oxidation state. Among the many components with 4+ oxidation state, the metallic components Ir, Ru, and Pd have been thought-about together with Hf and Sn. Moreover, Nb and Ta, which have been extensively utilized to the vacancy-driven cubic-phase garnet, have been chosen as a result of they confirmed essentially the most favorable to substitute Zr among the many components with 5+ oxidation state. Given the typical oxidation state obtained with the mixtures of dopants, we synthesized the garnet in accordance with the variety of dopants within the Zr website. For dopants with 3+ oxidation state, we chosen Sc as an alternative of In owing to the decrease defect formation vitality and bigger distinction within the site-exchange vitality. For 4+ dopants, Hf and Sn have been chosen as they’re experimentally established for full substitution of the Zr website (Li7La3Hf2O12, Li7La3Sn2O12)22,23. As displayed in Fig. 1a, pure cubic or tetragonal phases have been obtained in case the variety of components in Zr website was above 3 or not exceeding 3, respectively. Each Li7La3Zr0.5Hf0.5Sc0.5Nb0.5O12 (CZr–Hf–Sc–Nb) and Li7La3Zr0.4Hf0.4Sn0.4Sc0.4Ta0.4O12 (CZr–Hf–Sn–Sc–Ta) exhibited the diffraction sample of cubic part belonging to Ia(bar{3})d area group with lattice parameter a = 12.94724(16) Å and 12.92713(63) Å, respectively. Whereas, Li7La3Hf2O12 (THf) in addition to Li7La3Zr2/3Hf2/3Sn2/3O12 (TZr–Hf–Sn) have been synthesized as tetragonal part (I41/acd area group) with lattice parameters a = 13.12498(11) Å, c = 12.63819(13) Å, and the part was conveniently recognized by the diffraction peaks of (211) and (220) round 17° and 19° being separated into (211)/(112) and (220)/(202), respectively, owing to the decrease symmetry of this part in comparison with the cubic part (Fig. 1b).

Fig. 1: Cubic part stabilization with out emptiness formation.
figure 1

a, b X-ray diffraction patterns of garnet with respect to variety of dopants in Zr website. c, d X-ray and neutron diffraction patterns and Rietveld refinement of Li7La3Zr0.4Hf0.4Sn0.4Sc0.4Ta0.4O12.

The observations of inductively coupled plasma atomic emission spectroscopy (ICP-AES), Raman spectroscopy, and neutron diffraction (ND) measurements totally proved that the cubic part may be stabilized at lithium contents ~7 for CZr–Hf–Sc–Nb and CZr–Hf–Sn–Sc–Ta. Initially, we evaluated and in contrast the contents of lithium and transition metallic within the garnet utilizing ICP-AES by fixing the La contents as 3 per the components unit of the garnet. The ICP outcomes displayed that every one the garnet compounds displayed lithium contents ≥7, whatever the polymorphs (THf: 7.32, TZr–Hf–Sn: 7.168, CZr–Hf–Sc–Nb: 7.247, CZr–Hf–Sn–Sc–Ta: 7.609), indicating that the stoichiometric composition of lithium is maintained with out evaporation in the course of the synthesis course of. The Raman spectrum of CZr–Hf–Sn–Sc–Ta exhibited no detection of Li2CO3 that could possibly be sometimes noticed at 1100 cm–1, implying that almost all lithium supply participates in forming the garnet part besides little consumption for a number of nanometers of Li2CO3 formation (Supplementary Fig. 2 and Supplementary Notes 1 and a pair of). Furthermore, the relative ratio of quantities of transition metallic ion was maintained as goal composition (Supplementary Desk 1). Moreover, we exactly confirmed the lithium contents and website occupancy in CZr–Hf–Sn–Sc–Ta utilizing mixed refinement analyses of the X-ray diffraction (XRD) and ND measurements (Fig. 1c, d, and Supplementary Desk 2). Total, the experimentally noticed diffraction peaks corresponded appropriately with the calculated mannequin of the cubic-phase garnet with equal occupancy of Zr, Hf, Sn, Sc, and Ta within the Zr website, and nearly a pure part (97.9 %) was obtained with hint quantities of LiScO2 (1%) and ZrO2 (1.1%) impurities (Supplementary Desk 3). Though we thought-about whether or not the dopants can occupy the Li website or La website, all dopants selectively substituted the Zr website as anticipated from the outcomes of first-principle calculation (Supplementary Fig. 1)21. The optimized built-in depth R-factor (RI = 4.2%) of ND measurements was achieved at Li ~ 7.0 composition (Supplementary Fig. 3) with practically half of occupancy within the Li2 (96h) website (0.48) (Supplementary Desk 4).

Moreover, the lithium contents in CZr–Hf–Sn–Sc–Ta was 7.0 primarily based on the truth that the Li2 (96h) website occupancy was roughly 0.5. On condition that the Li2 website is separated into two equal positions within the distorted octahedron9, the half-occupation of the location signifies the full-occupation within the distorted octahedral website, suggesting that x = 6 in LixLa3M2O12 denotes the higher restrict of Li quantity within the octahedral website. As well as, as the quantity of lithium within the garnet construction will increase, the occupancy of lithium websites with tetrahedral coordination (24d) decreases and people with octahedral coordination (96h) will increase24. The ND outcomes of CZr–Hf–Sn–Sc–Ta displayed that 5.76 lithium occupied the Li2 octahedral website within the cubic-phase garnet and the residual 1.24 lithium occupied the Li1 tetrahedral website. This result’s in accordance to the pattern of preferentially occupying the lithium within the octahedral website as the entire quantity of lithium per components unit will increase from x = 5.0 to x = 7.025,26. The excessive Li2 (96h) website occupancy of CZr–Hf–Sn–Sc–Ta exceeded that of the vacancy-driven garnet (Li = 6.5, Li2 occupancy = 0.375, comparable to 4.5 lithium per the components unit) reported within the literature24, indicating that the lithium contents of CZr–Hf–Sn–Sc–Ta is ~7.

Mixed outcomes of ICP, Raman spectroscopy, and Rietveld refinement of XRD and ND measurements point out that the cubic-phase garnet may be stabilized with the growing variety of dopants within the Zr website with out emptiness formation within the Li website. We evaluated the ionic conductivity of the garnet strong electrolyte with Li = 7.0 composition. As anticipated, the tetragonal part manifested low ionic conductivity of ~10–6 S/cm, whereas CZr–Hf–Sc–Nb and CZr–Hf–Sn–Sc–Ta exhibited 2.7 × 10–4 and 1.7 × 10–4 S/cm bulk conductivity at 25 °C, respectively (Supplementary Fig. 4), which is proximate to the worth of Al doped garnet (σLi+ = 2.11 × 10–4 S/cm)27.

Entropy-driven stabilization of cubic part

The stabilization of the cubic-phase garnet presumably originates from the rise in entropy. Earlier research reported that the cubic-phase stabilization within the garnet compound system is an entropy-driven course of involving redistribution of lithium ions and lithium vacancies. Nevertheless, in our system, entropy is predominately elevated by the incorporation of a number of distinct metallic cations right into a crystallographic equal website, not like within the case of the traditional garnet with lithium vacancies28. To disclose the origin of the cubic-phase stabilization noticed within the multicomponent garnet compound, we first investigated the soundness of the cubic and tetragonal phases of the Li = 7.0 composition in accordance with the variety of dopants within the Zr website primarily based on the density useful concept (DFT) calculations (Fig. 2). The native pressure of the Zr website in two garnet polymorphs, which is an indicator of the diploma of Li–Li repulsion assorted by the adjoining native environments sharing the nook and edge websites of the octahedral website, was in contrast in accordance with the variety of dopant species (Fig. 2a, b). The structural distortion of the tetragonal and cubic part was in contrast primarily based on the variance of each bond size (Zr–O) and bond angle (O–Zr–O) for 16 Zr octahedral website within the supercell to research the interior pressure impacting the part stability (Fig. 2c and Desk 1)10. Particularly, the cubic part skilled extra inside pressure than the tetragonal part when it comes to each distortion index of bond size and bond angle variance, whatever the variety of dopants as anticipated. Apparently, the interior pressure of the garnet part containing 5 dopant species was relieved compared to the cubic part containing solely Zr. Within the multicomponent cubic part, each parameters indicated the interior pressure decreased from 0.00918 to 0.00769 for distortion index and from 21.6939° to 16.8122° 2. for bond angle variance. Nevertheless, the tetragonal phases of Zr and Zr–Hf–Sn–Sc–Ta system displayed scarce distinction for the 2 parameters. These outcomes implied that the interior pressure vitality required to take care of the cubic part within the Li = 7.0 composition could possibly be comparatively decrease for the garnet containing a number of dopant species than the garnet compound with solely Zr. Furthermore, we in contrast the enthalpy distinction between the tetragonal and cubic phases; in distinction to our expectation, the tetragonal part was extra secure than the cubic part in all compositions (Fig. second). Moreover, the hole of formation enthalpy between the tetragonal and cubic part was negligible, whatever the variety of dopants (a number of milli electron volts per atom) (Supplementary Desk 5). This signified that the incorporation of a number of dopants into the Zr website can mitigate the interior pressure, however it’s not ample to stabilize the enthalpy formation vitality for the cubic part of the garnet. Thus, it implies that the cubic part stabilization within the garnet with a number of dopants is presumably attributable to an entropy impact than the enthalpy impact.

Fig. 2: Native construction of Zr website and formation enthalpy with respect to variety of dopant species.
figure 2

a Native crystal construction of the Zr website with adjoining Li website for the tetragonal part and b the cubic-phase of garnet. Li1 and Li2 websites for the cubic-phase point out the 24d tetrahedral and 96h octahedral website, respectively. c Calculated structural parameters of common bond distortion index and bond angle variance between metallic and oxygen within the Zr octahedral website because the tetragonal and cubic part with Li7La3M2O12 composition. d Distinction in formation enthalpy vitality between the cubic and tetragonal part with respect to variety of dopant species.

Desk 1 Calculated structural parameters of bond size, distortion index, and bond angle between metallic and oxygen in Zr octahedral website at Li = 7.0 composition

As proof of entropy-driven stabilization, the rise within the variety of dopants within the Zr website lowered the nucleation temperature of the cubic part (Fig. 3 and Supplementary Fig. 5). As well as, we systematically investigated the part evolution conduct utilizing operando XRD in the course of the calcination course of. We acquired XRD patterns throughout heating and cooling within the temperature vary of 25–1000 °C. As depicted in Fig. 3a, the cubic part formation began over 750 °C for Zr–Hf–Sn system with emergence of the 2 consultant diffraction peaks at 16–17° and 19–20° comparable to (211) and (220) planes, respectively. The noticed cubic formation temperature was analogous to that shaped by the solid-state artificial route11. In distinction, the cubic part formation began from 400 °C for greater than 4 dopants within the Zr website, as portrayed in Fig. 3b, c, and Supplementary Fig. 6. The part fractions for Zr–Hf–Sn–Sc–Ta system within the temperature vary of 450–1000 °C have been proven in Supplementary Fig. 7. The bottom temperature was noticed within the solid-state response forming the cubic part of garnet, which implied a possible applicability of the garnet with a number of dopants (greater than 4) when it comes to low-temperature ceramic processing for the manufacturing of inorganic solid-state electrolytes for secondary lithium batteries29. Throughout the cooling course of, we confirmed that the part transition from the cubic part to the tetragonal part was noticed at 660 °C for Zr–Hf–Sn system (Fig. 3d), whereas the cubic part was maintained for the opposite garnet compounds with 4 or extra dopants within the Zr website (Fig. 3e, f). We anticipated that Zr–Hf–Sc–Nb or Zr–Hf–Sn–Sc–Ta system would additionally bear the cubic–tetragonal part transition at beneath the part formation temperature due to the entropy impact; nevertheless, we surprisingly detected that the cubic part was maintained even at extraordinarily low temperatures till −253 °C (Supplementary Fig. 8). This can be attributable to the sluggish kinetics of the cubic–tetragonal part transition at low temperatures, and in prior analysis, analogous phenomena have been reported for the entropy-driven stabilized compounds with out polymorphic part transitions30,31.

Fig. 3: Operando part evolution throughout calcination for varied numbers of dopants in Zr website.
figure 3

a–c Contour plots of X-ray diffraction patterns throughout heating and d–f cooling course of in 14–20°. White arrow signifies the temperature of cubic part formation or part transition temperature from cubic to tetragonal part.

The origin of the entropy-driven stabilization in advanced chemical compound comparable to a garnet system was not apparently attributable to the straightforward improve within the configurational entropy owing to extend within the variety of components within the equal crystallographic websites, defined in typical high-entropy alloy or oxides32,33. As a result of, the change within the configurational entropy of the garnet in accordance with the rise within the variety of dopants within the Zr website produces the identical quantity of improve in each cubic and tetragonal phases. By way of phonon vibrational entropy, it modifications because the variety of components will increase in each tetragonal and cubic part, nevertheless, the distinction in entropy change between the tetragonal and cubic part isn’t related, even the entropy improve is barely bigger for the tetragonal part than the cubic part (Supplementary Fig. 9). Nevertheless, the incorporation of varied dopants within the Zr website probably will increase the variety of accessible microstate basins for the cubic part at a given vitality or a finite temperature. On condition that the phonon vibrational and configurational entropy results have been minimal, it may be inferred that the cubic part stabilization could possibly be because of the improve of different entropy results comparable to digital entropy34,35 or digital configurational entropy results36.

Ionic conductivity and discount stability in opposition to Li metallic

To guage the impact of excessive lithium contents (Li = 7.0) within the cubic-phase garnet on ionic conductivity and the discount stability in opposition to lithium metallic, we in contrast the ionic conductivity and the discount stability of two cubic-phase garnets with various lithium contents (Fig. 4). First, we synthesized a cubic-phase garnet with Li = 6.6 composition (Supplementary Fig. 10) with equivalent atomic species (Zr/Hf/Sn/Sc/Ta) and elevated the relative atomic ratio of Ta/Sc from 1 to three (Li6.6La3Zr0.4Hf0.4Sn0.4Sc0.2Ta0.6O12) for comparability, as a result of the discount stability relies as the kind of dopant species20. The Rietveld refinement results of ND exhibited the optimized Bragg-R issue (RI = 2.41 %) on the goal composition (Li~6.6) and confirmed a pure cubic part (99.0%) with lattice parameter 12.91462(11) Å (Supplementary Figs. 11 and 12, and Supplementary Tables 6 and seven). The relief of inside pressure, attributable to the emptiness formation for relieving the Li–Li repulsion, was confirmed from Williamson–Corridor plot (Supplementary Fig. 13).

Fig. 4: Electrochemical impedance variations in entropy-driven cubic-phase garnet in Li||Li symmetric cell for various lithium contents.
figure 4

a, b Nyquist plots for the coin-type Li||Li symmetric cells with Li7La3Zr0.4Hf0.4Sn0.4Sc0.4Ta0.4O12 and Li6.6La3Zr0.4Hf0.4Sn0.4Sc0.2Ta0.6O12 garnet at 60 °C with out further exterior stress. Inset figures describe equal circuit mannequin and scheme of interfacial layer construction with Li metallic. c Variation in interfacial resistance for Li||Li symmetric cells as a perform of time at 60 °C (time interval between measurements: 32 min). d Li stripping and plating profile of Li7La3Zr0.4Hf0.4Sn0.4Sc0.4Ta0.4O12 and e Li6.6La3Zr0.4Hf0.4Sn0.4Sc0.2Ta0.6O12 at 60 °C with a present density (J) of 0.2 mA cm–2.

Apparently, the majority ionic conductivity of the Li = 6.6 garnet was confirmed as 3.2 × 10−4 S/cm at 25 °C, as displayed in Supplementary Fig. 10, which is 88% greater than that of the Li = 7.0 garnet (1.7 × 10−4 S/cm at 25 °C). A number of research have studied the correlation between the quantity of lithium and ionic conductivity. Goodenough’s group argued that the formation of emptiness in octahedral websites contributed to excessive ionic conductivity, and a 3:1 ratio of Li+ occupancy/emptiness in these websites could be the optimum worth when it comes to quick ionic conduction37. Sakamoto’s group somewhat insisted that growing the lithium quantity together with the 96h website occupancy enhances the ionic conductivity. It’s because the excessive occupation of lithium ions within the 96h website can improve the variety of efficient cost provider attributable to destabilization of the lithium ions on the extra cell 96h website owing to the sturdy Coulombic repulsion on the lowered 24d–96h distance24. Nevertheless, the correlation between the lithium/emptiness focus and the ionic conductivity was unclear, particularly for the cubic-phase garnet with the excessive lithium contents (>6.6) as a result of its experimental implementation of the excessive lithium contents garnet remained a problem till thus far. Within the high-entropy cubic-phase garnet system providing a lithium-stuffed environmental with Li = 7.0 composition, the ND outcomes confirmed the very best occupancy of lithium within the octahedral 96h website (96%) among the many stories on the cubic-phase garnets. Within the Li > 6.6 composition within the cubic-phase garnet, the Li = 7.0 garnet exhibited practically identical 24d–96h distance (1.593(14) Å) with that of the Li = 6.6 garnet (1.58905(0) Å), regardless of displaying a excessive 96h website occupancy compared to the Li = 6.6 garnet (84%) (Supplementary Tables 4 and seven). This resulted in comparable activation vitality for each two totally different garnets (406.8 meV and 403.5 meV for the Li = 7.0 and Li = 6.6 garnet, respectively) (Supplementary Fig. 10b), which suggests that within the case of garnet system with excessive lithium contents (Li > 6.6), the excessive occupation of lithium ions within the octahedral website has little impact on change of vitality panorama for diffusion, somewhat, the rise of the variety of emptiness for lithium interstitial website immediately have an effect on the rise within the prefactor of ionic conductivity.

After assembling the symmetric cell (Li|SE|Li) for the 2 garnet compounds with totally different lithium contents by making use of chilly isostatic stress of 250 MPa, we measured the electrochemical impedance spectroscopy (EIS) variations at 60 °C with respect to time (Fig. 4a–c) to research the discount stability. EIS spectra exhibit a depressed semicircle at low frequencies beneath 1000 Hz for each compositions of Li = 7.0 (Fig. 4a) and Li = 6.6 (Fig. 4b), and a further semicircle is noticed solely in case of the Li = 6.6 garnet at excessive frequencies over 1000 Hz. The enlarged EIS spectrum of the Li = 7.0 garnet clearly confirmed that no semicircle appeared at excessive frequencies area over 1000 Hz (Supplementary Fig. 14). In keeping with the equal capacitance worth of fixed part ingredient (QCPE = 9.2 × 10−3 F sα−1) at low frequencies, which is taken into account because the electrochemical response contribution38,39, the corresponding resistance is seemingly induced by the barrier for Li diffusion together with the cost switch course of (R3CPE3)20. The detailed becoming parameters are proven in Supplementary Desk 8. The depressed semicircle at excessive frequencies induced by the interfacial layer (R2CPE2) is noticed solely within the Li = 6.6 garnet given the capacitance worth of fixed part ingredient (QCPE = 5.6 × 10−7 F sα−1) and the negligible grain boundary resistance of sintered pellet (Supplementary Fig. 15). Contemplating the absence of interfacial resistance for the Li = 7.0 garnet and the excessive isostatic stress as much as 250 MPa for improved Li|SE adhesion, the interfacial resistance proven within the Li = 6.6 garnet was not attributable to the constriction resistance concerning the contact geometry40 however owing to the metallic discount interphase (MRI) layer shaped after the chemical response with lithium20,41. In keeping with the DFT calculations, the thermodynamic discount potentials for the Li = 7.0 and Li = 6.6 garnets displayed comparable outcomes of 1.34 and 1.45 V, respectively, owing to the discount of Sn (Supplementary Fig. 16). In distinction, the response vitality of the garnet with Li metallic (at 0 V) was decrease in case of the Li = 7.0 garnet (137.4 meV/atom) than the Li = 6.6 garnet (162.9 meV/atom), thereby indicating that the garnet with excessive lithium contents might exhibit greater kinetic barrier for metallic discount by lithium metallic compared to the garnet with much less lithium contents. Subsequently, this discovering implies that the kinetic barrier required for forming the MRI layer relies on the lithium composition within the garnet system. Particularly, the chemically shaped MRI layer will increase the resistance at low frequencies as a perform of time. Furthermore, the majority (R1) and interfacial resistance (R2) is sort of maintained with out vital variations for each Li = 7.0 and Li = 6.6 garnets. Nevertheless, the diffusional resistance together with the cost switch (R3) elevated from 20 to 32.5 Ω cm2 for the Li = 6.6 composition after 110 h, whereas that of the Li = 7.0 composition displayed a slight variation from 13.8 to 14.6 Ω cm2. Total, the speed fixed of improve within the resistance per sq. root of time for the Li = 6.6 garnet (0.84 Ω cm2/h0.5) was eight instances greater than that of the Li = 7.0 garnet (0.1 Ω cm2/h0.5) after 16 h, thereby implying that the cubic-phase garnet with excessive lithium contents within the construction is kinetically secure in opposition to lithium metallic.

Throughout stripping and plating of the lithium metallic, the Li = 6.6 garnet exhibited a better improve in overpotential than the Li = 7.0 garnet, as displayed in Fig. 4d, e. To attenuate the resistance variations originating from the morphological transformation or void formation on the Li|SE interface40,42, the lithium stripping and plating have been carried out at excessive temperature (60 °C) with a low present density of 0.2 mA/cm2 for 30 min, comparable to an areal capability of 0.1 mAh/cm2. The preliminary overpotential of the Li = 6.6 garnet composition was small compared to that of the Li = 7.0 garnet owing to its comparatively excessive ionic conductivity. Throughout repeated 400 cycles of the lithium plating and stripping, the Li = 7.0 garnet displayed solely negligible modifications within the overpotential of ~ 1 mV, whereas the Li = 6.6 garnet exhibited a sizeable improve within the overpotential of ~4 mV. Though absolutely the worth of improve within the overpotential of the Li = 6.6 garnet appeared as small, it can’t be uncared for, as a result of the overpotential considerably elevated by 36% from the preliminary worth. As well as, the influence was even better, contemplating the excessive sensible values required for sensible functions, comparable to a big electrode space (~200 cm2), skinny strong electrolyte (30 μm), excessive present density (5 mA cm–2), and extensive working temperature vary (−20–100 °C)43.

Moreover, the ex situ X-ray photoelectron spectroscopy (XPS) measurements and analyses confirmed that the Li = 6.6 garnet was extra weak when it comes to the discount stability in opposition to lithium metallic in comparison with the Li = 7.0 garnet. We carried out XPS evaluation on 5 metallic core ranges (La 3d, Zr 3d, Hf 4f, Sn 3d, and Sc 2p) for each Li = 7.0 and Li = 6.6 garnets after contact with the lithium metallic for a similar interval, and the outcomes are displayed in Supplementary Fig. 17. The contact with the lithium metallic resulted in additional discount of each Zr and Sn for the Li = 6.6 garnet in comparison with the Li = 7.0 garnet, and different metallic species displayed no vital distinction between the 2 garnets aside from Zr and Sn. The discount of Zr4+ to Zr2+ was evidently noticed for the Li = 6.6 composition with the looks of shoulder peaks at 181.7 eV. In distinction, solely a chemical shift to 182.5 eV induced by a slight discount was noticed for the Li = 7.0 garnet. In Sn 3d core degree, the decrease binding vitality of Sn 3d5/2 peak was noticed for the Li = 6.6 garnet in comparison with the Li = 7.0 garnet (485.9 eV for Li = 7.0 garnet vs. 485.3 eV for Li = 6.6 garnet). These outcomes signified that the discount stability of the garnet is influenced by the lithium contents in addition to the dopant species within the garnet system.

Related pattern can be noticed in O-Okay edge spectra through ex situ delicate X-ray absorption spectroscopy (sXAS). As proven in Supplementary Fig. 18, the Li = 7.0 garnet confirmed practically equivalent absorption spectra whatever the contact with the lithium metallic, in the meantime, the Li = 6.6 garnet confirmed a slight improve within the peak depth round 533.3 eV and within the vary of 538.5–539.7 eV after the lithium metallic contact. Though the O-Okay edge spectrum has advanced info owing to the assorted dopants-driven hybridization orbital (Sc-3d, Zr/Sn-4d, Hf/Ta/La-5d, and O 2p), evolution within the Li = 6.6 garnet appears to be owing to the formation of MRI layer induced by Zr and Sn discount confirmed by XPS. As a result of there isn’t any clear proof of the ODI layer formation comparable to emergence of Li2O. As well as, the existence of shoulder peak in each Li = 7.0 and Li = 6.6 garnet (533.3–534.1 eV) even after the contact the with lithium metallic corroborates that cubic part is properly maintained with out tetragonal part formation. Absorption peak at low vitality round 533.3–534.1 eV for the Li = 6.6 and Li = 7.0 is believed as a characteristic of cubic part by evaluating the reference spectra of tetragonal-phase garnet (Li7La3Zr2/3Hf2/3Sn2/3O12) and Ta-doped cubic-phase garnet (Li6.5La3Zr1.5Ta0.5O12). In distinction to the cubic part, the tetragonal part confirmed solely absorption peak at 535.2 eV with out the height at decrease worth, and the absence of shoulder peak (533.3–534.1 eV, shaded area in Supplementary Fig. 18a, b) was additionally confirmed by EELS evaluation19. As well as, given the cubic part was appropriately maintained for each samples as confirmed by the ex situ Raman measurements and analyses (Supplementary Fig. 19), we will infer that the rise of the interfacial resistance was primarily induced by the formation of MRI layer with the metallic discount owing to the contact with the lithium metallic with out the part transformation.

Electrochemical vitality storage efficiency in quasi-all-solid-state cell configuration

The battery efficiency of the quasi-all-solid-state cells was evaluated utilizing the Li = 7.0 and the Li = 6.6 garnet strong electrolytes. The quasi-all-solid-state coin cell contains a LiNi1/3Co1/3Mn1/3O2-based constructive electrode (NCM111) wetter with a non-aqueous ionic liquid-based electrolyte resolution (i.e., 2 M Lithium bis(fluorosulfonyl)imide (LiFSI) in N-methyl-N-propylpyrrolidinium bis(fluorosulfonyl)imide (Pyr13FSI)) and the SE in direct contact with a lithium metallic detrimental electrode.

The cost–discharge profiles of the Li metallic coin cells containing the Li = 7.0 and Li = 6.6 garnet-type SEs and examined at 60 °C have been illustrated in Fig. 5a and Supplementary Fig. 20, respectively. In case of the Li = 6.6 garnet, the preliminary discharge capability was 3.0 mAh/cm2 at a present density of 0.8 mA/cm2 (Supplementary Fig. 20), which was barely greater than that of the Li = 7.0 garnet (2.92 mAh/cm2 in Fig. 5a). This may be defined by the low overpotential originating from the comparatively excessive ionic conductivity of the Li = 6.6 garnet (Supplementary Fig. 10b) in comparison with that of the Li = 7.0 garnet, as noticed in the course of the Li||Li symmetric cell measurements (Fig. 4d, e). In distinction to the results of the symmetric cell take a look at, the short-circuit occurred within the Li = 6.6 garnet after just a few cycles even at a low present density of 0.4 mA/cm2 (Supplementary Fig. 20). Thereafter, we repeatedly carried out the cell cycle take a look at for the Li = 6.6 garnet at varied present densities. The outcomes revealed the prevalence of the short-circuit in all cells beneath equivalent experimental situations. The experimental discrepancy concerning the short-circuit formation noticed within the Li = 6.6 garnet could possibly be defined primarily based on the low present density and the restricted quantity of lithium taking part within the electrochemical response used within the Li||Li symmetric cell take a look at. Within the symmetric cell, a restricted quantity of lithium was used at a low present density of 0.2 mA/cm2 for 30 min comparable to a capability of 0.1 mAh/cm2 (Fig. 4e). Nevertheless, a capability of ~3.0 mAh/cm2 was used with a excessive present density of 0.8 mA/cm2 within the cell analysis (Supplementary Fig. 20). Subsequently, the comparatively excessive present situation and enormous quantities of repeated lithium plating/stripping within the half-cell experiments might speed up the dendrite formation on the interface between the electrolyte and electrode. Then again, we empirically discovered that important present density (CCD) values within the case of Li||Li symmetric cells tended to be underestimated, in comparison with these of the half-cell experiments. The CCD values are ruled by extra sophisticated components within the Li||Li symmetric cell configuration than within the uneven half-cell configuration, as a result of lithium plating/stripping processes inflicting morphological transformation comparable to nucleation of lithium metallic and its void formation, which influences the rise in interfacial resistance, happen concurrently on either side of the strong electrolyte. As well as, the presence of the resistive MRI layer noticed just for the Li = 6.6 garnet could result in early formation of short-circuits. The correlation between MRI layer and the untimely short-circuit formation noticed within the Li = 6.6 garnet stays a problem to be elucidated.

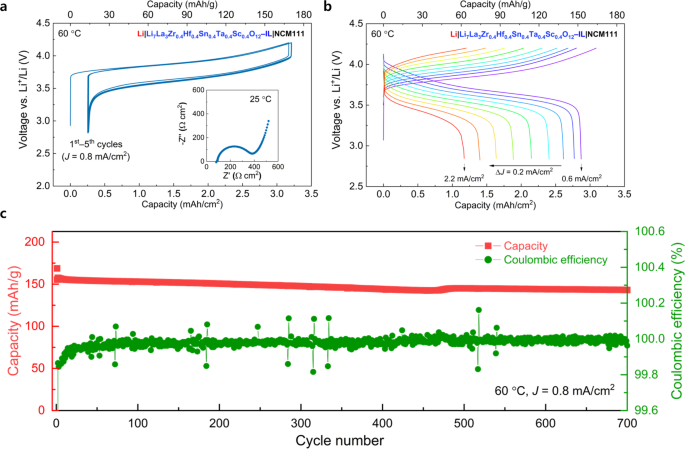

Fig. 5: Battery efficiency of the quasi-all-solid-state Li||NCM111 cells comprising Li7La3Zr0.4Hf0.4Sn0.4Sc0.4Ta0.4O12 as strong electrolyte.
figure 5

a Electrochemical profile of solid-state batteries at 60 °C with a present density (J) of 0.8 mA/cm2 from first to fifth cycles. Inset is the Nyquist plot of the cell at 25 °C earlier than biking. b Cost/discharge voltage profile with present density (J) growing from 0.6 to 2.2 mA/cm2 (∆J = 0.2 mA/cm2) at 60 °C. c Lengthy-term biking stability efficiency of the quasi-all-solid-state Li||NCM111 cell at 60 °C and 0.8 mA/cm2.

The cost–discharge profile of the cell comprising the Li = 7.0 garnet SE was obtained by making use of a present density of 0.8 mA/cm2 (~42.5 mA/g) inside 2.85–4.2 V vs. Li+/Li at 60 °C, as illustrated in Fig. 5a. Within the first cycle, the cell exhibited an preliminary discharge capability of 155 mAh/g comparable to 2.92 mAh/cm2 and 92% Coulombic effectivity. Moreover, we measured the speed efficiency of the Li = 7.0 garnet by growing the present density from 0.6 to 2.2 mA/cm2 at an interval of 0.2 mA/cm2 (Fig. 5b). At a excessive present density of two.2 mA/cm2, an areal capability of 1.17 mAh/cm2 was obtained, which corresponds to 40% of the capability worth at a low present density of 0.8 mA/cm2. After the preliminary biking, the cell demonstrated secure cycle efficiency and maintained a excessive capability over 143 mAh/g (~2.69 mAh/cm2) till 700 cycles with 92% of capability retention (Fig. 5c), distinction to that of the Li = 6.6 garnet. The secure biking efficiency was a consequence of the discount stability of the garnet in opposition to the lithium metallic that kinetically hinders the rise in interfacial resistance, as confirmed from Fig. 4c.

As well as, we utilized a floor modification to the Li = 7.0 garnet to maximise its electrochemical conduct and enhance the Li||NCM111 cell performances. The floor therapy of the strong electrolyte pellet utilizing acid therapy (1 M HCl for 30 min) was carried out as following causes: (1) Removing of residual Li2CO3 layers in a few-nanometer-scale noticed from XPS and sXAS measurements (Supplementary Fig. 2). (2) Enhance of floor roughness to enlarge the contact space with the lithium metallic anode. (3) Floor chemical modification for inhibiting the formation of by-products. The acid-treatment can be recognized for an efficient method in considerably decreasing their interfacial resistance by eradicating the impurities in addition to growing the energetic floor space and modifying the composition of the floor3,44. No vital modifications in ionic conductivity or the ratio between a number of dopants on the Zr website was noticed after acid therapy (Supplementary Fig. 21). As depicted in Supplementary Fig. 22, the preliminary discharge capability elevated to three.17 mAh/cm2 in comparison with that earlier than the acid-treatment at a present density of 0.8 mA/cm2, and a excessive areal capability of two.45 mAh/cm2 was obtained at a excessive charge of three.0 mA/cm2. Furthermore, a discharge capability retention of 86% after 800 cycles at 3.0 mA/cm2 and 60 °C was noticed (Supplementary Fig. 23). As well as, we demonstrated that the cycle life could possibly be additional elevated (i.e., discharge capability retention of 86% after 2000 cycles at 3 mA/cm2 and 60 °C) on the expense of the preliminary reversible capability to 1.66 mAh/cm2 by decreasing the publicity time of the acid, as proven in Supplementary Fig. 24. The reversible capability decreased with a low energetic floor space between the electrolyte and electrode because the acid therapy time decreased. Thus, the development of the cycle life was probably attributable to the lowered irregular floor injury owing to the isotropic attribute of chemical moist etching, which urged that exact floor engineering forming a secure interface is important for bettering the electrochemical efficiency, particularly when utilizing a skinny strong electrolyte.

In abstract, we demonstrated the entropy-driven cubic part stabilization in garnet-type strong electrolyte (Li7La3Zr2O12) by incorporating 5 dopants within the Zr website. The dopants have been chosen by comprehensively contemplating their defect formation vitality, website choice, and valence state. Based mostly on XRD, ND, and ICP measurements and analyses, we revealed that the multicomponent high-entropy garnet can stabilize the cubic part at ambient temperatures at a continuing lithium content material of seven.0, not like typical vacancy-driven cubic-phase garnet compounds with Li ≤ 6.6. Moreover, we detected that the nucleation of the entropy-driven cubic part initiates at a low temperature of 400 °C, indicating the potential for low-temperature synthesis. For the garnet system, these high-entropy results such because the stabilization of the high-temperature part and discount of the part formation temperature have been probably attributable to the inhabitants of varied microstates affecting the digital or digital configurational contributions within the whole entropy somewhat than the phonon vibrational and configurational entropy noticed within the widespread high-entropy alloy techniques, and thus, additional in-depth examine is required. Moreover, the entropy-driven cubic-phase garnet displayed wonderful discount stability in opposition to lithium metallic in comparison with the garnet with comparatively low lithium contents within the kinetic facet, and the excessive lithium quantity was maintained with out transiting to the tetragonal part. Extra importantly, the discount stability and the rise in interfacial resistance have been comparatively ignored compared to the majority ionic conductivity of strong electrolytes, as a result of the general resistance is primarily decided by the low bulk ionic conductivity of most strong electrolytes and the comparatively giant thickness/space ratio in most cell geometries. Nevertheless, skinny strong electrolyte with thickness ≤100 μm needs to be required contemplating the vitality density, and the proportion of interfacial resistance within the whole resistance turns into extra vital in such circumstances. By way of the lithium chemical potential within the garnet system, we confirmed that the discount stability was improved by growing the lithium chemical potential, which shaped a secure interface and inhibited the formation of ODI layers. This commentary gives clues to the correlation between the formation of ODI layer and dendrite nucleation for future analysis. Moreover, the high-entropy garnet can present a platform to additional perceive the basic parameters governing the lithium ionic conductivity and their correlation in a lithium-stuffed setting by permitting entry to a cubic-phase garnet with Li > 6.6 composition, which is at present difficult to experimentally reveal owing to the part instability of the cubic part. Total, the present examine means that the technique to extend entropy by introducing a number of dopants in a crystallographically equal website may be utilized to advanced techniques comparable to a garnet strong electrolyte, and this aids in additional understanding the fabric properties together with the invention of novel supplies manifesting surprising traits.
