Twin-signal readout paper-based wearable biosensor with a 3D origami construction for multiplexed analyte detection in sweat

Precept of response

Sweat entered the colorimetric sensing space and the electrode layer, and the response ensued. The mechanism is proven in Fig. 1. The sensors for glucose, lactate, and uric acid (Fig. 1a, b) had been depending on the corresponding oxidase/horseradish peroxidase (HRP) cascade response. The measured indicators in sweat generated hydrogen peroxide (H2O2) beneath the catalysis of HRP. H2O2 oxidized 3,3’,5,5’-tetramethylbenzidine (TMB) and produced blue TMBox. The pH sensors (Fig. 1c) used pH indicators (litmus and bromophenol blue) that responded to adjustments in pH values starting from 3 to eight by altering shade from yellow to purple. For sensors of the magnesium ion (Fig. 1d), a chromium black T indicator was used to work together with magnesium and alter shade from blue to purple. The cortisol electrochemical sensor (Fig. 1e) relied on the selective binding of cortisol to polypyrrole (PPy), thereby blocking electron switch from the embedded Prussian blue (PB) redox probe. The binding of cortisol and PPy was decided by the cortisol focus in sweat to permit the quantitative evaluation of cortisol.

Fig. 1
figure 1

Response rules of the six biomarkers in sweat. a Glucose, lactate and uric acid sensors reply to the oxidase/HRP cascade response. b Coloration change of the glucose, lactate and uric acid sensors at completely different concentrations. c pH sensor utilizing a pH indicator (bromophenol blue for instance). d Magnesium ion sensor primarily based on EBT. e Schematic diagram of the MIP-based cortisol sensing sensor

Optimization and characterization of sweat chips

The SEM outcomes confirmed that because the period wherein wax was soaked in sweat elevated, wax dams accrued on the floor of the fiber within the cotton thread channels and thickened, as proven in Fig. 5g, h. With the gradual improve within the hydrophobicity of the cotton thread, the time wanted for sweat to circulation via elevated. We used a shiny blue answer to simulate sweat to research the results of threads soaked in wax for various durations on the period of liquid circulation. As proven in Fig. 2a, the top of the thread was mounted within the round paper-based zone of the response. Vibrant blue drops had been added to the response zone at one finish, and their real-time period and technique of circulation had been recorded. The outcomes confirmed that the liquid may go via the thread inside 5 s with out the latter being infiltrated by the wax answer. The tip of the cotton thread was briefly dipped within the wax answer, and the liquid may go via ~25 s after diffusion. The tip of the cotton thread was then dipped within the wax answer till it had been fully infiltrated, and the liquid may then go via in roughly 1 min. Following this, the cotton thread was fully infiltrated by the wax answer such that the liquid didn’t go via it in any respect. Threads with completely different circulation charges may thus be constructed for functions to manage the sequence of the response in every space, based on the response charges of the goal analytes within the 5 areas of colorimetric response, to attain the perfect outcomes.

Fig. 2
figure 2

Impact of paper-based microfluidic channels investigated utilizing a Sensible Blue answer to simulate sweat. a Results of threads soaked in wax for various durations on the period of liquid circulation. b Impact of the hydrophilic channel of the 3D paper-based microfluidic chip

We ready paper-based microfluidic chips through the use of the stamping methodology, which is straightforward, cheap, and quick. The chips had good hydrophobic properties, as wanted, and this was confirmed by contact angle evaluation. To confirm the impact of the hydrophilic channel of the 3D paper-based microfluidic chip, a Sensible Blue answer was added to its assortment layer to look at the mobility of the liquid. 4 chips had been ready, and 10 μL of the Sensible Blue answer was added to them each 15 s. After dripping the answer on them 4, 8, 12, and 16 instances from left to proper, we unfolded the chips to look at the liquid circulation inside. As proven in Fig. 2b, as the quantity of the intense blue answer elevated, the liquid steadily penetrated the gathering layer and entered into the vertical channel, the place it first got here into contact with the electrode. The sweat then entered the horizontal channel, flowed via the thread into the colorimetric sensing layer, and finally entered the unstable sweat layer to build up and evaporate when the quantity of liquid was sufficiently giant. The minimal quantity of liquid required for your entire experiment was 160 μL.

Efficiency of the sweat chip

Pictures of the colorimetric sensor had been acquired by a smartphone, and the depth of the sensor was correlated with adjustments within the R, G, and B values to calculate the focus of the analyte in sweat. The number of the RGB knowledge channel, the setting for pictures, and the optimum response time all influenced the outcomes. As proven in Supplementary Figs. S1–S5a within the ESM, the worth of the R channel higher fitted the change in shade from white to blue attributable to enzymatic reactions and that from blue to purple attributable to the manufacturing of coloured complexes. Due to this fact, we selected values of R for glucose, lactate, uric acid, and magnesium ions to quantify the depth of shade. For synthetic sweat within the vary of pH = 3–8, the (R + G + B)/3 worth supplied a major distinction among the many pH indicators. The smartphone picture system was designed to make sure a darkish setting whereas the flash of the smartphone served as the sunshine supply. Utilizing glucose for instance, the calibration curves of the three had been in contrast beneath pure mild, incandescent mild, and light-weight from the pictures system. The outcomes (Supplementary Figs. S1–S5b) confirmed that the curves obtained utilizing the picture system had the perfect linearity. To find out the optimum response time, synthetic sweat containing 200 μM glucose, 20 mM lactate, 200 μM uric acid, and 5 mM magnesium chloride at pH = 3 was added to the colorimetric paper-based sensor. The intensities of the colours of glucose, uric acid, and pH had been optimum after ~15 min, whereas these of lactate and magnesium had been optimum after ~10 min (Supplementary Figs. S1–S5c). Owing to the quick reactions of lactate and magnesium, extra hydrophobic thread channels had been used for these biomarkers to delay the circulation of sweat into the 2 sensing areas. Sweat flowed preferentially into the unwaxed thread through the reactions of glucose, uric acid, and pH. Thus, the extra hydrophobic the thread used because the channel for lactate and magnesium was, the longer their response instances, and this finally ensured optimum responses that yielded the perfect outcomes for the 5 colorimetric response zones. As well as, when the quantity of sweat was too giant through the experiment, the pH indicator flowed again after finishing the response and interfered with the detection of the opposite markers. We utilized a hydrophobic thread to the pH channel to forestall this from occurring and obtained passable outcomes for the response.

The experimental situations (selection of RGB values, response instances, reagent concentrations, and many others.) had been studied and optimized for every assay goal through the use of synthetic sweat samples, and particulars of the optimization and the outcomes are supplied in Supplementary Figs. S1–S5 within the ESM. The optimization of the concentrations of HRP, oxidase, TMB, and the indicator led to functionalized, modified filter paper. The dependence of the colorimetric indicators on the concentrations of glucose, lactate, uric acid, pH, and magnesium ions beneath optimum situations is proven in Fig. 3. The R2 values of glucose, lactate, uric acid, pH, and magnesium ions had been 0.997, 0.991, 0.995, 0.994, and 0.992, respectively.

Fig. 3
figure 3

Dependence of the analyzed indicators on a glucose; b lactate; c uric acid; d pH; e magnesium ion; and f cortisol. Error bars point out the usual deviation of the three sensors

The MIP electrochemical cortisol sensor allowed quantitative measurement as a result of completely different concentrations of cortisol molecules occupied the MIP cavity and impeded the cost switch of Prussian blue. The regression equation for the vary of concentrations from 1 × 10−9 M to 10 × 10−6 M was obtained by the concurrent methodology, with an R2 of 0.994 for five μL of cortisol added to the modified working electrode (Fig. 3f). In distinction, the curve didn’t change considerably after the dropwise addition of cortisol to the nonimprinted PPy electrode, demonstrating the shortage of a cortisol-binding cavity inside the PPy layer for detecting cortisol. Supplementary Fig. S6d reveals the outcomes of the incubation time optimization for cortisol. When the incubation time was lower than 10 min, cortisol inside the web site was not totally sure. When the incubation time was longer than 10 min, the present response remained largely unchanged. Due to this fact, 10 min was used because the incubation time for cortisol.

As well as, we investigated whether or not there was mutual interference among the many six biomarkers. The responses of glucose, lactate, uric acid and cortisol had been lowest within the corresponding sensor, whereas the responses of pH and magnesium ions had been highest within the corresponding sensor. The outcomes (in Supplementary Figs. S1–3g and S4–6e) confirmed good selectivity with no mutual interference. Because the sweat chips had been disposable, their reproducibility was assessed through the use of 5 sweat chips to measure the identical samples beneath the identical experimental situations. The outcomes (Supplementary Figs. S1–3h, S4–5f, and Supplementary Fig. S6c) confirmed that there was no important distinction within the shade indicators produced by the 5 biomarkers and that the outcomes of the cortisol sensor had been constant as properly.

Assay of human sweat biomarkers

Sweat samples from 5 grownup volunteers in two states had been analyzed to concurrently establish the pH in addition to the 5 biomarkers through the use of the proposed methodology, as proven in Fig. 4a. On this case, sweat from Topic 1 was collected whereas they had been in a traditional strolling state, and that from Topics 2–5 was collected as they had been exercising. Within the case of Topic 1, sweat was measured by fixing the chip to their arm for ~75 min. This sensing interval was very lengthy. The efficiency of the sweat chip was assessed when it comes to measuring the quantities of glucose, uric acid, and magnesium ions within the sweat of the topics primarily based on adjustments of their state earlier than and after that they had eaten (carbohydrates, animal offal excessive in purines, hazelnuts excessive in magnesium, and seafood). As proven in Fig. 4b, d, f, the concentrations of all three biomarkers elevated after the topics had eaten, with a constant development. Nevertheless, owing to the completely different ranges of digestion and metabolism of the topics, the diploma of enchancment in these markers diversified. The concentrations of the biomarkers within the sweat of Topic 1 had been decrease than these within the sweat of the opposite topics, presumably owing to the shortage of train that resulted in decrease metabolism than that of the opposite topics.

Fig. 4
figure 4

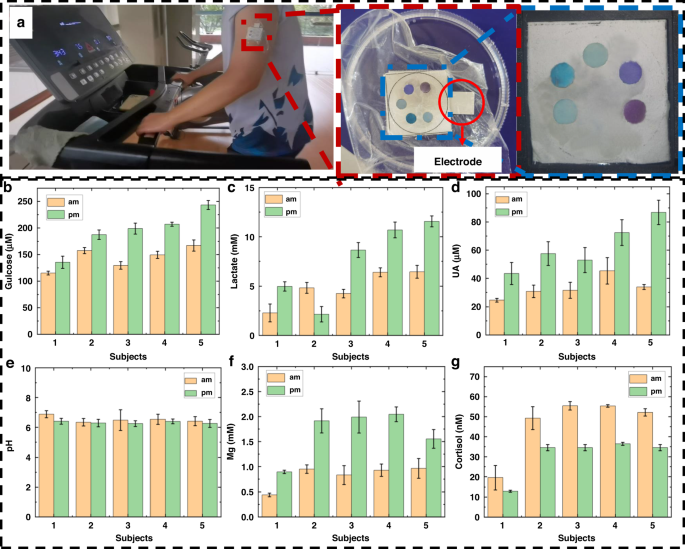

Measurement of sweat biomarker ranges in 5 grownup volunteers utilizing sweat sensors. a Assay of human sweat biomarkers. b Glucose; c lactate; d uric acid; e pH; f magnesium ion; g cortisol. Check topics had been advised to carry out low-intensity train (treadmill, 5 km/h) at 9 am on an empty abdomen. At 6 pm, one hour after consuming (carbohydrates, animal offal, hazelnuts, and many others.), they carried out high-intensity train (treadmill, 8 km/h). Check Topic 1 didn’t train, and resting sweat was collected. Error bars point out the usual deviation of the three sensors

The efficiency of the lactate sensor was assessed primarily based on the depth of the train carried out by the topics. Topic 1 had a decrease resting lactate degree (their R worth elevated) than that produced by train, demonstrating that train produces lactate. The opposite volunteers ran on a treadmill at 5 km/h at 9 am and eight–9 km/h at 6 pm. With the rise within the depth of train, the lactate focus elevated to various levels (the R worth decreased). Topic 2 had a excessive lactate focus after train as a result of that they had a sweaty physique sort. The colorimetric sensor turned yellow, indicating a rise within the R worth.

The efficiency of the cortisol sensor was assessed by monitoring adjustments within the cortisol ranges of the topics within the morning and the afternoon. Determine 4g reveals the indicators obtained from all 5 topics. They had been larger within the afternoon than within the morning. The cortisol ranges within the sweat of all topics decreased persistently, demonstrating a excessive cortisol focus within the morning and a low focus within the afternoon. As cortisol ranges are associated to the extent of stress, the extent of cortisol decline diversified among the many topics. As well as, train additionally led to a rise in cortisol content material, and thus, the resting topic had decrease cortisol ranges than the opposite topics.
