Fabrication of antibiotic-loaded nanofibers
Pullulan was kindly offered by HAYASHIBARA CO., LTD (Japan). Water was purified utilizing a Milli-QPlus 185 water purification system (Millipore, Bedford, MA) with resistivity increased than 18 MΩ·cm. Streptomycin customary disks (25 µg per disk) had been bought from Oxoid, Denmark. Hexamethyldisilazane (HMDS) was obtained from Merck (Germany). Streptomycin, Gentamycin, Trehalose, and RSM (skim milk powder) had been bought from Sigma-Aldrich, Denmark.
Streptomycin was loaded into pullulan electrospun nanofibers with last concentrations of 1 and 10% respectively (w/w; weight of streptomycin to the load of polymer). For encapsulation of streptomycin in Pullulan, streptomycin powder was first dissolved in water, after which pullulan powder was added to the answer to realize the specified focus. For making 1% or 10% streptomycin to Pullulan constructs (w/w), first, a streptomycin answer of 0.2% or 2% (w/v) in water was made underneath slight stirring at 25 ℃ for 4 h. Then pullulan powder was added to make a 20% answer (w/v) of Pullulan in water and was stirred in a single day at room temperature. As an illustration, for fabrication of a 1% (w/w) streptomycin: pullulan nanofiber sheet, streptomycin was dissolved in water (conc. 2 mg/mL) underneath slight stirring at 25 ℃ for 4 h. Then pullulan powder (0.2 g) was added to the 1 mL answer to make the specified last focus of 20% pullulan in water for optimum electrospinning. Lastly, the answer was sterile-filtered by means of a 25 mm filter (Sigma Aldrich) and used for electrospinning.
For electrospinning, a custom-made typical electrospinning system together with a excessive voltage supply (Glassman, FJ50P2.4-F22), a syringe pump (Aladdin, AL-1000) related to a syringe with a 21 G hypodermic needle, and a static collector was used. The optimized spinning parameters had been set to a feeding charge of 1 mL/h, a voltage of 14–16 kV, a needle tip-to-collector distance of 15 cm, a humidity of 35%, and a temperature of 25 °C. The electrospinning chamber together with the pump and the collector was disinfected by EtOH 70% earlier than beginning every electrospinning process.
In vitro antibacterial exercise assay
To analyze whether or not the antimicrobial exercise efficacy of streptomycin stays after the electrospinning, we carried out a disk-diffusion assay by the Kirby–Bauer methodology35. The antibacterial exercise of the streptomycin loaded into nanofiber sheets was analyzed in opposition to Gram-negative (Escherichia coli (E. coli) MG1655 subst. K12 (ATCC 47076)) and Gram-positive (Staphylococcus aureus (S. aureus) (ATCC 2928)) streptomycin delicate micro organism. The E. coli and S. aureus strains had been grown in a single day in Luria Bertani plates (LB) at 37 °C. An inoculum for every pattern was ready and the turbidity of the suspension was adjusted in a densitometer (Sensititre–Nephelometer, Thermo Fisher, Denmark) compared with the 0.5 McFarland customary. Then, 100 microliters of the inoculum had been unfold on Mueller–Hinton agar plates. The electrospun sheets containing 10 µg and 100 µg (from 1 and 10% w/w streptomycin:pullulan nanofibers) had been reduce with a biopsy punch of 6 mm, then positioned alongside the usual Streptomycin disks of the identical diameter (25 µg) (Oxoid, Denmark) as a management. Non-streptomycin-loaded electrospun sheets (pullulan nanofibers) had been included as destructive controls. Samples had been incubated at 35 °C for 16–18 h. The diameter of the inhibition zone was measured and in contrast with breaking level values offered by the EUCAST tips (https://www.eucast.org/fileadmin/src/media/PDFs/EUCAST_files/Breakpoint_tables/v_11.0_Breakpoint_Tables.pdf).
Antibiotic-loaded nanofibers for in vivo examine
To dose rats with antibiotic-loaded nanofibers, the electrospun sheets of 10% streptomycin:pullulan had been reduce manually to make sq. particles of round 1 mm in size. Then, hard-shelled gelatine capsules (Torpac dimension 9) had been coated in a 12% (w/v) answer of Eudragit L100 in IPA the place dibutyl sebacate was added as a plasticizer in a 5% w/w ratio relative to Eudragit. Lastly, capsules had been stuffed with 12 mg of particles (equal to 1.2 mg streptomycin per capsule) earlier than dosing to the rats.
Animal experiment
To search out out whether or not the nanofiber electrospun sheet loaded with streptomycin affected the institution of streptomycin-resistant micro organism within the gut, we carried out a rat examine involving oral inoculation of the animals with the streptomycin-resistant mCherry-labelled E. coli MG1655 subst. K12, Taxon Identifier 511145 (https://www.uniprot.org/uniprot/A0A4D6FVK6) in affiliation with streptomycin delivered both as encapsulated nanofibers, within the ingesting water or with out streptomycin as management (Fig. 7). The fluorescence-labeled pressure was chosen to permit simple verification by microscopy.

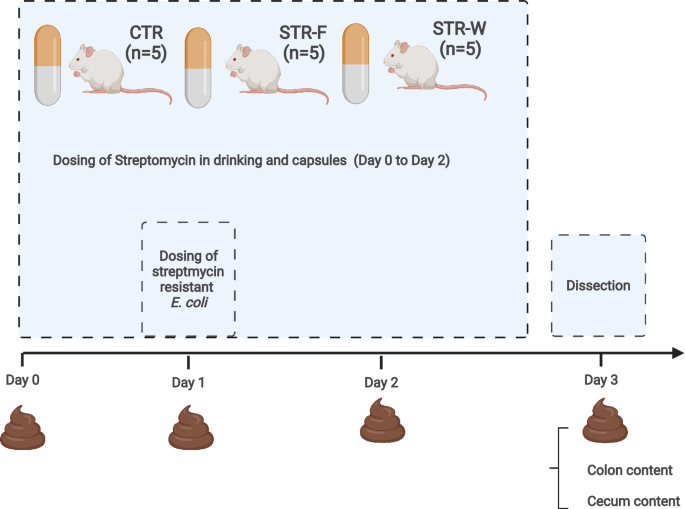

Research define. Schematic illustration of the in vivo examine, representing CTR (management), which obtained a placebo hard-shelled gelatine capsule, STR-F (streptomycin-loaded nanofibers), which obtained a capsule coated with Eudragit 100S and loaded with antibiotic-loaded pullulan particles two instances per day, and STR-W (streptomycin within the ingesting water) obtained a placebo hard-shelled gelatine capsule and Streptomycin within the ingesting water (0.25 g/L). All teams obtained a single dose of 108 CFU of streptomycin-resistant Escherichia coli. Determine was created in BioRender by the authors.
Fifteen male 8-weeks-old Sprague–Dawley rats (Charles River) had been allotted to a few teams of 5 and housed individually in scantainers (Scanbur). After an acclimatization interval of seven days, the animals had been handled with streptomycin both in ingesting water (STR-W), inside particles of electrospun nanofibers (STR-F), or didn’t obtain any antimicrobial drug (CTR). The CTR rats obtained a placebo hard-shelled gelatine capsule, STR-F rats obtained a hard-shelled gelatine capsule stuffed with antibiotic-loaded pullulan particles as described above twice a day for 3 days (Day 0, 1 and a pair of), whereas the STR-W rats obtained an empty placebo hard-shelled gelatine capsule and Streptomycin within the ingesting water (0.25 g/L) for a similar three days (Fig. 7). We aimed toward a focus in ingesting water, which might make the whole consumption of streptomycin by the STR-W rats match the roughly 7 mg given to the STR-F rats contemplating that the typical water consumption was between ca. 30–50 mL of water/animal/day. For this examine, the streptomycin- and gentamycin-resistant E. coli had been incubated on LB agar (SSI Diagnostica A/S) for 16 h, as described earlier. A colony was transferred to LB broth supplemented with 20 µg/mL gentamycin and 100 µg/mL streptomycin in a single day/16 h at 37 °C whereas shaking. The tradition was centrifuged at 5000×g for 10 min, washed and resuspended in sterile phosphate-buffered saline (PBS) to a cell density of 109 CFU/mL. Twenty-four hours after the onset of streptomycin remedy, all teams obtained a single dose of roughly 108 CFU of the pressure. Animals had been fed and obtained water advert libitum all through the entire experiment.
Enumeration of resistant E. coli within the rat intestine
Fecal samples (roughly 1 g) had been collected earlier than inoculation and 24 h, 48 h, and 72 h after inoculation. After 72 h, animals had been euthanized by CO2 asphyxiation adopted by decapitation. Rats had been dissected and luminal contents had been aseptically collected from the distal ileum, cecum, and colon areas. The contents from these sections had been weighed and homogenized. Tenfold dilutions had been unfold on LB agar plates supplemented with streptomycin (100 µg/mL) or gentamycin (25 µg/mL) (Sigma-Aldrich, Denmark), as acceptable. CFU counts had been assessed after 24–72 h incubation at 37 °C underneath anaerobic situations. Random colonies had been analysed by mass spectrometry utilizing Bruker Reflex™ III MALDI-TOF (Bruker‐Daltonik, Germany) to make sure that the isolates corresponded to E. coli Okay-12 MG1655.
ELISA assay
To estimate the amount of drug launched within the intestinal lumen, an ELISA assay was carried out to confirm the focus of streptomycin current in fecal content material. Fecal pellets from the ileum, cecum, and colon had been analyzed. Samples had been homogenized and diluted, and the process was carried out in line with the SM Streptomycin ELISA package (Elabscience, USA) (Catalog # E-FS-E031) producer directions. The optical density (OD) was measured utilizing a microplate reader Biotek EL800 (Agilent, DK), set at 450 nm and 630 nm. Information had been processed utilizing GraphPad Prism Software program 8.1.1.
DNA extraction, sequencing, and bioinformatics
DNA extraction, library preparation, and subsequent sequencing on the Ion Torrent platform had been carried out as beforehand described36. Briefly, samples consisted of fecal samples at 72 h (n = 15), samples from ileum (n = 15) and samples from colon (n = 15). Microbial DNA was extracted utilizing ~ 0.2 g of supplies with the DNeasy® PowerLyzer® PowerSoil® isolation package from Qiagen. The extracted DNA was saved at − 20 °C earlier than use.
Amplification of the V3-region of the 16S rRNA gene was carried out as follows: PCR mastermix consisted of 0.2 µL Phusion Excessive-Constancy DNA polymerase (ThermoFisher Scientific F-553L), 4 µL HF buffer, 0.4 µL dNTP (10 mM of every base), 1 µM ahead primer (PBU; 5ʹA-adapter-TCAG-barcode-CCTACGGGAGGCAGCAG-3ʹ) and 1 µM reverse primer (PBR; 5ʹ-trP1-adapter-ATTACCGCGGCTGCTGG-3ʹ) and 5 ng group fecal DNA in 20 µL whole response quantity. Each primers (TAG Copenhagen A/S) had been linked to sequencing adaptors and the ahead primer moreover contained a singular 10 bp barcode (Ion Xpress™ Barcode Adapters) for every pattern. The PCR program consisted of preliminary denaturation for 30 s at 98 °C, adopted by 24 cycles of 98 °C for 15 s and 72 °C for 30 s, and lastly, 72 °C for five min to permit last extension earlier than cooling to 4 °C. No-template controls had been included for every PCR run, all leading to lower than 0.05 ng/µL. The PCR merchandise had been purified utilizing HighPrepTM PCR Magnetic Beads (MAGBIO®, AC-60005) with a 96-well magnet stand (MAGBIO®, MyMag 96), in line with the producer suggestion. DNA amount was measured utilizing Qubit® dsDNA HS assay (InvitrogenTM, Q32851) and sequenced on chip utilizing the Ion OneTouchTM and Ion PGM techniques with a 318-Chip v2 incorporating the Hello-Q chemistry in 200 bp runs.
Uncooked sequences had been demultiplexed with barcodes and primers eliminated utilizing QIIME237. The obtained sequences had been additional filtered to vary from 125 to 180 bp. These pre-processed reads had been analyzed with the DADA2 pipeline in R38, utilizing the parameters really useful for Ion Torrent. The obtained amplicon sequence variants (ASVs) had been thereafter taxonomically annotated utilizing the Ribosomal Database Challenge (RDP) database (launch 11.5).
Statistics and reproducibility
Statistical evaluation was carried out with QIIME2, R, and GraphPad Prism Software program 8.1.1. Samples had been rarefied to a good depth of reads earlier than calculating richness. CFU counts, streptomycin focus, microbial richness, and taxa abundances had been in contrast with a two-sided permutational check. ASVs (Amplicon sequencing variant) with lower than 0.01% relative abundances had been eliminated earlier than additional evaluation. Beta range was assessed primarily based on the Bray–Curtis distance matrix and in contrast with the permutational multivariate evaluation of variance (PERMANOVA). The taxonomic composition proven with timber was generated with R-package “metacoder”39. The importance degree was set at 0.5. Comparability of ELISA-assessed streptomycin ranges in ceca of STR-F and STR-W animals was finished by t-test assuming equal variances.
Animal moral assertion
Danish Animal Experiments Inspectorate accepted the animal trial underneath license quantity 2020-15-0201-00484. The experiment protocol was pre-registered by DTU’s BioFacility. Animals had been monitored each day through the experiment, and the experiment was carried out in accordance with Danish nationwide tips and overseen by the Institute’s Animal Welfare Committee for animal care and use. Strategies are reported in accordance with ARRIVE tips.
