Selective formation of acetate intermediate prolongs strong ethylene removing at 0 °C for 15 days

Construction analyses of catalysts

We deposited Au-Pt alloy on ZHM20 with a complete metallic loading quantity ca. 1 wt% by way of a sol immobilization technique (see experimental particulars in “Strategies”). We additionally ready Au/ZHM20 and Pt/ZHM20 as controls (Supplementary Figs. 1 and a couple of). We outlined the as-prepared Au-Pt as Au54Pt46 (molar ratio) based mostly on the inductively coupled plasma atomic emission spectrometry (ICP-AES) outcomes (Supplementary Desk 1). We revealed the formation of bimetallic alloy of Au-Pt/ZHM20 in line with the HAADF-STEM picture and corresponding elemental mappings (Fig. 2a–d), exhibiting the nicely dispersed Au and Pt components in NPs. Within the XRD sample of Au54Pt46/ZHM20 (Supplementary Fig. 2), we noticed no diffraction peaks ascribed to Au(111) or Pt(111) however a broad peak centered at 38.8°, suggesting the formation of Au-Pt alloy. We additional calculated floor areas of Au54Pt46/ZHM20 along with different two controls and naked assist ZHM20 (calcined at 500 °C) to be from 766 m2 g−1 to 835 m2 g−1 by nitrogen adsorption and desorption isotherms (Supplementary Fig. 3 and Supplementary Desk 2). We discovered that each Au54Pt46/ZHM20 and naked assist ZHM20 have sturdy Brønsted acidity by NH3-TPD (Supplementary Fig. 4) and FT-IR of pyridine adsorption (Supplementary Fig. 5), which might favor the C2H4 adsorption10,11,12. Because the interior pore measurement of ZHM20 is barely 0.58 nm (Supplementary Desk 2), a lot smaller than the sizes of metallic nanoparticles, we thus conclude that the metallic particles are deposited on the outside floor of the assist. We additionally famous that the massive particle measurement of Au was noticed in Au/ZHM20 catalyst than Au-Pt alloy NPs in Au54Pt46/ZHM20, which might be because of the truth that the sol immobilization technique that is likely to be unsuitable to deposit Au NPs in comparison with Pt and Au-Pt alloys. Nevertheless, in an effort to evaluate the efficiency of those catalysts, we used the identical preparation course of on this work.

Fig. 2: Construction analyses of Au54Pt46/ZHM20.
figure 2

a HAADF-STEM picture, bd corresponding elemental mappings, e Au L3-edge and f Pt L3-edge XANES spectra (Insets present magnifications across the white traces) of Au54Pt46/ZHM20. Models arbitrary models.

To in-depth examine the digital states of Au54Pt46/ZHM20, we performed XAFS measurements, with the 2 controls and Au and Pt foils as references, by amassing Au L3-edge (Fig. 2e) and Pt L3-edge (Fig. 2f) XANES spectra. We famous that the shapes and absorption edge energies of the spectra of Au54Pt46/ZHM20 are near these of references, suggesting that the Au54Pt46 is metallic. We magnified the graphs as insets to match the white line intensities. We seen a decrease white line depth of Au54Pt46/ZHM20 at 11921 eV in Au L3-edge, and a better white line depth at 11562 eV in Pt L3-edge. This reverse pattern of white line intensities signifies that the cost switch from Pt to Au occurred after alloying, forming the electron-rich Au species and electron-deficient Pt within the Au54Pt46 NPs14,22,23,24. The addition of Au into Pt might result in enticing interplay between Pt and ethylidyne species21, which can facilitate the catalytic conversion of C2H4.

C2H4 removing efficiency of Au54Pt46/ZHM20

We carried out C2H4 removing exams at 0 °C managed by utilizing an ice tub beneath 50 ppm C2H4/20percentO2/N2 with a complete circulation price of 10 mL min−1 (see particulars in “Strategies”). We famous a U-shaped C2H4 removing effectivity curve with a turning level at ca. 3.5 h on Au54Pt46/ZHM20 catalyst as proven in Fig. 3a. This U-shaped curve could possibly be originated from the overlap of two curves: one is the C2H4 adsorption curve (just like the black curve of the naked ZHM20 assist in Fig. 3a) and the opposite is the C2H4 catalytic changing curve. We seen that the catalyst might have to adsorb a minimal quantity of C2H4 earlier than the response is initiated. It’s because the assist comprises ample acid websites, particularly Brønsted acid websites that will extra favor the C2H4 adsorption than Au-Pt alloys. Due to this fact, the catalytic response for selectively changing C2H4 couldn’t be began owing to the dearth of C2H4 reactant on Au-Pt alloy catalysts, since most of C2H4 molecules can be trapped by the ZHM20 assist within the preliminary stage. Within the regular state after 3.5 h, this catalyst presents a excessive C2H4 removing effectivity (>80%) for at the very least 40 h. This response interval is the primary demonstration of long-term and environment friendly C2H4 removing, which is greater than 30 occasions greater than the most effective catalysts operated at 0 °C within the literatures (Fig. 3b and Supplementary Desk 3)4,6,10,12,25,26. We calculated the C2H4 removing price on Au54Pt46/ZHM20 within the regular state at 0 °C to be 120 mL(ethylene)/kg h, which is ~5× greater than the reported commercially used Pt/SBA-15 (25 mL(ethylene)/kg × h)7. This price can also be a lot greater than that of C2H4 generated by fruits, comparable to apple (0.28 mL(ethylene)/kg h) in line with the semi-practical situations for the preservation of perishables27, proving the promising software risk.

Fig. 3: C2H4 removing efficiency.
figure 3

a C2H4 removing efficiencies with time-on-stream over ZHM20 and Au54Pt46/ZHM20 at 0 °C or 25 °C (response situation: 50 ppm C2H4, 20% O2 and N2 stability; catalyst, 0.2 g; area velocity, 3000 mL h−1 g−1). b C2H4 removing effectivity and stability over Au54Pt46/ZHM20 as compared with latest stories4,6,10,12,25,26. c Time programs for C2H4 removing over Au54Pt46/ZHM20 at 0 °C. Warmth therapy was performed at 450 °C for two h beneath N2 circulation (50 mL min−1). d Schematic diagram of the deactivation and restoration processes of Au54Pt46/ZHM20.

We continued to look at the C2H4 removing stability at 0 °C of Au54Pt46/ZHM20 (Fig. 3c). We took so long as 15 days (360 h) that the removing effectivity step by step decreased from 80% to 0% for steady eradicating C2H4 with a complete eliminated amount of 4.4 mL. We recovered the superb removing effectivity (>80%) of the spent Au54Pt46/ZHM20 through warmth therapy at 450 °C for two h beneath N2 circulation. We then demonstrated the re-treated Au54Pt46/ZHM20 exhibiting strong C2H4 removing effectivity at 0 °C for the opposite 15 days, similar because the contemporary one. Even after the second-run warmth therapy of the spent Au54Pt46/ZHM20, the preliminary removing effectivity recovered to 100% and was maintained at >75% within the regular state for 40 h. We thus suggest the doable deactivation and restoration processes of Au54Pt46/ZHM20 as illustrated in Fig. 3d. In particulars, the on-site fashioned solid-like IMs (comparable to AcOH at 0 °C) will regularly accumulate on floor and canopy the energetic websites of the catalysts, resulting in the step by step decreased C2H4 removing effectivity. After the energetic websites are totally coated, the catalysts will lose the exercise for eliminating C2H4. The warmth therapy of the used catalysts will clear the IMs gathered on floor and thus the preliminary removing effectivity will likely be recovered. Though the warmth therapy will make it troublesome to include the catalyst into meals packaging supplies, we count on the utilization of this catalyst in a box-like machine with air circulation system, which can find within the area for cold-chain storage and transportation.

Once we elevated the response temperature to 25 °C, we discovered a fast deactivation on Au54Pt46/ZHM20—from 100% to 0% of C2H4 removing effectivity—inside 5 h for the response (Fig. 3a), which is opposite conduct in comparison with that at 0 °C. We subsequently performed operando time-dependent diffuse reflectance infrared Fourier remodel (DRIFT) spectroscopy measurement (Fig. 4a) beneath the situations of 25percentC2H4/20percentO2/N2 with a circulation price of 100 mL min−1 at 0 °C. DRIFT spectra of the C2H4 removing course of on Au54Pt46/ZHM20 are proven in Fig. 4b. The infrared spectrum of gas-phase C2H4 is supplied as background, and the bands for C2H4 find in three areas: 3200–2900 cm−1, 1900–1800 cm−1, and 1500–1400 cm−128,29. The underside darkish grey line is the infrared spectrum beneath a mix circulation of C2H4/O2/N2 at 0 °C. To rule out the doable overlap between the bands of IM merchandise and the gas-phase C2H4 peaks, we stopped C2H4 circulation after 30 min and continued flowing the combination of O2/N2. The absorption bands at  = 1532 cm−1 on Au54Pt46/ZHM20 correspond to the antisymmetrical stretching vibration of floor carboxylates, an acetate-based IM comparable to AcOH30,31. The absorption bands centered at  = 1685 cm−1 assigned to C=O stretching32,33 additionally counsel the doable existence of AcOH. Whereas the broad bands round (mathop{nu }limits^{sim })  = 1650 cm−1 could possibly be assigned to the adsorbed H2O34. We should always word that the depth of those bands for AcOH enhanced whereas these for C2H4 decreased with growing time, indicating the selective oxidation of C2H4 into AcOH on Au54Pt46/ZHM20.

Fig. 4: IMs investigations throughout C2H4 removing.
figure 4

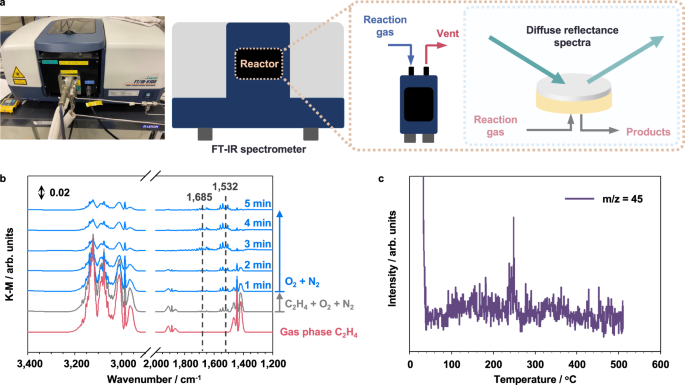

a Schematic diagram of the DRIFT spectroscopy measurement. b DRIFT spectra of C2H4 oxidation over Au54Pt46/ZHM20 at 0 °C. The pattern was pretreated beneath N2 circulation (50 mL min−1) at 250 °C for 1 h. After cooling to 0 °C, the background spectrum was taken beneath N2 circulation. Then a mix of C2H4 (25 mL min−1), O2 (20 mL min−1), and N2 (55 mL min−1) was flowed for 30 min, and the circulation of C2H4 was stopped whereas retaining the circulation of O2 and N2 for five min. c TPD profile of acetic acid of the used Au54Pt46/ZHM20. Response situations: C2H4 oxidation was carried out on Au54Pt46/ZHM20 (0.2 g) at 0 °C for 10 h (81% conversion), after which the used Au54Pt46/ZHM20 (0.1 g) was transferred to measure TPD beneath He circulation (30 mL min−1) from 25 °C to 500 °C at a ramp price of 5 °C min−1. Through the desorption, the mass indicators of doable merchandise have been recorded. Models arbitrary models.

For comparability, we additionally performed the DRIFT measurements on Au/ZHM20 and Pt/ZHM20. For Pt/ZHM20 (Supplementary Fig. 6a), we noticed the intensities of gas-phase C2H4 bands vanished at 3 min after we stopped feeding C2H4; in the meantime, the bands assigned to C=O stretching at 1685 cm−1 appeared at this level. This means the adsorbed C2H4 on Pt/ZHM20 transformed to AcOH intermediate. Nevertheless, the C2H4 removing efficiency of Pt/ZHM20 is barely ~50% (Supplementary Fig. 6b), indicating that the vanished C2H4 on Pt/ZHM20 in DRIFT measurements are owing to the quick desorption in addition to the conversion into AcOH. For Au/ZHM20 (Supplementary Fig. 6c), we discovered that the C2H4 bands remained at preliminary depth whereas negligible indicators for C=O stretching throughout the DRIFT exams after stopping the C2H4 feed. Collectively contemplating the modest C2H4 removing of ~50% of this catalyst (Supplementary Fig. 6d), we reasoned that the C2H4 can be strongly adsorbed on Au/ZHM20 however onerous to transform into AcOH. Primarily based on these outcomes, we thus suggest that the superb efficiency of Au54Pt46/ZHM20 for eradicating C2H4 at 0 °C could possibly be as a result of appropriate C2H4 adsorption potential and excessive catalytic exercise of C2H4-to-AcOH conversion.

We additionally carried out the temperature-programmed desorption (TPD) geared up with on-line mass to detect the doable IMs or reworked species of C2H4 fashioned on Au54Pt46/ZHM20. We detected AcOH—a pointy peak indicating the desorption of AcOH at ~250 °C within the TPD profile (Fig. 4c)—together with C2H4 (unremoved) and water (Supplementary Fig. 7) within the downstream of the Au54Pt46/ZHM20 after its removing effectivity has reached the regular state at 0 °C for 10 h. Primarily based on the above measurements, we famous, by possessing electron-deficient Pt and electron-rich Au, that Au54Pt46/ZHM20 could also be useful for selectively forming AcOH throughout the C2H4 removing. Due to this fact, once we take into account the solidification temperature of AcOH is 16.6 °C, the AcOH IM can be gathered on the floor of catalysts as a solid-like characteristic on the take a look at temperature of 0 °C, thereby exposing energetic websites that fulfill the long-term and strong C2H4 removing (Fig. 1a). In distinction, at 25 °C, the on-site fashioned AcOH could possibly be a liquid-like IM that might unfold on floor and rapidly cowl all energetic websites, thus deactivating the catalysts (Fig. 1b). We additionally used molecular dynamics (MD) simulations to look at the interface power between AcOH and Au-Pt nanoalloy at totally different temperatures (Supplementary Fig. 8). We discovered that the binding power between AcOH molecules and the catalyst is stronger at a better temperature (interface power of −621.5 kcal/mol at 298 Ok) than that at a decrease temperature (interface power of −585.7 kcal/mol at 100 Ok). The sturdy binding power between AcOH and Au-Pt on the greater temperature would outcome within the AcOH spreading on the catalyst floor, whereas the weak binding power would make AcOH are inclined to agglomerate like strong. It’s price noting that, though the set temperatures in MD simulations are totally different in comparison with actuality, the traits proven right here include the above experimental outcomes.

To rule out the likelihood that the assist might affect the C2H4 removing effectivity, we additionally carried out the reactions at comparable situations utilizing the naked assist ZHM20. As proven in Fig. 3a, the preliminary C2H4 removing effectivity within the first 15 min on ZHM20 is 100%, and it reached the utmost adsorption capability after flowing the feed fuel for 11 h (complete C2H4 adsorption capability of 0.074 mmol g−1). Though ZHM20 is a zeolite with a considerable amount of Brønsted acid websites that could possibly be used for adsorbing C2H4 (3.5 mmol g−1, Supplementary Fig. 9), it could favor adsorbing O2 as an alternative of C2H4 beneath the response situations.

To be able to additional consider the sturdiness of the Au54Pt46/ZHM20 catalyst developed on this work, we saved the catalyst for 2 years and heat-treated it as soon as once more at 450 °C for two h beneath N2 circulation to regenerate the catalyst. We discovered that the conversion effectivity of C2H4 removing can nonetheless obtain 75% (Supplementary Fig. 10), suggesting the superb stability of the catalyst. We additionally investigated the efficiency beneath totally different C2H4 concentrations and circulation charges (Supplementary Figs. 10 and 11). We famous, at a low C2H4 focus of 25 ppm, that the catalyst reveals a delay activation and the same C2H4 removing effectivity in comparison with these of fifty ppm, suggesting the transport limitation beneath the situation of 25 ppm C2H4. Nevertheless, once we elevated the C2H4 focus to 50 ppm or greater 100 ppm, the C2H4 concentrations and circulation charges might have negligible affect on the C2H4 removing exercise of Au54Pt46/ZHM20 catalyst (Supplementary Word 1).

Comparability with controls for C2H4 removing

We ready two extra Au-Pt alloy NPs with totally different molar ratios of Au15Pt85 and Au77Pt23 (Supplementary Desk 1 and Supplementary Figs. 12 and 13) to analyze whether or not the Au and Pt quantities will have an effect on C2H4 removing efficiency. The XRD profiles of three Au-Pt/ZHM20 are proven in Supplementary Fig. 12. The HAADF-STEM photos and measurement distributions of the three Au-Pt/ZHM20 catalysts are proven in Supplementary Fig. 13. The common sizes are 5.8 ± 2.0 nm, 6.5 ± 2.1 nm, and eight.4 ± 2.8 nm for Au15Pt85, Au54Pt46, and Au77Pt23, respectively. The HRTEM photos of the Au-Pt alloy NPs containing clear fringe spacings (Supplementary Fig. 14) show their excessive crystalline characteristic. We additionally detected the basic mappings of the controls (Supplementary Figs. 15 and 16), which reveals that Au and Pt will be homogeneously dispersed in NPs. We seen that the introduction of Au into Au-Pt alloy NPs would enhance the sizes of alloy NPs; nevertheless, all three Au-Pt/ZHM20 samples confirmed comparable floor areas (802–826 m2/g, Supplementary Fig. 17), pore sizes (0.58 nm, Supplementary Fig. 17), and acid quantities (0.96–1.0 mmol/g, Supplementary Fig. 18 and Supplementary Desk 2). Extra Au L3-edge and Pt L3-edge XAFS measurements counsel that each one three Au-Pt/ZHM20 samples possessed electron-deficient Pt and electron-rich Au in nanoalloys (Fig. 5a and b).

Fig. 5: Comparability with controls for C2H4 removing.
figure 5

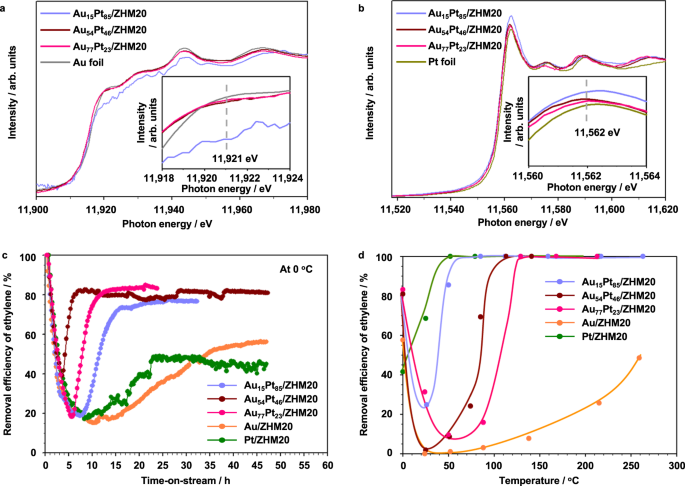

a Au L3-edge and b Pt L3-edge XANES spectra of Au-Pt/ZHM20 and Au foil/Pt foil. c C2H4 removing efficiencies of C2H4 with time-on-stream at 0 °C (Circumstances: 50 ppm C2H4, 20% O2 and N2 stability; catalyst, 0.2 g; area velocity, 3000 mL h−1 g−1. d Temperature dependence of C2H4 removing effectivity over catalysts (Circumstances: 50 ppm C2H4, 20% O2 and N2 stability; catalyst, 0.2 g; area velocity, 3000 mL h−1 g−1). Models arbitrary models.

Determine. 5c exhibits a comparability of C2H4 removing efficiencies at 0 °C over the three Au-Pt/ZHM20 catalysts along with solely Au or Pt loaded ones. Once more, we noticed U-shaped removing curves with comparable removing efficiencies of 77%, 81%, and 83% within the regular state for Au15Pt85/ZHM20, Au54Pt46/ZHM20, and Au77Pt23/ZHM20, respectively. This means that the molar ratios of Au and Pt have negligible affect on the removing effectivity at 0 °C. The excessive C2H4 removing effectivity within the regular state lasted 33 h and 25 h for Au15Pt85/ZHM20 and Au77Pt23/ZHM20, respectively. Collectively contemplating the curve traits of Au/ZHM20 and Pt/ZHM20 controls, we discovered, on the center molar ratio of Au/Pt, that the Au54Pt46 alloy NPs will facilitate the C2H4 removing, whereas greater or decrease Au/Pt ratios present a more in-depth efficiency to Au/ZHM20 or Pt/ZHM20, respectively.

We additionally summarized the regular C2H4 removing efficiency on the above catalysts beneath totally different temperatures (Fig. 5d). After 25 °C, we discovered that catalytic oxidation of C2H4 to CO2 occurred and the effectivity for removing of C2H4 elevated with a rise within the temperature (Supplementary Fig. 19). With a lower within the ratio of Pt within the catalysts, the effectivity for catalytic removing of C2H4 and the corresponding yield of CO2 decreased within the order of Pt/ZHM20 > Au15Pt85/ZHM20 > Au54Pt46/ZHM20 > Au77Pt23/ZHM20 > Au/ZHM20 because the temperature was elevated above room temperature, suggesting that Pt NPs are extra favorable than Au NPs for catalytic conversion of C2H4 to CO2. The assist ZHM20 additionally confirmed catalytic exercise for the conversion of C2H4 to CO2 at temperatures greater than 80 °C and the CO2 yield reached 60% at 260 °C. Though the ZHM20 reveals exercise for C2H4 conversion at excessive temperatures, contemplating that the precise delivery and storage situations of C2H4 launched from fruit and veggies are at low temperatures (0–5 °C), the excessive effectivity, long-term stability, and wonderful restoration options of Au54Pt46/ZHM20 for C2H4 removing at 0 °C could make it a promising materials for additional sensible use. Furthermore, evaluating this catalytic course of with different present options for eliminating C2H4, we seen that a lot of the conventional C2H4 removing strategies have shortcomings. For instance, adsorbents comparable to activated carbon can’t be used for a very long time as a result of restricted adsorption capability; chemical oxidants are poisonous and include potential security hazards throughout long-term use; photocatalytic know-how requires excessive tools prices due to the necessity for ultraviolet gentle sources. Due to this fact, the catalytic course of, particularly once we use a catalyst with strong exercise and stability comparable to Au54Pt46/ZHM20 produced on this work, would supply new alternatives for eradicating the hint quantity of C2H4 for a very long time at low temperatures.
