Crystal buildings
With out use of any chiral natural amines, black bulk single crystals of ABI with sizes as much as 15 × 6 × 5 mm3 are grown through easy and low-cost answer cooling course of. (Fig. 2a), and the facility X-ray diffraction peaks validate their section purity (Supplementary Fig. 1). Single crystal X-ray diffraction reveals that ABI adopts a non-centrosymmetric house group Cc as verified by the second harmonic era (Supplementary Desk 1 and Supplementary Fig. 2). Notably, house group Cc belongs to 4 chiroptical-active level teams (m, mm2, 4 and 42 m). As illustrated in Fig. 2b, ABI shows the construction of alternating association between zig-zag chains and discrete 4-AMP cations. It’s value noting that the sturdy N-H┅I hydrogen bonds between the N and I atoms nicely maintain inorganic frameworks within the crystal lattice, and natural ammonium cations recurrently lie between the inorganic chains (Supplementary Fig. 3). The interplay uneven hydrogen-bonding between the inorganic BiI6 octahedral chains and 4-AMP cations results in helical distortions in the entire chiroptical-polar construction (Supplementary Tables 2–3). This polar construction produces an electrical polarization (Pm) alongside the ac aircraft. The Pm worth alongside the a– and c-axis are evaluated to be 0.61 μC cm−2 and 0.45 μC cm−2, respectively, by level cost mannequin calculations (Supplementary Fig. 26 and Supplementary Desk 5). Furthermore, combining Figs. 1 and 2c, right-handed and left-handed helixes may very well be present in ABI by connecting the closest neighbor BiI6 octahedral skeletons. Such helixes of reverse handedness can rework into one another by a m slide floor and are concurrently distributed in a crystal construction ABI at a ratio of 1:1 (Supplementary Fig. 4). Moreover, the existence of chiroptical exercise within the ABI isn’t depend upon the intrinsic traits of the racemic models however is solely decided by its symmetry21,24. Therefore, non-centrosymmetric stacking in ABI is answerable for chiroptical-active alerts, which is able to facilitate to exhibit the belief of CBPE.

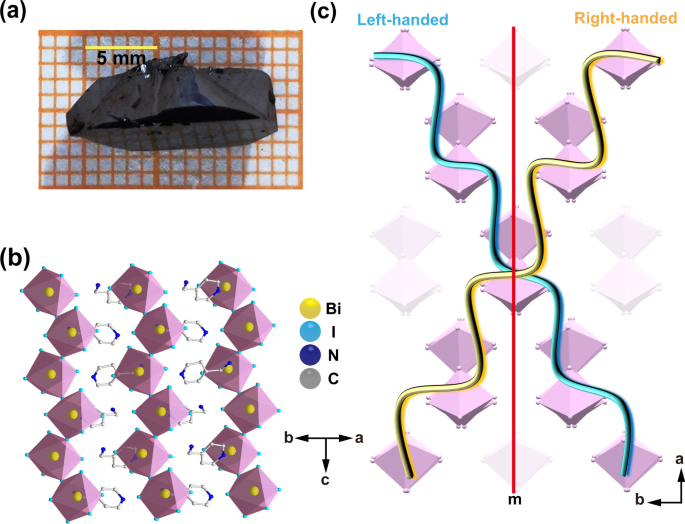

a Bulk single crystals of ABI. b The zig-zag chains construction of ABI. c The connection between the left-handed helix and right-handed helix relative to the m symmetry aircraft in ABI crystals.
Optical properties
The round dichroism (CD) measurement is a strong method to assist chiroptical exercise. In a basic solid-state CD measurement, a bit of ABI single crystal is used to combine and floor with a sure proportion of KBr energy. It may be seen apparent reverse constructive and destructive CD indicators on the identical wavelengths from Supplementary Fig. 5. Nevertheless, it’s troublesome to debate the CD properties of this pattern at this weak sign depth. On this regard, The CD measurements through the use of microcrystals are additional carried out as proven in Fig. 3a. clearly, the CD alerts look like at virtually the identical wavelengths (290, 356, 442, 523 nm) however with reverse indicators. The bisignated CD alerts (523 nm) correspond to the primary excitonic transition band edge (523 nm), that are in keeping with the absorption spectrum (Fig. 3b). As well as, to substantiate the reliability of the CD measurements, we additionally use skinny movie samples to check CD (Supplementary Figs. 6 and seven). Corresponding angular dependence CD spectra can confirm that the chiroptical exercise of ABI is related to the directionality of incident gentle. This phenomenon is in keeping with the chiroptical exercise traits of m level group. Along with CD absorption, the corresponding optical absorption of ABI are evaluated. As proven in Fig. 3b, the absorption cut-off of ABI locates at 680 nm, and the estimated bandgap is 1.81 eV. This bandgap is way narrower than these of basic compounds with APE, comparable to BiFeO3 (~2.7 eV)28, BiVO4 (~2.43 eV)29, and (3-pyrrolinium)CdCl3 (~3.5 eV)30. Such a slender bandgap reveals that ABI can take up the visible-light illumination to facilitate the era of carriers, thereby realizing the broadband system functions. In the meantime, we estimate the digital band construction and density of states of ABI through the use of the first-principles calculations each with out and with consideration of spin-orbit coupling (SOC) impact of the heavy atoms inside this perovskite (Supplementary Figs. 8 and 9). Remarkably, after contemplating the SOC impact, I-5p states primarily attribute the valence band whereas each Bi-6p states and I-5p states dominate the conduction band. That’s, heavy atoms Bi and I of ABI are the area contribution of SOC impact, which is able to result in generate the round photoexcitation31,32. Consequently, the optical bandgap of ABI depends on the inorganic BiI6 framework, which is analogous to that of 2D hybrid organic-inorganic perovskites33,34,35.
a Round dichroism spectra of ABI crystals through the use of integrating sphere to detect the diffuse reflectance. b Absorption spectrum and inset reveals the corresponding Tauc plot. Supply information are offered as a Supply Information file.
Anomalous bulk photovoltaic impact
Good semiconducting efficiency must be evaluated after having the proof for chiroptical exercise. Subsequently, the photoelectric traits are measured on floor of ABI bulk single crystals alongside three instructions (a-, b-, c-axes) below a visual 405 nm laser irradiation (Supplementary Fig. 10). As given in Fig. 4a, for the electrodes aligning within the a-axis, a short-circuit present density Jsc of 0.68 nA/cm2 is noticed below 119.2 mW/cm2 illumination. Emphatically, the obtained open-circuit voltage Va is as much as 25 V, which is ~13 instances bigger than its bandgap, revealing an apparent APE alongside the a-axis. Such an infinite voltage is way increased than that of the well-known inorganic ferroelectric BiFeO3 and is similar to that of wide-band hybrid semiconductor (3-pyrrolinium)CdCl330. In the meantime, the photovoltaic present and photovoltage are repeatable below on/off switching, verifying the favorable APE stability of ABI (Fig. 4b, c). Admittedly, the time required for the open circuit voltage to succeed in saturate below the illumination is comparatively lengthy. In-depth understanding discover that drift of ion/vacancies must be one of many essential influencing elements. Owing to the weak Bi-I bonds and shorter distance to the closest I− emptiness, I− could also be the principle migrating species in ABI36,37. The ensuing diffusion present delays the method of provider separation and transition from non-equilibrium to equilibrium, which finally takes a very long time to succeed in equilibrium. That’s, hysteretic photovoltage saturation could derive from the light-induced self-poling course of38. Furthermore, superior photovoltage exists over a large wavelength starting from 266 nm to 637 nm (Supplementary Figs. 11–14), which is nicely in accord with the extensive band absorbance of ABI. Significantly, the photovoltages of ABI assorted with gentle depth is noticed in Fig. 4d. Intimately, below low gentle intensities, photovoltage is linearly proportional to the incident gentle depth; when the sunshine depth will increase to 21 mW/cm2, it turns into a weak logarithmic dependence Voc ∝ ln It (It is the sunshine depth on the illuminated floor); when It will increase by 89 mW/cm2, Voc tends to be saturated. This habits is nicely in settlement with that of most ferroelectric and polar supplies, comparable to LiNbO3: Fe39, LiNbO32, and PSI crystals3. Moreover, the darkish present density is as little as 6.7 pA/cm2 (Vbias = 0 V). Such a low darkish present considerably allows a substantial on/off ratio of present as much as 200, important for the noise efficiency of photodetector. In consequence, the detectivity is estimated to be 4 × 106 Jones. The above outcomes endow ABI an ideal potential for attaining conspicuous CBPE.
a Present-voltage (I–V) traces below totally different gentle intensities (It > 89 mW/cm2). b Open-circuit voltage (Va) versus time when the sunshine is turned on. c The true time-dependent photocurrent of system below 405 nm gentle illumination below 0 V bias. d Photovoltages versus gentle depth. Experimental outcomes (inexperienced) and photovoltage mannequin (pink and darkish inexperienced). Supply information are offered as a Supply Information file.
To review the origin of APE in chiroptical-active achiral hybrid perovskite ABI, we focus on the correlation between polarity and APE. As depicted in Supplementary Fig. 15a, distinguished Vc (=5 V) is noticed for the electrodes aligning within the c-axis. Nevertheless, for the electrodes aligning b-axis, virtually negligible Vb alerts may very well be detected. Thus, APE solely exists within the course parallel to the ac aircraft. This phenomenon is nicely in keeping with that of the distinction of Pm in numerous axial instructions (0.61, 0.45, 0 μC/cm2 alongside the a, c, b-axis respectively), indicating there’s a shut relationship between Pm and APE. Particularly, the displacement of infinite destructive cost middle [BiI5]2− and the constructive cost of (4-AMP)2+ collectively generate a polarization on the ac aircraft. Then, the illumination results in photo-induced electrons and holes to separate towards reverse instructions alongside the ac aircraft, thereby inducing an electrical present and photovoltage (Supplementary Fig. 15b). In such a case, with the saturation of polarization and pyrocharge, the photovoltage reaches a most, which is as a result of localization of non-equilibrium carriers in comparatively deep traps40,41,42. Such APE containing this Pm will be defined by the shift present mannequin as reported in BiFeO341, LiNbO342, (Okay, Ba) (Ni, Nb) O3 – δ43, TTF-CA44.
Round polarized light-dependent anomalous bulk photovoltaic impact
The mix of above the chiroptical actions and good semiconducting options might present nice alternatives to realize CBPE based mostly on ABI. Firstly, we carried out CPL photoelectric testing on ABI bulk crystals and the course of electrodes is alongside the a-axis. The incident CPL is managed by a polarizer and a quarter-wave plate and the CPL intersects the ac aircraft (Fig. 5a). The next experiments are all carried out below zero bias. Curiously, there’s a sturdy CBPE – a gradual anomalous photovoltaic present has an apparent dependency on gentle helicity (Fig. 5b and Supplementary Fig. 16). Notably, photocurrent achieved below RCP illumination is clearly increased than that of below LCP illumination with the equivalent depth whatever the wavelengths of 266, 405, and 520 nm (Fig. 5c and Supplementary Figs. 17–18). These outcomes exhibit crystals of ABI have good distinction capability between RCP and LCP photons. We speculate that this capacity is most definitely attributable to the upper free provider era effectivity below RCP. Particularly, ABI absorbs extra proper round photoexcitation and generates extra electron-hole pairs, thus extra spin-triplets are generated as a result of enhanced spin flipping course of by means of SOC31,32. Moreover, this capacity is evaluated based mostly on the anisotropy issue of photocurrent, gIph, which is calculated as gIph = 2(IR–IL)/(IR + IL). ({I}_{ph}^{R}) and ({I}_{ph}^{L}) are the photocurrent below LCP and RCP gentle illumination respectively. The gIph worth is decided to be 0.24 below the 405 nm laser illumination. Furthermore, such CBPE can exist over a large wavelength starting from 266 nm to 637 nm (Supplementary Fig. 19), which is nicely in accord with the extensive band absorbance of ABI. You will need to notice CBPE in achiral hybrid supplies and acquire a big gIph of 0.24. This worth is superior to most chiral organo-inorganic hybrids, comparable to chiral perovskites, [(R)-β-MPA]2MAPb2I7 single crystal gadgets and (α-PEA)PbI3 movies gadgets19,32. Experimental gIph of some reported gadgets with CBPE are summarized within the Fig. 5d and supporting data (Supplementary Desk 4). Additional, gIph of ABI at Vbias = 10 V is evaluated to be about 0.024, lower than the polarization ration pushed by APE, suggesting that enormous anisotropy issue will not be solely derived from the chiroptical exercise of the construction, but additionally the intrinsic photovoltaic traits. Subsequently, we conclude that the APE serves to separate electron-hole pairs, thus giving rise to enhanced CPL response and distinguish capacity.

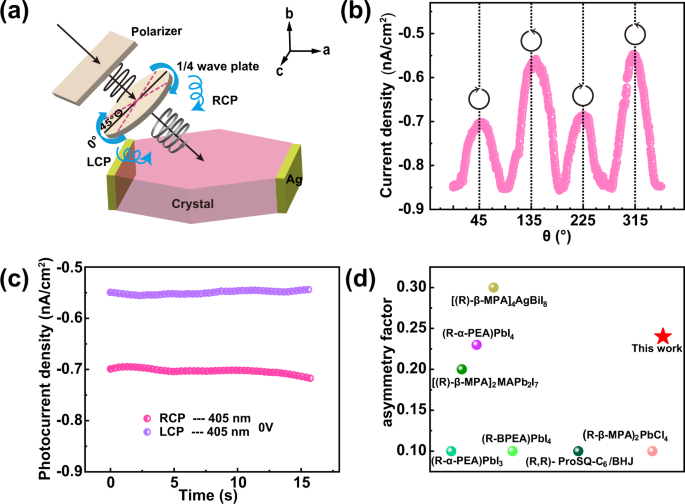

a The schematic view of the testing the CBPE system. b Photocurrent density versus the linear polarization angle as tuned by the λ/4 plate below the illumination of 119.20 mW/cm2. Black arrows point out right- and left-handed circularly polarized gentle (RCP, LCP). c The photocurrent density as a perform of time below LCP-405 and RCP-405 nm and the irradiation of 119.20 mW/cm2. d Experimental asymmetry elements of some reported gadgets with CBPE. Supply information are offered as a Supply Information file.
When the course of incident gentle is reversed to that of Fig. 5a (Supplementary Fig. 20), the CPL-helicity dependence of the photocurrent switches between for left and proper CPL (Supplementary Fig. 21). These outcomes point out that the optical axes are intersectant to ac aircraft, which is in keeping with the right- and left-handed helixes in construction of ABI. Moreover, we monitor the soundness of ABI bulk crystals, together with XRD sample (Supplementary Fig. 22), thermal stability (Supplementary Fig. 23), Voc (Supplementary Fig. 24), and CPL detection (Supplementary Fig. 25). Corresponding authentic electrodes and single crystals are saved within the ambient atmosphere with none encapsulation for 1 month to examine. The outcomes reveal negligible degradation of ABI below the ambient storage. Such good stability of ABI can examine to that of low-dimensional hybrid lead-halide layered perovskites, which is conducive to sensible system utility32.
