Bat pattern assortment

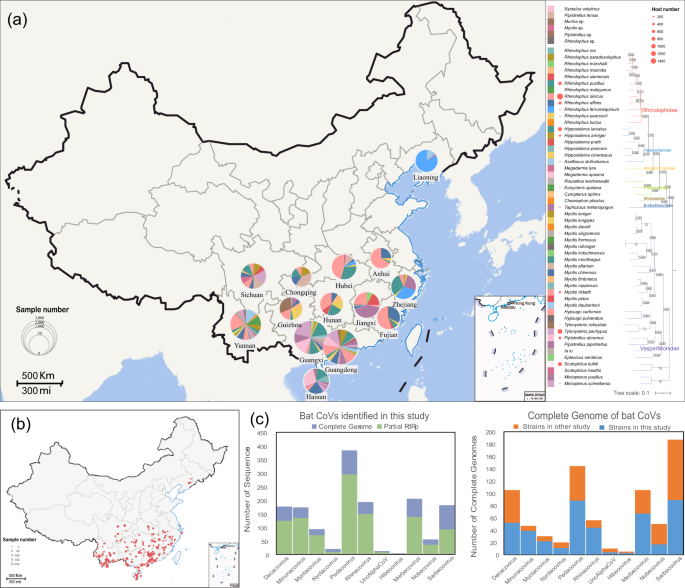

From August 2016 to July 2021, a complete of 13,064 oral and anal swabs had been collected from bats in 14 provinces throughout China. Of those, 4755 samples had been collected following the COVID-19 outbreak. Sampling websites lined the hotspots of bats carrying Alpha-CoV and Beta-CoV in China9,29(Supplementary Knowledge 1 and Knowledge 2), together with the Yunnan province (n = 2487), Sichuan province (n = 892), Guangdong province (n = 1991), Guizhou province (n = 356), Hainan province (n = 587), Hunan province (n = 286), Jiangxi province (n = 508), Anhui province (n = 36), Zhejiang province (n = 565), Fujian province (n = 161), Liaoning province (n = 202) Guangxi Zhuang Autonomous Area (n = 3257) and Chongqing Metropolis (n = 64) (Fig. 1 and Supplementary Knowledge 1). The sampled bats belonged to a variety of species, together with 54 recognized species and 4 species which can be but to be decided, belonging to 19 genera and 7 households. Bats from the genus Rhinolophus (n = 4270), genus Myotis (n = 1949), and genus Hipposideros (n = 1996) had sampling benefits, accounting for 62.88% of the overall samples. As well as, most samples had been collected from Rhinolophus sinicus (R. sinicus) (n = 1415), R. pusillus (n = 1066), Scotophilus kuhlii (S. kuhlii) (n = 1045), Tylonycteris pachypus (T. pachypus) (n = 1014), H. larvatus (n = 958) and others. Just a few samples originated from R. paradoxolophus (n = 1), Myotis formosus (M. formosus) (n = 1), M. nipalensis (n = 1), M. rufoniger (n = 1) and Pipistrellus ceylonicus (P. ceylonicus) (n = 1) (Supplementary Knowledge 1). This complete sampling technique supplies a sturdy basis for understanding the range and distribution of bat CoVs in China.
Based mostly on species, sampling location, sampling time, and different associated elements, bat samples had been mixed into 372 swimming pools, after which libraries of nucleic acids had been constructed for high-throughput sequencing and PCR screening (Supplementary Fig. 1) A complete of roughly 764 GB of unpolluted information was obtained. A complete of 571,486,589 reads associated to viral protein sequences within the NR library, together with 28,014,438 reads associated to CoV, and the variety of CoV-related reads in every pool ranged from 0 to 2,292,787 reads. Mixed screening confirmed that 113 swimming pools had been Alpha-CoV optimistic alone, 64 swimming pools had been Beta-CoV optimistic alone and 22 swimming pools had been mixed Alpha-CoV and Beta-CoV optimistic. So as to comprehensively describe the general traits of bat CoVs, we additional screened all 4761 single samples involving the CoV-positive pool. Lastly, a complete of 1141 CoV-positive samples had been recognized, together with 146 sarbecovirus-positive samples recognized beforehand (Supplementary Knowledge 2). Based mostly on the simulation of bat distribution in China and the projection of recognized optimistic coronavirus sampling factors on this research, we noticed a normal pattern the place areas with plentiful bat populations had been related to the next chance of coronavirus detection. (Supplementary Fig. 2)
The 1141 CoV positives belonged to 10 subgenera of CoV and a bunch of unclassified Alpha-CoV. These included 7 subgenera underneath Alpha-CoV, specifically Pedacovirus (n = 300), Rhinacovirus (n = 151), Minunacovirus (n = 134), Decacovirus (n = 129), Myotacovirus (n = 73), Nyctacovirus (n = 10) and unclassified Alpha-CoV (n = 8). As well as, 4 subgenera belonged to Beta-CoV, specifically Merbecovirus (n = 138), Sarbecovirus (n = 161), Nobecovirus (n = 36), and Hibecovirus (n = 1). Excluding the beforehand reported Sarbecovirus29, 371 strains as consultant strains had been chosen for whole-genome sequencing, yielding 330 full sequences. Out of those, 240 sequences had been of Alpha-CoV together with Pedacovirus (n = 84), Decacovirus (n = 48), Rhinacovirus (n = 42), Minuacovirus (n = 33), Myotacovirus (n = 20), Nyctacovirus (n = 9), and unclassified Alpha-CoV (n = 4), respectively. As well as, 90 sequences had been of Beta-CoV, comprising Merbecovirus (n = 64), Nobecovirus (n = 16), Sarbecovirus (n = 9) and Hibecovirus (n = 1). Cumulatively, 399 whole-genome sequences of CoVs had been decided, together with 69 Sarbecovirus sequences beforehand studied29 (Fig. 1 and Supplementary Knowledge 2).
Variations had been discovered within the detection price of bat CoVs amongst totally different bat households and species, in keeping with the outcomes of CoV screening. It was famous that CoVs had been detected in 36 bat species throughout 14 provinces in China (Fig. 2 and Supplementary Knowledge 3). Important variations had been discovered within the detection charges of sure subgenera of CoVs throughout totally different bat households (Supplementary Knowledge 4). Decacovirus was detected in bats of the Hipposideridae household at a price considerably greater than in Vespertilionidae bats, whereas Nobecovirus was present in bats of the Pteropodidae household at a price considerably greater than that in bats from different households. Additional, the detection price of Rhinacovirus in bats of the Rhinolophidae household was significantly greater than that in bats of the Hipposideridae and Vespertilionidae households. Equally, the detection price of Sarbecovirus in bats of the Rhinolophidae household was notably greater than that in bats of the Vespertilionidae household.
Among the many detected CoVs, probably the most various on the CoV subgenus stage had been discovered within the household Vespertilionidae, which included Decacovirus, Minunacovirus, Myotacovirus, Nyctacovirus, Pedacovirus, Merbecovirus, and an unclassified Alpha-CoV. CoVs of the Hibecovirus had been solely detected in H. pratti from Hubei province, whereas CoVs of the Nobecovirus had been solely detected in Eonyctris spelaea and Rousettus leschenaultia from the Yunnan province. Detection charges of viruses differed amongst totally different bat species (Supplementary Knowledge 5). Basically, the detection price of coronaviruses in bats of the Rhinolophidae household was greater than in another species. Amongst varied species of the Rhinolophidae household, R. affinis, R. pusillus, and R. sinicus exhibited comparatively excessive detection charges. Furthermore, the detection price of P. abramus was notably greater than some bat species within the genus Myotis.
As a result of distinction within the sampling quantity from the totally different bat species, this research couldn’t acquire a dependable optimistic price of CoV an infection for bat species with a decrease sampling quantity, however it’s a reference worth for the optimistic price of CoV an infection for bat species with broad distribution and excessive species richness in China, such because the R. sinicus, which had the most important sampling quantity. The optimistic charges of Sarbecovirus and Rhinacovirus ranged from 0.01% to 11.10%, from 0.01% to 30.00% respectively, and the optimistic charges in several provinces various between 0.01% and 64.70% (Supplementary Knowledge 3).
Classification of novel CoVs and analysis the strategies of screening CoVs primarily based on partial RdRp
To realize a deeper understanding of the evolution, geographical distribution, host vary, and recombination of bat CoVs in China in addition to their associated CoVs in different nations or areas, further information had been integrated from GenBank (https://www.ncbi.nlm.nih.gov/genbank/), International Initiative on Sharing All Influenza Knowledge (GISAID: https://www.gisaid.org/) and Nationwide Genomics Knowledge Middle (NGDC: https://ngdc.cncb.ac.cn/). This included 5181 bat CoV sequences comprising 4698 RdRp partial sequences, 405 whole-genome sequences, and 78 partial genome sequences. Moreover, to ascertain a extra complete taxonomy for Alpha-CoVs and Beta-CoVs and to depict extra intricately the relationships between bat CoVs and people present in different animal species, the dataset was supplemented with 91 consultant sequences. This subset included reference sequences (refseq) of non-bat CoVs in Alpha- and Beta- CoV genera, together with CoVs present in varied animal species inside the identical subgenera as bat CoVs, together with 88 whole-genome sequences and three partial genome sequences (GenBank, GISAID, and NGDC accession numbers and detailed info are supplied in Supplementary Knowledge 6). Constructing upon the CoV sequences recognized on this research and people amassed from public databases, we organized these sequences into three distinct but intersecting datasets: Dataset 1, Dataset 2, and Dataset 3 (The sequence lists for every of those datasets might be present in Supplementary Knowledge 2 and Knowledge 6). The precise utility of those datasets in our subsequent analyses was tailor-made to satisfy the various necessities of every particular person analytical part of our analysis.

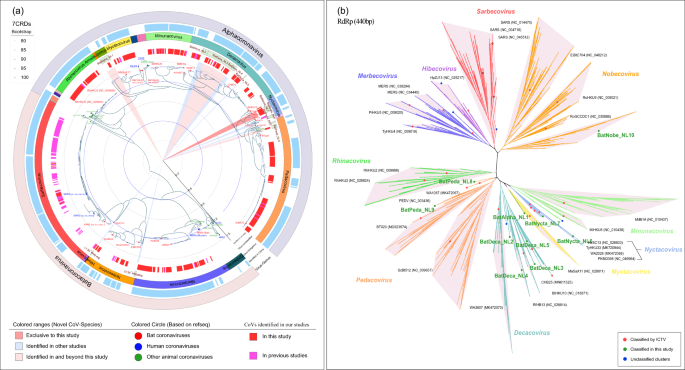

Using Dataset 1, evaluation of amino acid sequences of the seven conserved replicase domains (CRDs) in ORF1ab of bat CoVs revealed that, aside from the subgenus and species of CoVs that had been categorized, bat CoVs had fashioned two novel evolutionary lineages on the stage of the CoV subgenus, which had been designated as Bat Alphacoronavirus new lineage 1 (BatAlpha_NL1) and Bat Betacoronavirus new lineage 11 (BatBeta_NL11). As well as, 9 novel evolutionary lineages on the CoV species stage had been discerned, designated as Bat Decacovirus new lineage 2 (BatDeca_NL2), Bat Decacovirus new lineage 3 (BatDeca_NL3), Bat Decacovirus new lineage 4 (BatDeca_NL4), Bat Decacovirus new lineage 5 (BatDeca_NL5), Bat Nyctacovirus new lineage 6 (BatNycta_NL6), Bat Nyctacovirus new lineage 7 (BatNycta_NL7), Bat Pedacovirus new lineage 8 (BatPeda_NL8), Bat Pedacovirus new lineage 9 (BatPeda_NL9), and Bat Nobecovirus new lineage 10 (BatNobe_NL10) (Fig. 3a). The amino acid sequence id between these novel lineages and the categorized CoV species inside the seven CRDs was <90% (Supplementary Knowledge 7). Of those, the bat CoVs in China are related to six novel evolutionary lineages, with the strains detected on this research showing in 4 of those lineages, particularly, BatAlpha_NL1, BatDeca_NL3, BatNycta_NL7, and BatPeda_NL9. Amongst them, CoVs in BatNycta_NL7 had been uniquely recognized on this research. By analyzing datasets from public information and our newly recognized CoVs, 14 of the 20 subgenera of Alpha- and Beta- CoVs have been related to bats, with just a few remaining unclassified. Regardless of the identification of numerous bat CoVs on this research, it didn’t lead to an enlargement of the subgenus vary of bat CoVs in China. Predominantly, bats in China had been discovered to harbor 10 subgenera of CoVs and a small variety of unclassified Alpha-CoVs.
The evolutionary tree, constructed utilizing 6,658 RdRp (~440 bp) sequences (Dataset 2), demonstrated that among the many 11 subgenera (together with one unclassified Alpha-CoV BatAlpha_NL1) of CoV related to bats in China, past the CoV species categorized by ICTV and the novel evolutionary lineage discerned on this research, there remained a number of unclassified CoVs within the subgenera Decacovirus, Minunacovirus, Merbecovirus, Hibecovirus, and Sarbecovirus. As solely small fragments of RdRp (~440 bp) had been recognized, they might not be categorized primarily based on the CoV classification standards (Fig. 3b and Supplementary Knowledge 6).
Within the complete evaluation of CoVs, Dataset 1 comprising 475 sequences for Alpha-CoVs and 408 for Beta-CoVs—mirroring these utilized within the 7CRDs tree—was deployed. Phylogenetic bushes, particularly for Alpha- and Beta- CoVs, had been constructed utilizing partial RdRp (~440 bp) and different genomic areas, comparable to ORF1ab, ORF1a, OEF1b, S, E, M, and N (Supplementary Fig. 3a and b, Supplementary Fig. 4 and Supplementary Fig. 5). Upon evaluating the clustering traits inside the phylogenetic bushes, constructed from partial RdRp and 7CRDs, at the side of these from ORF1ab, ORF1a, and OEF1b, a big diploma of congruence was noticed on the ranges of CoV Subgenus and species. Particularly, excellent congruence was famous on the CoV Subgenus stage, whereas primary congruence was noticed on the CoV species stage. Variations had been solely detected inside BatPeda_NL8 and BatPeda_NL9, which may doubtlessly be attributed to the inclusion of recent CoV species inside these two novel lineages. Nevertheless, when evaluating with bushes derived from S, E, M, and N areas, a divergence was noticed, suggesting potential limitations in utilizing partial RdRp for analyzing the genomic structural variety of CoVs. These findings underscore the reliability of partial RdRp sequencing for the identification of CoVs. But, the noticed inconsistencies reiterate the significance of acquiring whole-genome sequences within the research of CoV variety.
Genomic construction and recombination occasions

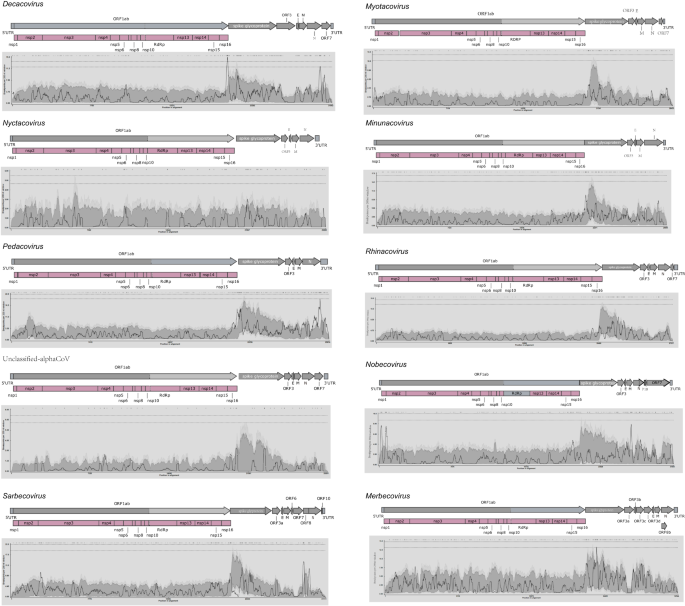

The genomic construction of CoVs recognized on this research, in addition to these from 11 subgenera inside the Alpha-CoV and Beta-CoV genera, was evaluated. Full genome lengths ranged from 26,956 bp to 31,491 bp, with Hibecovirus and Rhinacovirus exhibiting the longest and shortest genomes, respectively (Supplementary Fig. 6). Regardless of a uniform genomic group throughout the 11 subgenera (5′UTR – ORF1ab polyprotein (ORF1ab) – spike protein (S) – envelope protein (E) – membrane glycoprotein (M) – nucleocapsid phosphoprotein (N) − 3′UTR-poly (A) tail), vital variations had been noticed within the distribution of accent proteins (Fig. 4). In Alpha-CoV, accent proteins had been primarily situated between the S and E proteins (ORF3), and between the N protein and the three′UTR-poly (A) tail (ORF7). Nevertheless, ORF7 was solely detected in Decacovirus, Myotacvirus, Rhinacovirus and unclassified Alpha-CoV. Within the case of Beta-CoV, accent proteins had been universally discovered between the S and E proteins, although their distribution displayed distinctive traits in every subgenus. Nobecovirus additionally contained accent proteins primarily between the N protein and three′UTR-poly (A) tail (ORF7), with the Rousettus bat coronavirus GCCDC1 (RoGCCDC1) pressure exhibiting a particular insertion sequence named p10. Inside the Sarbecovirus subgenus, accent proteins had been additionally discovered between the M and N proteins, with three accent proteins, ORF6, ORF7 and ORF8, being recognized. Accent proteins within the Merbecovirus subgenus had been solely located between the S and E proteins, together with ORF3, ORF4, and ORF5. The Hibecovirus subgenus uniquely harbored accent proteins between ORF1ab and the S protein, in addition to between the M and N proteins, generally referred to as ORF7 and ORF8.
A recombination evaluation was undertaken on 10 subgenera and one unclassified Alpha-CoV associated to bat CoVs in China (Fig. 4), using Dataset 3 for this a part of the research. Consequently, a complete of 425 recombination occasions had been recognized throughout varied subgenera, except Hibecovirus, the place no recombination occasions had been detected (Supplementary Knowledge 8). In mild of the quite a few recombination occasions inside the 9 subgenera of coronaviruses and one unclassified Alpha-CoV BatAlpha_NL1, a guide curation of the breakpoints inferred by RDP5 was carried out. The Breakpoint Distribution Plot30 and permutation-based testing in RDP5 had been utilized to look at the numerous clustering of recombination occasions of the genome. This was indicative of the presence of recombination scorching spots or chilly spots. It was noticed that Nyctacovirus and Unclassified Alpha-CoV didn’t show distinct recombination hotspots or chilly spots. However, Decacovirus, Pedacovirus, Myotacovirus, Minunacovirus, Rhinacovirus, Merbecovirus, and Sarbecovirus exhibited recombination hotspots on the junction of the S protein and ORF1ab. As well as, Minunacovirus additionally confirmed recombination hotspots within the E protein, M protein, and N protein areas. Rhinacovirus exhibited recombination hotspots within the S2 area, whereas Nobecovirus manifested recombination hotspots on the finish of ORF1b and within the M protein area. Past the S area, Myotacovirus displayed recombination hotspots within the N protein area and ORF7. Likewise, Pedacovirus demonstrated recombination hotspots within the N protein area, excluding the S protein area.
Evolutionary, host vary, distribution, and recombination traits of Alphacoronavirus in bats
The Decacovirus at the moment accommodates 4 acknowledged species, together with Bat coronavirus HKU10 (BtHKU10), Rhinolophus ferrumequinum alphacoronavirus HuB-2013 (RfHB13), Alphacoronavirus WA3607 (WA3607) and Alphacoronavirus CHB25 (CHB25). Moreover, taxonomic evaluation primarily based on seven CRDs has revealed 4 evolutionary lineages of undetermined species inside Decacovirus, denoted as BatDeca_NL2 to BatDeca_NL5 (Fig. 3a). CoVs associated to WA3607 (WA3607r-CoVs) had been primarily recognized within the Molosidae household, with a geographical distribution spanning Asia, Oceania, and Africa. The CoVs associated to RfHB13, BatDeca_NL3, and BatDeca_NL4 had been predominantly discovered within the Rhinolophus genus, displaying a broad distribution in Asia, notably in China. CoVs of BatDeca_NL2 had been largely noticed in Megaderma lyra from Bangladesh. CoVs associated to CHB25, BatDeca_NL5, and BtHKU10 had been primarily detected within the genus Hipposideros, that are distributed in China and different Southeast Asian nations (Fig. 5).
Phylogenetic evaluation based on ORF1ab demonstrated that the 48 newly recognized CoVs possessing full genomes inside Decacovirus had been affiliated with BtHKU10 (n = 9), RfHB13 (n = 8), BatDeca_NL3 (n = 21), and CHB25 (n = 10) (Fig. 5a). CoVs associated to BtHKU10 (BtHKU10r-CoVs) had been primarily found in H. pomona, spanning a number of southern provinces of China, together with Guangdong, Guangxi, Hainan, Yunnan, and others. Remarkably, BtHKU10r-CoVs diverged into 4 distinct clades (A to D) exhibiting vital variations. CoVs related to RfHB13 had been primarily present in R. ferrumequinum, extensively distributed throughout central and northern China. BatDeca_NL3 associated CoVs had been primarily distributed in Yunnan, Guangxi, Hainan, Guangdong, and different southern provinces of China, but segregated into three distinct clades (A to C) primarily based on the host species. Predominant hosts of BatDeca_NL3-A and BatDeca_NL3-B had been R. affinis and R. sinicus, whereas the host vary for BatDeca_NL3-C was broader, together with varied Rhinolophus species, M. muricola, and H. cineraceusi. CoVs related to CHB25 had been primarily present in H. larvatus and H. armiger, primarily spanning Yunnan, Guangxi, and Guangdong provinces. CoVs from WA3607, BatDeca_NL2, BatDeca_NL4, and BatDeca_NL5 had been mainly discovered exterior China, not lined on this research (Fig. 5b and c, Supplementary Knowledge 9).
Investigating the recombination occasions inside the Decacovirus yielded vital findings. Particularly, 28 distinct recombination sequences had been elucidated, implicating RfHB13, RhBatL3, BtHKU10, and WA3607 (Fig. 5a). Recombination occasions primarily happen inside species, with a giant proportion of recombination occasions noticed in BtHKU10 intraspecies recombination, adopted by BatDeca_NL3 intraspecies recombination (Supplementary Knowledge 8). Whereas no recombination sequences had been recognized amongst BatDeca_NL2-BatDeca_NL5, an insightful correlation was drawn from the constructed phylogenetic bushes primarily based on ORF1a, ORF1b, and structural proteins (Supplementary Fig. 4). Intriguingly, the BatDeca_NL2r-CoVs demonstrated a more in-depth phylogenetic affinity with the Rhinacovirus within the S protein area, deviating from different members of the Decacovirus. An analogous pattern was noticed for WA3607, which aligned extra intently with the Minunacovirus within the S protein area. Furthermore, an evolutionary tree constructed for the S1 area of Alpha-CoV revealed that the clustering pattern of CoVs inside the Decacovirus was intently associated to their hosts. On the viral species stage, other than BatDeca_NL3r-CoVs, there was no differentiation of their clustering traits (Supplementary Fig. 3c).
The CoVs in Minunacovirus are predominantly recognized in bats of the genus Miniopterus and are at the moment categorized into two species, specifically, Miniopterus bat coronavirus 1 (MiBt1A) and Miniopterus bat coronavirus HKU8 (MiHKU8). Phylogenetic evaluation primarily based on the ORF1ab revealed 33 newly recognized CoVs possessing full genomes inside Minunacovirus, together with 19 CoVs in MiBt1A and 14 CoVs in MiHKU8, all of which had been primarily present in China (Fig. 5 and Supplementary Knowledge 9). Notably, MiHKU8 associated CoVs (MiHKU8r-CoVs) fashioned two evolutionary clades (A and B) with vital variations. The CoVs in HKU8-A had been largely from Miniopterus Pusillus (M. Pusillus) in Guangdong and Hongkong. Whereas CoVs in HKU8-B had been primarily recognized from M. schreibersii and M. Fuliginosus in Yunnan, Guangdong, Fujian, Hubei, and Hainan provinces. Equally, MiBt1A associated CoVs (MiBt1Ar-CoVs) additionally had two considerably totally different clades (A and B). The previous had been largely detected in M. schreibersii from Yunnan, Guangdong, Anhui, Hubei, Jiangxi, Hongkong, and Sri Lanka, whereas the latter had been primarily present in M. pusillus from Guangdong, Hainan, Hongkong, and Yunnan provinces.
Relating to the recombination evaluation for the Minunacovirus, a complete of 24 recombinant sequences had been recognized, current in each MiBt1A and MiHKU8 (Fig. 5a). We discovered that recombination occasions predominantly happen inside MiBt1A or inside MiHKU8, with out involvement of inter-species recombination occasions (Supplementary Knowledge 8). Furthermore, by observing the phylogenetic tree constructed from ORF1a, ORF1b, and structural proteins, it was discovered that one evolutionary cluster in MiHKU8 diverged within the S protein area with different CoVs in Minunacovirus, displaying nearer phylogenetic relationship with WA3607 in Decacovirus. As well as, two sequences belonging to MiHKU8 had been clustered within the N protein area into MiBt1A. Noteworthy is the truth that a virus pressure recognized from Civet (OM480510) was noticed within the divergent evolutionary cluster in MiHKU8. From the phylogenetic tree constructed from the S1 area (Supplementary Fig. 3c), the amino acid sequence consistency of this virus pressure with the virus pressure recognized in M. fuliginosus (KJ473798_Bat/MiFu_HB/CHN) on this area is as excessive as 80.39%.
Presently, 4 CoV species of Nyctacovirus are outlined, specifically Nyctalus velutinus Alphacoronavirus SC-2013 (NySC13), Alphacoronavirus WA2028 (WA2028), Alphacoronavirus HKU33 (TyHKU33) and Pipistrellus kuhlii CoV 3398 (PKBt3398). Whereas, taxonomic outcomes derived from seven CRDs demonstrated the presence of two evolutionarily distinct lineages of unclassified species inside Nyctacovirus, designated as BatNycta_NL6 and BatNycta_NL7 (Fig. 3a). The pure host of NySC13 was Nyctalus velutinus from Sichuan province. WA2028 associated CoVs had been discovered from the genus Chalinolobus, Myotis, and Vespadelus in Australia, and TyHKU33 associated CoVs had been traced again to T. robustula in China. CoVs pertaining to PKBt3398 had been present in Pipistrellus kuhlii (P. kuhlii) in Italy. CoVs inside BatNycta_NL6 confirmed intensive host variety and broad regional distribution, whereas these inside BatNycta_NL7 demonstrated a significantly slender host vary, confined solely to P. abramus in Guangdong, Guangxi, and Guizhou provinces. 9 newly recognized CoVs (Full Genome) in Nyctacovirus, which belonged to BatNycta_NL7 (n = 8) and TyHKU33 (n = 1) had been primarily based on the ORF1ab tree (Fig. 5 and Supplementary Knowledge 9). CoVs belonging to BatNycta_NL7 had been from P. abramus in Guangdong, Guangxi, and Guizhou provinces. The one CoV in TyHKU33 was from Tylonycteris robustula (T. robustula) in Guizhou province.
Concerning the recombination evaluation inside the Nyctacovirus, 5 recombinant sequences had been recognized, all of which belonged to BatNycta_NL7 (Fig. 5a). Other than one recombination occasion involving BatNycta_NL7 and NvSC13, all different recombination occasions occurred inside the BatNycta_NL7 species (Supplementary Knowledge 8). Furthermore, phylogenetic analyses primarily based on ORF1a, ORF1b, and structural proteins revealed that the CoVs in Nyctacovirus demonstrated stability, with no vital shifts detected throughout totally different evolutionary clades (Supplementary Fig. 4).
The CoVs in Rhinacovirus are predominantly discovered within the genus Rhinolophus in China. So far, a single outlined CoV species, Rhinolophus bat coronavirus HKU2 (RhHKU2), has been recognized. Based mostly on the clustering within the evolutionary tree, CoVs in RhHKU2 have fashioned two distinct evolutionary clades (A and B). Notably, the SADS-CoV, answerable for the swine acute diarrhea syndrome noticed in Guangdong province between 2016 and 2017, was categorized underneath HKU2-A31. Based on the phylogenetic evaluation primarily based on the ORF1ab, 30 out of the 42 CoVs with full genomes on this research had been discovered to belong to HKU2-A, and 12 CoVs had been grouped underneath HKU2-B (Fig. 5 and Supplementary Knowledge 9). The CoVs in HKU2-A had been predominantly derived from R. affinis and R. sinicus throughout Guangdong, Guangxi, Yunnan, and Hainan provinces. As well as, a small variety of CoVs inside HKU2r-A had been detected in R. ferrumequinum and M. laniger. The CoVs inside HKU2-B, nonetheless, had been all traced again to R. pusillus in Zhejiang, Guangxi, and Yunnan provinces.
Relating to the recombination evaluation for CoVs in Rhinacovirus, a complete of twenty-two recombinant sequences had been recognized (Fig. 5a), and all recombination occasions occurred inside the RhHKU2 species (Supplementary Knowledge 8). Nevertheless, phylogenetic analyses primarily based on ORF1a, ORF1b, and structural proteins indicated no vital adjustments within the clustering pattern of CoVs in Rhinacovirus. A singular deviation was famous within the S protein area, the place CoVs coincided in the identical evolutionary cluster with WA3607r-CoVs from Decacovirus, probably suggesting a shared evolutionary trait or a cross-subgenus recombination occasion. Importantly, it ought to be talked about that because of the lack of extant analysis findings on S1 or receptor-binding area (RBD) in CoVs inside Rhinacovirus, this investigation didn’t delve into such evaluation (Supplementary Fig. 3c).
The CoVs in Myotacovirus are primarily found within the genus Myotis, that are broadly distributed throughout Asia and Europe. At current, just one species has been confirmed, specifically Myotis ricketti alphacoronavirus Sax-2011 (MaSaX11). Phylogenetic evaluation anchored on ORF1ab disclosed that MaSaX11-related CoVs (MaSaX11r-CoVs) in Myotacovirus divided into two distinctive evolutionary clades (A and B) (Fig. 5 and Supplementary Knowledge 9). 16 of 20 newly recognized CoVs with full genomes on this research from M. ricketti in Guangdong belonged to MaSaX11-A, and the remainder of the 4 newly recognized CoVs belonged to MaSaX11-B from M. adversus and M. siligorensis distributed in Guangxi, Jiangxi, and Hubei provinces.
Recombination evaluation in Myotacovirus recognized 9 recombination sequences inside MaSaX11 (Fig. 5a and Supplementary Knowledge 8). Phylogenetic analyses carried out on ORF1a, ORF1b, and structural proteins counsel that the clustering tendencies of CoVs in Myotacovirus present comparatively minor variations throughout totally different evolutionary bushes (Supplementary Fig. 4). Within the S1 evolutionary tree (Supplementary Fig. 3c), totally different clusters of MaSaX11r-CoVs had been discovered to be intently associated to the host species.
The CoVs in Pedacovirus have been categorized into 4 species, specifically Porcine epidemic diarrhea virus (PEDV), Scotophilus bat coronavirus 512 (ScBt512), Alphacoronavirus BT020 (MyBt020), and Alphacoronavirus WA1087 (WA1087). Nevertheless, the taxonomic outcomes primarily based on seven CRDs revealed the existence of two evolutionary lineages of as but undetermined species in Pedacovirus, labelled as BatPeda_NL8 and BatPeda_NL9 (Fig. 3a). PEDV is acknowledged as an important pathogen inflicting pig epidemic diarrhea, which may induce acute diarrhea or vomiting, dehydration, and excessive mortality in neonatal piglets. Its widespread distribution in pig populations has been reported globally32. ScBt512 associated CoVs (ScBt512r-CoVs) had been primarily recognized within the genus Scotophilus from Southern China and Southeast Asia, with a small quantity additionally recorded in Africa. WA1087 associated CoVs (WA1087r-CoVs) have been detected in Chalinolobus gouldii in Australia. BatPeda_NL8 associated CoVs had been present in Murina leucogaster in China and R. ferrumequinum in South Korea. MyBt020 associated CoVs had been primarily discovered within the genus Myotis, which had been distributed throughout Asia and Europe (Fig. 5 and Supplementary Knowledge 9).
Phylogenetic evaluation primarily based on the ORF1ab confirmed that the 84 newly recognized CoVs (Full Genome) inside Pedacovirus are linked to ScBt512 (n = 55) and MyBt020 (n = 29). Though ScBt512r-CoVs are primarily derived from S. kuhlii, they’ve developed into two distinct evolutionary clades (A and B). These ScBt512r-CoVs are largely concentrated in Guangdong, Guangxi, and Hainan provinces. Notably, a CoV belonging to ScBt512-B has been detected in S. heathii from Yunnan province. MyBt020r-CoVs, alternatively, are primarily distributed throughout Yunnan, Guangxi, Guangdong, HongKong, Jiangxi, and Hubei provinces, additional clustering into six distinct evolutionary clades (A to F). CoVs in MyBt020-A and MyBt020-B had been primarily detected in M. ricketti, whereas these in MyBt020-C had been primarily recognized in M. siligorensis. a CoV from MyBt020-D was found in M. adversus in Jiangxi province. The genetic distance amongst BatPeda_NL9-related CoVs is substantial, and so they have been recognized in varied bat species of Myotis distributed in China and Korea. No CoVs belonging to WA1087, BatPeda_NL8, MyBt020-E and MyBt020-F had been recognized on this research.
In Pedacovirus, 60 recombinant sequences involving PEDV, BT020, BatPeda_NL9, and ScBt512 had been recognized (Fig. 5a), primarily concentrated inside BT020 and ScBt512. It’s noteworthy that the most important recombination occasions occurred inside the species, notably inside ScBt512 (Supplementary Knowledge 8). Phylogenetic analyses carried out on ORF1a, ORF1b, and structural proteins revealed vital variations in clustering tendencies between sequences from ScBt512-A and ScBt512-B. Furthermore, a pressure (OQ175214) present in M. ricketti inside BatPeda_NL9 clustered with BatAlpha_NL1r-CoVs in unclassified Alphacoronavirus. Notably, a definite pressure of Swine enteric CoV (SwineCoV, NC028806) that belongs to Tegacovirus displays vital recombination traits. In its genome construction, all areas other than the S protein align with the transmissible gastroenteritis virus (TGV) in Tegacovirus, whereas the S protein area is very analogous to PEDV in Pedacovirus (Supplementary Fig. 4). Moreover, the phylogenetic tree constructed via S1 confirmed that recombination occasions inside BT020 and ScBt512 primarily happen amongst hosts of the identical species or genus, aside from just a few strains in PEDV and BatPeda_NL9 (Supplementary Fig. 3c).
Remarkably, 4 unclassified Alpha-CoVs have been recognized inside E. serotinus in Jiangxi province. The taxonomic outcomes, drawn from seven CRDs, counsel that these newly found CoVs are categorized into BatAlpha_NL1 (Fig. 3a). BatAlpha_NL1r-CoVs had been primarily discovered within the genus Episticus, exhibiting broad geographical distribution, and have been present in China, South Korea, and the US. The examination of BatAlpha_NL1r-CoVs revealed 4 distinctive recombinant sequences, which offered profound recombination traits upon complete phylogenetic evaluation of ORF1a, ORF1b, and structural proteins (Fig. 5, Supplementary Fig. 4 and Supplementary Knowledge 9). Distinguished primarily within the S protein area, these viral strains separate themselves from the remainder of the BatAlpha_NL1r-CoVs contingent. Notably, they co-clustered with a CoV (OQ175214) from BatPeda_NL9 of Pedacovirus, which was initially recognized in M. ricketti in Jiangxi province, China.
Evolutionary, host vary, distribution, and recombination traits of Betacoronavirus in bats
Presently, there are 4 acknowledged CoV species inside Merbecovirus, together with Hedgehog CoV 1 (HeCoV1), Center East Respiratory Syndrome-related CoV (MERS), Pipistrellus bat CoV HKU5 (HKU5), and Tylonycteris bat CoV HKU4 (HKU4). Taxonomic evaluation primarily based on seven CRDs confirmed the absence of undetermined species inside Merbecovirus (Fig. 3a). MERS-CoV, categorized underneath the MERS species, has been recognized because the causative agent of the Center East Respiratory syndrome, exhibiting a case fatality price of as much as 30% in sufferers33. MERS-related CoVs (MERSr-CoVs) have a worldwide distribution, spanning Asia, Europe, Africa, and South America, and are categorized into two clades (A and B), MERS-A primarily originating from the Vespertilionidae household, and MERS-B primarily from the Camelidae household. As well as, HeCV1-related CoVs (HeCV1r-CoVs) are primarily distributed in Europe, with a minor inhabitants recognized in China. Notably, HKU5r-CoVs and HKU4r-CoVs had been all discovered from household Vespertilionidae in China. HKU5r- and HKU4r- CoVs, found inside the household Vespertilionidae in China, have their associated CoVs additionally recognized in Bangladesh and Cambodia in Asia (Fig. 6 and Supplementary Knowledge 9).
Phylogenetic evaluation primarily based on the ORF1ab confirmed in Merbecovirus a complete of 64 CoVs (Full Genome) had been newly recognized, involving HKU4 (n = 23), HKU5 (n = 33), and MERS-A (n = 8) CoVs (Fig. 6a). HKU4r-CoVs and HKU5r-CoVs exhibit vital host preferences. HKU4r-CoVs are largely present in T. pachypus throughout Guangxi and Guangdong provinces whereas HKU5r-CoVs are primarily detected in P. abramus in Guangdong, Guangxi, Jiangxi, Yunnan, and Zhejiang provinces. In distinction, MERSr-CoVs display a various vary of hosts, encompassing 9 bat genera, and are extensively distributed throughout Africa, Europe, and Asia. CoVs intently associated to MERS-CoV have been recognized from Neoromicia capensis and M. ricketti in South Africa. CoVs related to MERS have been recognized in 5 totally different bats of genus Vespertilio throughout Guangdong, Guangxi, Jiangxi, and Yunnan provinces, together with P. abramus, Io la, Eptesicus serotinus, T. pachypus, M. ricketti, H. larvatus, and are categorized into two distinct evolutionary clades (A and B) (Fig. 6b and c).
Inside the Merbecovirus, a recombination evaluation recognized 28 recombination sequences involving HeCV1, TyHKU4, PiHKU5, and MERS (Fig. 6). An essential side to notice is the notable variety of recombination occasions inside CoVs in Merbecovirus, occurring not solely inside viral species but in addition exhibiting a number of inter-species recombination occasions (Supplementary Knowledge 8). Phylogenetic analyses carried out on ORF1a, ORF1b, and structural proteins revealed that MERSr-CoVs exhibited pronounced clustering patterns within the phylogenies of S and E proteins, whereas such vital traits weren’t noticed in HeCV1r-, TyHKU4r-, and PiHKU5r- CoVs (Supplementary Fig. 5). Furthermore, within the RBD area, MERSr-CoVs had been discovered to cluster with HeCV1r-, TyHKU4r-, and PiHKU5r- CoVs, offering new insights into the evolutionary patterns of MERSr-CoVs (Supplementary Fig. 3d). The clustering traits of TyHKU4 and PiHKU5 had been intently related to their host species.
The CoVs in Nobecovirus are principally derived from bats within the Pteropodidae household, segregated into three distinct species, Rousettus bat coronavirus GCCDC1 (RoGCCDC1), Rousettus bat coronavirus HKU9 (RoHKU9), and Eidolon bat coronavirus C704 (EiBtC704). In distinction, taxonomic outcomes primarily based on seven CRDs denote an undetermined species in Nobecovirus, specifically BatNobe_NL10, which is primarily discovered from Pteropus poliocephalus and Pteropus rufus in Southeast Asia, Oceania and Africa (Fig. 3a). RoGCCDC1 associated CoVs (RoGCCDC1r-CoVs) and HKU9 associated CoVs (HKU9r-CoVs) are primarily discovered within the genus Eonycteris and Rousettus from Yunnan Province of China, South Asia, and Southeast Asia. EiBtC704-related CoVs (EiBtC704r-CoVs), primarily situated within the Pteropodidae household, have a large geographical distribution throughout Africa, together with Cameroon, Madagascar, and Congo. On this research, primarily based on the ORF1ab, 12 of 28 newly recognized CoVs (Full Genome) belonged to GCCDC1r-CoVs, which had been primarily discovered from Eonycteris spelaea and R. leschenaulti in Yunnan (Fig. 6 and Supplementary Knowledge 9). A complete of 16 CoVs had been recognized as HKU9r-CoVs, which had been primarily present in Rousettus sp. and Rousettus leschenaulti from Yunnan, Guangxi, and Guangdong provinces.
Inside the Nobecovirus, our recombination evaluation recognized 13 recombination sequences involving RoGCCDC1 and RoHKU9 (Fig. 6a), and recombination occasions primarily happen inside RoGCCDC1 or inside RoHKU9, with just one recombination occasion happens between RoGCCDC1 and RoHKU9 (Supplementary Knowledge 8). Phylogenetic analyses had been carried out on ORF1a, ORF1b, and structural proteins, which displayed comparatively constant clustering patterns for CoVs in Nobecovirus. Nevertheless, delicate variations had been noticed inside the phylogenies of the E protein and M protein of HKU9r-CoVs (Supplementary Fig. 5). Furthermore, a pattern of differentiation was noticed inside the evolution tree of RBD for HKU9r-CoVs (Supplementary Fig. 3d).
The CoVs in Hibecovirus are primarily related to the household Hipposideridae, which has been characterised by a single species till now. This research has uncovered a CoV belonging to Hibecovirus from H. pratti within the Hubei province. This virus shares a 98% id all through the genome with Bat Hp-betacoronavirus/Zhejiang 2013, which is the one recognized CoV species of Hibecovirus so far (Fig. 6 and Supplementary Knowledge 9). However, a big quantity of unclassified Hibecovirus was discovered within the genus Hipposideros from Africa, but a scarcity of full genome sequences precludes additional taxonomic classification of those viruses (Fig. 3b).
The CoVs in Sarbecovirus are primarily from the genus Rhinolophus. These embrace SARS-CoV and SARS-CoV-2 that may trigger critical respiratory illness in folks. Among the many 78 CoVs studied, 74 had been recognized as SARSr-CoVs, which developed into three distinct clades (A, B and C) (Fig. 6a). These SARSr-CoVs had been primarily particularly throughout a broad geographical vary, with distinct clusters in South and Central China, Northeast China, and throughout Africa, Europe, and East Asia (Fig. 6 and Supplementary Knowledge 9). By way of our investigations, 4 strains inside R. pusillus had been recognized, every with genome sequences demonstrating solely 87.8%–90% nucleotide id with the whole genome of SARS-CoV-2. Notably, these strains displayed obvious genomic recombination traits, incomes them the earlier classification as recombinant lineage (L-R)29.
Insights into the recombination technique of SARS-CoV-2 and the zoonotic potential of two SARS-related coronaviruses
A complete heatmap evaluation of the genomic construction of recognized SC2r-CoVs was carried out to additional probe their relationship with the L-R lineage (Fig. 7). This method enabled the categorization of SC2r-CoVs into seven distinct teams, primarily based on their phylogenetic relatedness to numerous areas of the SARS-CoV-2 genome. The detailed findings for every group, together with their geographical distribution, nucleotide id, and foremost host species, are proven in Fig. 7. The genomic construction heatmap uncovered these strains from Teams 3, 4, and 5 collectively embody the gene parts constituting SARS-CoV-2, suggesting that SARS-CoV-2 doubtless originated from a number of recombination occasions involving strains from these teams. Group 2 strains could possibly be interpreted as recombinants of Group 3 strains distributed primarily in China and Group 4 strains from the Indochina Peninsula, with ORF1a and ORF1b doubtlessly contributed by the respective teams. Subsequently, Group 1 strains might have developed from Group 2 by buying S protein fragments from Group 5.
So as to validate this speculation, a Genetic Algorithm for Recombination Detection (GARD) was applied, which recognized seven recombination breakpoints within the evolutionary trajectory of SC2r-CoVs (Fig. 7). These breakpoints, corresponding to numerous areas within the ORF1a (12,764), ORF1b (21,401), and the S protein (21,401 and 24,426) of SARS-CoV-2, align properly with our projected recombination places. It’s noteworthy that the strains comparable to BtSY2 (OP963576) from Group 3 and RShSTT182 (EPIISL852604) from Group 4, point out potential ongoing complicated recombination amongst SC2r-CoVs, which may doubtlessly give rise to novel CoV genotypes. In an extra enhancement of our evaluation, an evolutionary dendrogram, curated from the RBD of the Beta-CoV, and the aligned and collated RBDs of the Sarbecovirus, imparted insightful findings. Strains bearing a detailed kinship with the RBD sequence of SARS-CoV-2 emerged from a various array of hosts. These hosts spanned from the Malayan pangolin (MT121216_MP789) to various species of bats comparable to R. marshalli (BtSY2), R. pusillus (MZ937001_BANAL103), and R. malayanus (MZ937000_BANAL52), signifying the broad host vary of those viruses.
In distinction to different SC2r-CoVs, SARS-CoV-2 contains a furin web site of unknown origin nestled between the S1 and S2 subunits of its S protein. A complete survey of the presence of furin websites throughout all genome datasets (Dataset 1) was carried out to discover potential sources of this furin web site (Supplementary Fig. 7). Regardless of its rarity in Sarbecovirus, furin websites had been found within the S protein of varied coronavirus subgenera in Alpha- and Beta-CoV. Furin websites had been detected within the S protein of Amalacovirus, Setracovirus, Minunacovirus, Hibecovirus, Nobecovirus, Embecovirus, Merbecovirus, regardless of being exceptionally uncommon in Sarbecovirus. It’s price noting that the very best prevalence of furin websites was recorded in Embecovirus, Merbecovirus, and Hibecovirus, primarily occupying the area between S1 and S2. Contrarily, in different subgenera, the furin websites had been primarily confined inside the S2 subunit (Supplementary Fig. 3d and Supplementary Knowledge 10).
To elucidate the potential infectivity of the recognized CoVs in Sarbecovirus, an in-depth structural evaluation of their RBDs relative to the hACE2 receptor, a key determinant for mobile entry, was carried out. A comparative alignment of non-redundant RBDs throughout CoVs in Sarbecovirus, underscoring the contacting residues to SARS-CoV and SARS-CoV-2 interplay with hACE2, allowed for the visible inspection of the amino acid variability at these contact factors. This framework knowledgeable the choice of the RBDs of SARSr-CoV YN2020B (OK017852) and SC2r-CoV HN2021A (OK017803) for thorough investigation. YN2020B, attributable to its highest nucleotide similarity (95.8%) to SARS-CoV, and HN2021A, the consultant pressure we recognized to be related to SARS-CoV-2, had been chosen for deeper evaluation. YN2020B’s RBD displayed notable amino acid id and structural congruence with SARS-CoV, suggesting potential hACE2 receptor affinity regardless of 5 amino acid variations. In distinction, HN2021A’s RBD, whereas presenting a 65.92% amino acid id with SARS-CoV-2′s RBD, revealed vital structural divergences and variations at key contact residues, implying potential infectivity variations (Supplementary Fig. 8). These preliminary insights, although speculative, spotlight the necessity for additional experimental validation to definitively affirm the infectivity and host vary of those CoVs in Sarbecovirus.
Coevolutionary and cross-species transmission of bat CoVs
Based mostly on the reconstruction of ancestral hosts, we discovered that the evolutionary origins of Alpha-CoV might be traced again to the genus Myotis of household Vespertilionidae. Inside bat-associated Alpha-CoVs, the Rhinacovirus emerged first, predominantly originating from bats belonging to the genus Rhinolophus (Fig. 8a). As for Beta-CoV, its evolutionary origins had been related to genus Hipposideros of household Hipposideridae and genus Rattus. Amongst bat-associated Beta-CoVs, the Nobecovirus first fashioned, originating primarily from bat species inside the genus Rousettus (Fig. 8b). The MCC tree revealed a discernible coevolutionary relationship between the hosts and CoVs. Whereas most branches exhibit a transparent affiliation with a single-host household or genus, there are nonetheless some CoVs that present sturdy associations with different host households or genera, suggesting the incidence of frequent cross-species transmission occasions.
Therefore, on the genus stage of host classification, we recognized 30 Bayesian-supported intra-species host switches for Alpha-CoVs and 29 for Beta-CoVs (Fig. 8c and d). Alpha-CoV, there was proof of frequent host switches between hosts in household Vespertilionidae and people in different households, supported by excessive Bayesian elements, notably for genera Tylonycteris, Nyctalus, and Chalinolobus. A number of genera, comparable to Hipposideros, Megaderma, Rhinolophus, primarily functioned as donors (Supplementary Desk 1). As for Beta-CoV, Vespertilionidae emerged because the dominant donor, with vital help for host switches to genera Cynopterus, Eonycteris, and Hypsugo, all evidenced by Bayesian elements surpassing 100. The genus Eptesicus of Vespertilionidae confirmed proof of a swap to genera Pteropus and Aselliscus, with supporting Bayesian elements over 100. Pteropodidae bats primarily acted as receivers, with genus Micropteropus solely receiving switches from different genera, backed by Bayesian elements all exceeding 100. Equally, genera Myonycteris, Macroglossus, and Eonycteris functioned solely as receivers (Supplementary Desk 2).
