Mechanosensitive non-equilibrium supramolecular polymerization in closed chemical programs

Shake-induced out-of-equilibrium redox response of viologens in open and closed chemical programs

We first investigated the dissipative efficiency of viologen28,47, which is the central constructing block for our proposed dissipative supramolecular polymerization, in each open and closed chemical programs (Fig. 1a). The dissipative response cycles are pushed by shaking-induced redox reactions in an air-aqueous two section, by which O2 is the oxidant and N2H4 · H2O is the reductant. The primary experiment was executed with 3 mM of alkyl substituted viologen (C12-MV · +) at pH = 12 within the presence of N2H4 · H2O (10% v/v). A decayed colour change (okdiscount= 6.18 × 10−4 L · mol−1 · s−1, okoxidation = 1.50 × 104 L · mol−1 · s−1) was noticed through the shake-induced redox response of C12-MV2+, as proven in Fig. 1b and Supplementary Film 1. Time-dependent UV-vis spectra had been recorded as proven in Fig. 1c. Upon shaking a sudden disappearance of absorbance depth at 603 nm (similar to C12-MV · +) was seen, after which the absorption band step by step elevated, signifying the decay section. The lifetime of the shake-induced transient redox response of C12-MV · + is very depending on the variety of reductants. Because the equal of N2H4 · H2O elevated from 5% to twenty% (v/v), it was noticed that the lifetime of the transient C12-MV2+ drastically decreased from 300 min to 35 min (Fig. 1d and Supplementary Fig. 15), which is as a result of the excessive focus of the lowering agent resulted in a quicker discount of C12-MV2+. The conversion related to the colour change mechanism was additional investigated by time-dependent proton NMR. The addition of N2H4 · H2O into the answer of C12-MV2+ (pH = 12) induced the gradual disappearance of peaks at 8.5 and 9.1 ppm similar to the protons in C12-MV2+ over time, indicating the formation of radicals (C12-MV · +) (Supplementary Fig. 16). The corresponding indicators (8.5 and 9.1 ppm) reappeared upon shaking the pattern within the NMR tube. Moreover, EPR experiments on the fundamental resolution of C12-MV · + within the presence of the surplus quantity of N2H4 · H2O additionally supported the transient formation of C12-MV2+: sign (345 mT) similar to C12-MV · + disappeared by shaking and step by step elevated again (Supplementary Fig. 17). To show the repeatability of this transient system, refueling by subsequent shake was carried out and a number of cycles had been obtained, by which the variety of cycles may very well be additional elevated after reloading of reductant (Fig. 1e).

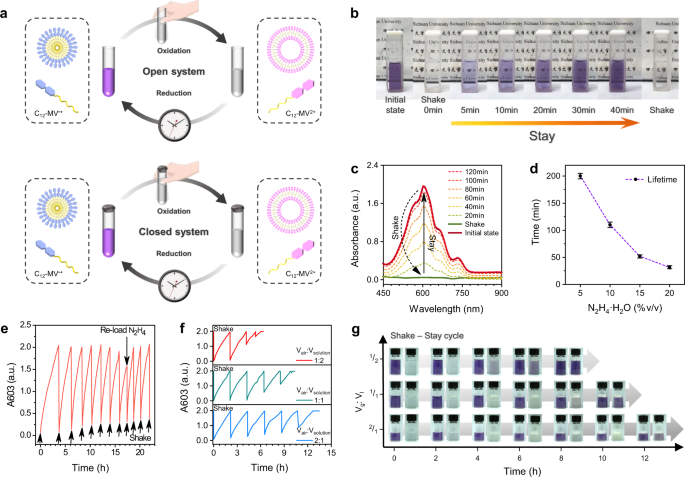

Fig. 1: Shake-induced out-of-equilibrium redox response of C12-MV·+ in an open and closed system.
figure 1

a Schematic illustration of shake-triggered redox of C12-MV·+ in an open and closed system. b Pictures for the answer of the shake-induced transient redox response. c Time-dependent UV-vis spectra depicting redox habits of C12-MV·+ (3 mM) triggered by shaking in a buffer resolution containing lowering agent (10% v/v). d Lifetime of shake-induced transient redox response in several quantities of N2H4 · H2O. Knowledge are introduced as the typical values ± s.d. (n = 3). e Repeated cycles of reduction-oxidation means of C12-MV·+ (3 mM) powered by hand-shake within the presence of N2H4·H2O (5% v/v), reloading (5% v/v). okdiscount = 6.18 × 10−4 L mol−1 s−1, okoxidation = 1.50 × 104 L mol−1 s−1. f Temporal evolution of absorbance depth at 603 nm for shake-induced redox response in a closed system. g Visualization of chemochromism beneath totally different quantity ratios of air-to-aqueous options for the repeated shake-stay cycles in a closed system, [C12-MV·+] = 3 mM, [N2H4 · H2O] = 10% (v/v).

Subsequently, we capitalized on the low solubility of air in water to plot a dissipative response that may be initiated by shaking inside a closed system. UV-vis measurements had been carried out to research the response course of. As displayed in Fig. 1f, the UV-vis spectra exhibited shake-induced reversible cycles (disappear and step by step increase of absorption band at 603 nm) which is analogous to the open system described above. Nonetheless, in comparison with the open system, the amount ratio of gas-to-liquid (Vg/Vl) has an amazing impact on the repeatability of those cycles because the air is mounted and restricted in a closed system. When Vg/Vl = 1:2, the redox response cycles may solely be repeated two instances and extra shake didn’t set off the redox response of C12-MV2+, which attributed to the entire consumption of oxygen (gasoline) within the closed system. As the amount ratio of gas-to-liquid elevated from 1:2 to 2:1, it was noticed that the repeated dissipative means of C12-MV2+ elevated from 2 instances to six instances. Additional proof for these outcomes was offered by the visualization of a number of cycles of transient discoloration pushed by shaking in a closed system (Fig. 1g). It was value noting that the redox cycles may proceed by merely introducing contemporary air, by which O2 was reloaded because the gasoline within the fuel section (Supplementary Fig. 18).

Shake-induced transient supramolecular polymerization

We constructed the mechanosensitive supramolecular self-assembly system based mostly on the examine of thermodynamically steady supramolecular polymerization of alkane substituted viologen (C12-MV2+) and pyranine (PN), by which the self-assembly was pushed by cost switch interplay (CT interplay) and amphiphilic interplay50. Shifting forward we wished to research the construction managed by the ratio of incoming PN to C12-MV2+ (Fig. 2a). By including PN to the C12-MV2+ resolution (1 mM), we noticed a visual development of the self-assembled construction in line with the viscosity exams as proven in Fig. 2b, and the extent of development trusted the focus of incoming PN. Nonetheless, including an excessive amount of PN results in a lower in resolution viscosity which is brought on by the disruption of the self-assembled construction. The impact on the controllable construction may very well be additional investigated by TEM exams. When 0.5 equivalents of PN had been added to the C12-MV2+ resolution, vesicles with a median diameter of 300 nm had been fashioned (Fig. 2c), whereas the addition of 1 equal of PN resulted within the formation of one-dimensional buildings with a diameter of 80 nm (Fig. 2nd). Nonetheless, the addition of 1.5 equivalents of PN resulted within the disruption of the fibers (Fig. 2e). These observations are essential for the event of chemically fuel-driven assemblies.

Fig. 2: Traits of structure-controlled supramolecular polymerization.
figure 2

a Schematic diagram of structure-controlled self-assembly depending on the ratios of C12-MV2+ and PN. b Viscosity of various ratios of C12-MV2+ and PN options. TEM photos depicting the self-assembly morphology ensuing from various quantities of PN added to C12-MV2+ resolution, 0.5 mM PN (c), 1 mM (d), and 1.5 mM (e). [C12-MV2+] = 1 mM.

Furthermore, a shake-driven transient supramolecular self-assembly system was constructed and the mechanism of transient polymerization was proven in Fig. 3a, which was just like the monomer C12-MV · +. In the course of the means of transient supramolecular polymerization, shake is the important thing set off for accelerating the diffusion of O2 from air into the answer. Upon shaking, just like the person monomer, the C12-MV · + turned to C12-MV2+ by oxidation and adopted by co-assembly with pyranine into supramolecular polymers. After shake is stopped, C12-MV2+ step by step turned again C12-MV · + by discount within the presence of extra quantity of N2H4 · H2O, which led to the decayed disassembly of C12-MV2+/ PN supramolecular polymers. Right here too, nitrogen fuel advanced because the waste however wouldn’t accumulate within the response resolution due to its low solubility in water, which endowed a novel property, waste traceless, with our proposed system (Supplementary Fig. 19). The kinetics of transient polymerization had been characterised by viscosity measurement and TEM. As proven in Fig. 3b, the diploma of self-assembly (α) 51, which may very well be confirmed in line with Eq. (1), after shaking within the resolution containing C12-MV2+ (3 mM) and PN (3 mM) within the presence of N2H4 · H2O (10% v/v) decreased (disassemble) step by step over 7 h, however one other shake triggered one other cycle of supramolecular polymerization. The reversible nature of supramolecular polymerization-depolymerization was displayed by performing not less than six cycles in a closed system (Fig. 3c). The variety of cycles of shake-induced supramolecular polymerization may very well be additional elevated by the re-addition of N2H4 · H2O and contemporary air. To watch the morphological modifications of transient polymerization in real-time, the system was characterised utilizing TEM at totally different time factors (Fig. 3d–g). TEM photos confirmed shake-triggered molar equal C12-MV2+ and PN (1 mM) self-assembled into well-defined nanofibers with 100 nm in diameter and several other a whole bunch of microns in size. Subsequently, the fibers step by step shrunk and reworked into brief fibers and vesicles when the answer was stored stagnant. The fibers reappeared after mechanical stimulation (Supplementary Figs. 20 and 21). The evolution in construction of supramolecular polymers over time seen from TEM is in keeping with the above viscosity measurements. These outcomes present clear proof of dynamic supramolecular polymerization.

Fig. 3: Traits of shake-induced transient supramolecular polymerization.
figure 3

a Schematic illustration of dissipative supramolecular polymerization based mostly on C12-MV2+ and PN triggered by shake. b Time-dependent evolution of viscosity development depicting the kinetics of transient supramolecular polymerization, C12-MV2+ (3 mM) and PN (3 mM) within the presence of N2H4 · H2O (10% v/v). c Polymerization-depolymerization cycles of C12-MV2+ and PN pushed by shake. dg TEM photos of resolution with C12-MV2+/ PN (1 mM/ 1 mM) within the presence of N2H4·H2O (10% v/v) earlier than and after shake over time. α is the extent of self-assembly of C12-MV2+/PN.

Transient supramolecular helix

The above design of charged supramolecular polymer additionally gives further electrostatic interactions, which may accommodate host-guest interactions for the formation of transient chiral supramolecular buildings by way of introduction of charged chiral molecule into the response resolution. To confirm this speculation, chiral L-(-)-Phenyllactic acid and D-(+)-Phenyllactic acid had been launched as an additive in two separate dissipative processes, respectively (Fig. 4a). Round dichroism (CD) was used to measure the time-dependent variation within the chirality of supramolecular polymers. Curiously, a robust CD sign max = 450 nm) was noticed when the aqueous resolution with C12-MV2+, PN, L-(-)-Phenyllactic acid and N2H4 · H2O upon shaking (Fig. 4b), indicating the formation of single handed supramolecular helix by the addition of L-(-)-Phenyllactic acid into supramolecular polymerization system. The CD indicators step by step disappeared as disassembly of C12-MV2+/ PN based mostly supramolecular polymer by discount of N2H4 · H2O. Equally, a shake-induced transition supramolecular helix of reverse handed helix is fashioned when D-(+)-Phenyllactic acid is launched into supramolecular polymerization system (Fig. 4e). Moreover, supramolecular helix was additionally characterised by TEM. Twisted micrometers lengthy fibers as a substitute of nanotubes had been fashioned when options (C12-MV2+/ PN, N2H4 · H2O) with further chiral L-(-)-Phenyllactic or D-(+)-Phenyllactic acid had been shaken (Fig. 4c, f). Within the presence of hydrazine hydrate, the supramolecular helical construction step by step decays into helices of 400 nm in size till vesicle formation when the answer stayed nonetheless over time (Fig. 4d, g and Supplementary Figs. 22 and 23), which was in line with CD measurement.

Fig. 4: Shake-induced transient supramolecular chirality.
figure 4

a Schematic illustration of transient supramolecular chirality polymer triggered by hand-shake. Time-dependent modifications in round dichroism sign depth demonstrating b L-(-)-Phenyllactic acid or e D-(+)-Phenyllactic acid led to a temporal helical polymer. TEM photos present the construction of helix supramolecular meeting fashioned within the presence of c L-(-)-Phenyllactic acid or f D-(+)-Phenyllactic acid. TEM photos present the morphology after dissipation of C12-MV•+/ PN within the presence of d L-(-)-Phenyllactic acid or g D-(+)-Phenyllactic acid.

Transient fluorescence and ultrasound guided patterns

EPR measurement on equimolar C12-MV2+/PN (1 mM) samples within the presence of N2H4 · H2O (20% v/v) was employed to characterize the dynamic habits of radical formation (C12-MV · +) through the disassembly course of which ultimately influences the supramolecular polymerization. The EPR spectrum of the answer measured instantly after the shaking present the quenching of radical sign at 345 mT and the sign is step by step elevated over time whereas the answer stands nonetheless through the measurement (Supplementary Fig. 24).

Basically, the radicals of viologens identified to quench on fluorescent dyes, fairly, in our case the answer of C12-MV · +/PN confirmed stronger emission than C12-MV2+/PN (Supplementary Desk 1, fluorescent quantum yield φf : 1.43% vs 0.29%). It’s because C12-MV · + itself tended to type nanoaggregates and is more likely to precipitate from the answer, which leaves little alternative for power switch between C12-MV · + and PN (Fig. 5a). Furthermore, the fluorescence depth of the answer was quickly quenched upon shaking the answer for few seconds, which was the results of aggregation brought on quenching (ACQ) of PN through the supramolecular polymerization course of48 (Fig. 5b, d, Supplementary Figs. 25, and 26, and Supplementary Film 2). Fluorescence of the answer step by step turned on when stayed it nonetheless over time, which indicated the system had distinctive shake-induced quenching properties. Strikingly, in distinction to the C12-MV2+/ PN resolution, the MV2+/ PN exhibited habits of shaking-induced fluorescence enhancement (Fig. 5a and Supplementary Film 3). Within the system of MV · +/ PN/ N2H4 · H2O, the exceptional solubility and non-aggregating property of MV · + facilitate a sturdy interplay with PN, resulting in a major power switch and consequent amplification of fluorescence quenching. And the fluorescence depth of resolution of MV · +/ PN/ N2H4 · H2O raised quickly after shaking the pattern for two s (Fig. 5c, e and Supplementary Fig. 9), which is as a result of the lowered power switch between MV · +and PN when the unconventional MV · + had been turned to MV2+ by oxidation of O2 (Supplementary Fig. 30).

Fig. 5: Transient fluorescence and ultrasound guided patterns.
figure 5

a Schematic illustration of shake-triggered transient fluorescence. b, c Pictures of shake-induced quenching and emission enhancement. d Fluorescence spectra of shake-induced quenching. 0.2 mM C12-MV2+, 0.1 mM PN, and N2H4 · H2O 5% (v/v). e Fluorescence spectra of shake-induced emission enhancement. 2 mM MV2+, 0.2 mM PN, and N2H4 · H2O 20% (v/v). f Schematic illustration of ultrasound-induced oxygen directed diffusion to type patterns. g Ultrasound-induced patterns for MV2+/PN, beneath UV mild (365 nm).

Subsequent, we sought to provide a naked-eye seen transient fluorescent sample impressed by the above shake-induced fluorescence cycles of quenching and enhancement. First, a sonication linked template was utilized to generate patterns on the answer of (MV2+ or MV · +)/PN/N2H4 · H2O, sadly, which couldn’t produce patterns as a result of the patterns had been destroyed by template when it was taken away from the aqueous resolution. Alternatively, impressed by Kim et al. use low-frequency-acoustic-vibration to provide transient patterns49, we used the ultrasound (an untouched shake) to drive the mechano-sensitive redox response for sample formation (Supplementary Figs. 34–50 and Supplementary Film 4–7). Our analysis has unveiled ultrasonic vibration as an unconventional technique for patterning that employs a novel imaging precept, diverging from that of low-frequency vibrations (Supplementary Figs. 42 and 43).

Ultrasound is mechanical waves that propagate in an elastic medium, dissipative resolution in our case, which accelerates the diffusion of oxygen from air to aqueous resolution at particular areas. We noticed that ultrasound wave within the response medium impacts the diffusion fee of the fuel in a sure route of the answer, and subsequently induces a directional oxidation course of which ends up in distinctive seen patterns (Fig. 5f and Supplementary Figs. 43b and 44). Relying on the viscosity of the medium, totally different patterns beneath seen mild could be obtained. Take the system (MV · +/PN/N2H4 · H2O) as a mannequin, the answer exhibited islands when the answer was subjected to sonication for two.5 min and stayed for 1 min. The patterns of islands step by step modified to concentric circles of diffusion patterns when the answer was loaded with extra PEG (10 kDa, 0–5%, weight contents) (Supplementary Figs. 34 and 35 and Supplementary Film 4). The modifications within the sample are because of the variation in resolution viscosity with elevated as loading extra PEG, which reduces the diffusion fee of oxygen and makes its oxidation movement extra steady. A steady movement sample could be obtained beneath sonication utilizing C12-MV2+ alone with out the addition of PEG because of the floor exercise of C12-MV2+. Furthermore, the scale of the central sample is immediately associated to the focus of C12-MV2+ which impacts the floor pressure of the answer (Supplementary Figs. 36 and 37 and Supplementary Film 6). Nonetheless, through the tried patterning of C12-MV2+/ PN, the aggregated C12-MV · + was troublesome to be dispersed once more by ultrasound and steady patterns couldn’t be obtained (Supplementary Figs. 39 and 40). Finest patterns additionally could be seen beneath each seen and UV (365 nm) mild because the resolution (MV · +/PN/N2H4 · H2O) had shaken-induced emission enhancement properties. Particularly, a clearly reproduced concentric coronary heart form sample was generated when the answer was on sonication for round 2 min and stayed 1 min. When the answer was on sonication, ultrasound induced liquid movement was accompanied by directional diffusion of oxygen to oxidize MV · +/PN for discoloration, which led to the formation of patterns (Fig. 5f and Supplementary Film 5). Moreover, we noticed the formation of various levels of heart-shaped patterns at distinct levels of diffusion through the steady ultrasound course of (Supplementary Fig. 46 and Supplementary Film 7). The patterns unfold all through the floor of the answer when the sonication for longer time (10 min) resulting in shiny inexperienced fluorescent from your entire resolution.

To check our ultrasound triggered patterns extra in depth, we in contrast parallelly our system with Kim’s work on audiosound triggered patterns. Audio-speaker and ultrasonic tools each generate sound wave, nonetheless, there are a number of totally different factors when low-frequency acoustic waves and ultrasound are used individually as a set off for the technology of reproducible spatiotemporal patterns of viologens. (1) Patterns are totally different: common spherical circles in Kim’s work (based mostly on low-frequency sound wave vibrations)47 whereas common coronary heart form in our work (based mostly on ultrasonic tools). (2) Proposed mechanism is totally different: patterning formation is because of totally different concentrations of oxygen on the antinodal and nodal positions on the water floor based mostly on audio-speaker47,48, due to this fact, the formation of sample is a replication of the vibrational ripples on the floor of the answer (Supplementary Figs. 42 and 43a), whereas the patterning formation beneath ultrasonic mode is because of the induced directional diffusion of oxygen, the diffusion route is proven in Supplementary Figs. 43b and 44. (3) Viscosity dependence is totally different: heart-shaped patterns beneath ultrasound could be resized, in contrast to common circles in low-frequency sound waves which aren’t adjustably resizable by altering the viscosity (Supplementary Fig. 45). We have now noticed that rising viscosity can improve the continuity of ultrasonically induced patterns and allow higher management over the scale of heart-shaped patterns. In response to Newton’s regulation of viscosity, the magnitude of viscosity is proportional to the magnitude of shear stress (inside friction). With the facility of ultrasound being fixed and the driving drive unchanged, a rise in resistance reduces the vary of affect of central diffusion movement on the encircling resolution.

The reversibility of this dark-fluorescent patterns-fully shiny cycle is dependent upon whether or not the system is opened or sealed. The totally shiny inexperienced fluorescent-on state would flip again to darkish state as soon as the answer was sealed and stayed nonetheless for round 30 min (Fig. 5g). Nonetheless, within the case of the system uncovered to the air, it turned to shiny island-type patterns (Supplementary Fig. 41) when the answer was stored nonetheless for about 30 min, after which step by step turned to shiny inexperienced all through of floor as a substitute of darkish state when conserving the answer for an extended time. Curiously, the form of mould impacts the directional sample. The mould modified from spherical to triangle or sq. form mould for ultrasound additionally induced transient patterning however not equal to the round form. It turned out that solely islands or brief traces patterns fashioned (Supplementary Figs. 49 and 52) when the answer containing C12-MV · +/PN/N2H4 · H2O in triangle or sq. form mould, which was the results of mechanic waves from ultrasound befell totally different reflections on totally different shapes of molds.

Shake-induced transient supramolecular polymerization of C12-NDI-PEG350

To confirm the generality of our design idea, we constructed one other shake-driven supramolecular self-assembly system based mostly on the reversible redox properties of naphthalenetetracarboxylic diimide (NDI). The amphiphilic compound C12-NDI-PEG350 was ready by a statistical condensation response of 1,4,5,8-naphthalenetetracarboxylic dianhydride with hydrophilic polyethylene glycol teams amine and hydrophobic dodecyl amine. As illustrated in Fig. 6a, the mechanism of transient polymerization of C12-NDI2−-PEG350 was just like the C12-MV · +/PN. Upon shaking, C12-NDI2−-PEG350 is oxidized by oxygen within the air to type C12-NDI-PEG350, resulting in the formation of supramolecular polymers by means of self-assembly. Within the presence of extra hydrazine hydrate, C12-NDI-PEG350 step by step returned to its lowered type (C12-NDI2--PEG350), accompanied by the discharge of nitrogen as a waste product. The colour change as time proven in Fig. 6b successfully demonstrated the shake-driven reversible redox response of C12-NDI2−-PEG350. We then investigated the kinetics of transient supramolecular polymerization by UV-vis spectra and TEM. The time-dependent UV-vis spectra confirmed that shaking resulted in a sudden lower within the absorption depth at 425 nm (similar to C12-NDI2−-PEG350) and a corresponding improve at 380 nm (similar to C12-NDI-PEG350), adopted by a gradual improve within the absorption peak at 425 nm and a gradual lower within the absorption peak at 380 nm, marking the decay section (Fig. 6c). Furthermore, TEM was utilized to watch the morphological modifications that occurred throughout transient polymerization, as depicted in Fig. 6d–h. TEM photos indicated that shake-driven C12-NDI-PEG350 self-assembled into nanofibers with a diameter of fifty nm. Nonetheless, the nanofibers step by step collapsed and reworked into brief fibers and eventually into nanorods when the answer stayed stationary. Notably, the supramolecular polymer was in a position to regenerate upon being subjected to new mechanical stimulation. These outcomes validate the broader scalability of our engineered mechanosensitive system.

Fig. 6: Shake-induced out-of-equilibrium redox response of C12-NDI-PEG350 in closed system.
figure 6

a Schematic illustration of dissipative supramolecular polymerization based mostly on C12-NDI-PEG350 triggered by shake. b Visualization of chemochromism of the answer indicating the shake-induced transient redox response, [C12-NDI-PEG350] = 1 mM, [N2H4 · H2O] = 10% (v/v). c Time-dependent UV-vis spectra depicting redox habits of C12-NDI-PEG350 (1 mM) triggered by shaking in a buffer resolution (pH = 8) containing lowering agent (10% v/v). dh TEM photos of resolution C12-NDI-PEG350 (1 mM) with the presence of N2H4 · H2O (10% v/v) earlier than and after shake over time.
