PDGFRα+ fibroblastic cells carry MCMV genomes throughout latent MCMV an infection in vivo
To handle whether or not fibroblastic cells is perhaps a website of MCMV latent persistence in vivo, we initially carried out a complete characterisation of the distribution of MCMV genomes in tissue-resident cells throughout mouse organs throughout latency in vivo. Particularly, we decided the variety of viral genome copies per 100,000 cells (henceforth known as MCMV genome load) in FACS-sorted fibroblastic-, endothelial-, epithelial- and tissue-resident macrophage populations from the liver, salivary glands (SG), spleen, visceral adipose tissue (VAT) and lungs of mice latently contaminated through intraperitoneal route (Fig. 1, for pre-gating schemes for all cell populations see Supplementary Fig. 1a). Intraperitoneal administration of MCMV is essentially the most broadly used MCMV an infection mannequin that ends in an infection of a number of organs as a consequence of virus systemic unfold within the acute section of an infection21,22. Populations of tissue-resident macrophages (Mϕ), resembling F4/80+CD11c+ SG Mϕ, lung alveolar Mϕ, liver Kupfer cells, spleen pink pulp Mϕ and VAT Mϕ have been recognized utilizing organ-specific gating methods23,24,25. Endothelial cells (EC) have been recognized as CD45– PDGFRα–CD31+ cells and have been proven to co-express CD146 within the liver (Supplementary Fig. 1b). Of observe, EC from VAT weren’t analysed as they may not be remoted in ample numbers. PDGFRα+ fibroblastic cells (PDGFRα+ FC) have been recognized as CD45–CD31–PDGFRα+ cells in VAT26, CD45–CD31–EpCAM–PDGFRα+ cells within the lungs27 and SG28; and as CD45–CD31–ITGB1+PDGFRα+ cells within the spleen29. Within the liver we centered on an outlined CD45–CD31–EpCAM–PDGFRα+ FC subset, vitamin A+ liver stellate cells30,31. We selected to deal with FC that specific PDGFRα since they’re comparatively well-defined throughout mouse organs32. To quantify MCMV genome load, genomic DNA remoted from sorted cell subsets was used as enter in a quantitative PCR assay with primers particular to viral gB gene and to mouse Pthrp gene. Absolute quantification was carried out utilizing serial dilutions of a plasmid carrying each gB and Pthrp sequences, in line with a beforehand described technique33, with a quantitation restrict of 10 copies of the plasmid normal in a single qPCR response (Supplementary Fig. 1c). Strikingly, PDGFRα+ FC carried the very best viral genome load throughout a number of tissues, within the liver (ca 2-fold), in SG (ca 10-fold) and most considerably, within the spleen (ca 100-fold) (Fig. 1b–i). Solely within the lungs have been MCMV genomes absent from PDGFRα+ FC (Fig. 1j, ok). EC carried MCMV genomes in liver and lungs, which is in step with earlier studies8,34, however their MCMV genome content material appeared decrease within the spleen and was barely detectable within the SG (Fig. 1b–ok). MCMV genomes have been detected in VAT Mϕ at ranges much like PDGFRα+ FC from the identical website, however have been absent or barely detectable in Mϕ from different organs (Fig. 1b–ok). Subsequent, to match the viral genome load in PDGFRα+ FC to that of circulating myeloid cells, we analysed monocytes remoted from the bone marrow (BM) or the spleen of latently contaminated mice. We detected <10 copies of MCMV genomes (Fig. 1l), which is 10–100-fold decrease than carried by PDGFRα+ FC in all organs examined besides the lungs. Importantly, MCMV genomes persevered in PDGFRα+ FC even 1 12 months after an infection, as proven for PDGFRα+ FC from the spleen, lymph nodes (LNs)35 and VAT (Fig. 1m–o). Collectively, these outcomes reveal that MCMV genomes are generally current in PDGFRα+ FC of a number of organs throughout MCMV latency in vivo.
The route of an infection determines the load of MCMV genomes in PDGFRα+ FC of latently contaminated lungs

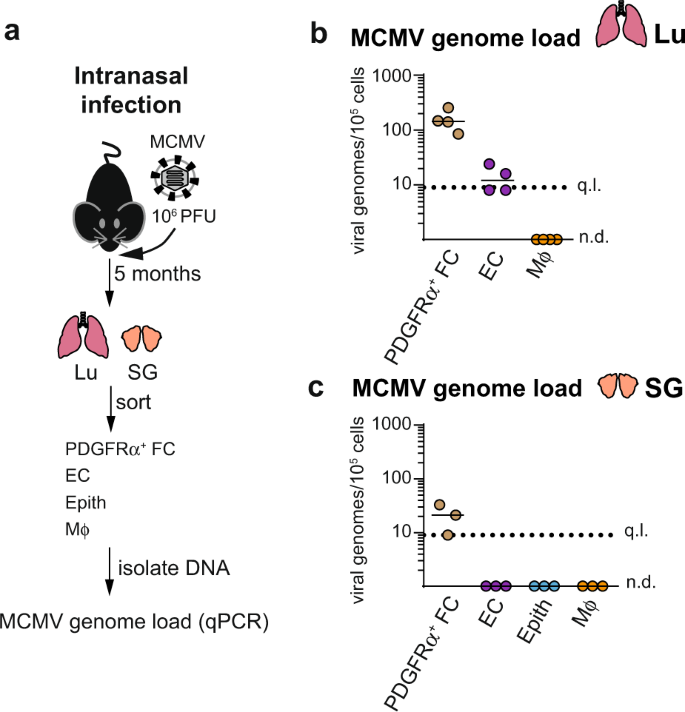

Our discovering that following intraperitoneal an infection MCMV genomes persist in PDGFRα+ FC in all organs besides the lungs was intriguing. We beforehand in contrast mucosal routes of an infection, resembling intranasal or intragastric, with intraperitoneal an infection and noticed that intranasal an infection is the extra environment friendly route of MCMV an infection for the lungs36. However, intranasal an infection ends in a extra restricted sample of virus unfold than the intraperitoneal an infection route, involving solely the lungs and SG, which was consistent with a earlier report37. Notably, the mobile websites of MCMV latency after intranasal an infection, which is believed to raised mannequin the pure MCMV an infection38, are but to be investigated. Subsequently, we subsequent decided MCMV genome load in PDGFRα+ FC, EC in addition to epithelial cells and Mϕ from the lungs and SG of mice latently contaminated through intranasal route (Fig. 2a).
Notably, PDGFRα+ FC carried the very best MCMV genome load of all examined subsets in each lungs and SG of mice contaminated intranasally (Fig. 2b, c). Thus, distinct routes of an infection end in variations in MCMV genome distribution in PDGFRα+ FC within the lungs. Whether or not this is because of putative variations within the publicity/accessibility of PDGFRα+ FC to the virus throughout acute an infection and/or putative differential results on virus persistence in PDGFRα+ FC stays to be clarified in future research.
Variations in MCMV genome load between PDGFRα+ and PDGFRα− FC throughout latency in vivo

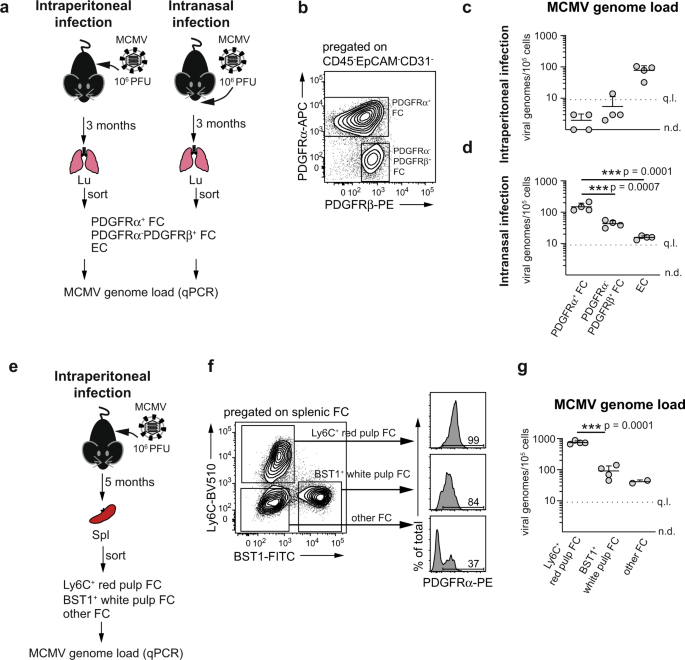

Subsequent, we requested whether or not different populations of FC, which don’t specific PDGFRα, carried related MCMV genome load in latently contaminated mice as PDGFRα+ FC. To this finish, we decided MCMV genome load in distinct subsets of FC from the lungs of mice latently contaminated both intraperitoneally or intranasally (Fig. 3a). The CD45–CD31–EpCAM– cell fraction from the lungs (for pre-gating see Supplementary Fig. 2a) consisted of two discrete compartments, a serious subset of PDGFRα+ FC, which is thought to comprise alveolar, peribronchial and adventitial fibroblasts27, and a minor FC inhabitants that lacked PDGFRα however expressed PDGFRβ, hereafter termed PDGFRα−PDGFRβ+ FC (Fig. 3b). Nearly all of PDGFRα−PDGFRβ+ FC expressed CD146 (Supplementary Fig. 2b), becoming with the common phenotype of mural cells39. Following intraperitoneal an infection, which as proven in Fig. 1k ends in the preferential distribution of MCMV genomes to EC, each PDGFRα+ FC and PDGFRα−PDGFRβ+ FC have been a minor supply of MCMV genomes with the load of <10 viral genome copies per 100,000 cells (Fig. 3c). Following intranasal an infection, which as proven in Fig. 2b ends in the preferential distribution of MCMV genomes to PDGFRα+ FC, viral genomes have been robustly detected in each FC subsets however the genome load in PDGFRα−PDGFRβ+ FC was ca 3-fold decrease in comparison with PDGFRα+ FC (one-way ANOVA F (2,9) with Dunnett’s a number of comparisons check, p = 0.0007, 95% confidence interval (CI) of the distinction = −156.4 to −56.57) (Fig. 3d). We additionally mapped the distribution of MCMV genomes throughout latency within the subpopulations of FC from the spleens of mice contaminated intraperitoneally (Fig. 3e). We fractionated CD45−CD31−ITGB1+ splenic FC29 (for pre-gating see Supplementary Fig. 2c) into Ly6C+ pink pulp FC, BST-1+ white pulp FC, and BST-1−Ly6C– FC (hereafter termed, different FC), that are primarily composed of CD146+ mural cells29. As proven in Fig. 3f, Ly6C+ pink pulp FC uniformly expressed excessive ranges of PDGFRα, BST-1+ white pulp FC contained a minor fraction of PDGFRα– cells whereas different FC consisted primarily of PDGFRα– cells. Notably, MCMV genome load was almost 10-fold increased in Ly6C+ pink pulp FC in comparison with BST-1+ white pulp FC (unpaired t-test, levels of freedom = 6, p = 0.0001, 95% CI of the distinction = 542.5 to 783.5) and to different FC (Fig. 3g). In sum, MCMV genome load in PDGFRα+ FC in latently contaminated lungs and spleen is increased than in PDGFRα– FC in these organs.
Silenced and stochastic viral gene transcription in PDGFRα+ FC from latently contaminated mice
Subsequent, we investigated if PDGFRα+ FC that carried viral genomes throughout MCMV latency in vivo fulfilled the formal standards of latent an infection. We first requested whether or not viral gene expression in PDGFRα+ FC from latently contaminated mice was in step with a putative ongoing lytic viral cycle. To this purpose, we measured the expression of viral transcripts from the immediate-early (ie1/ie3), early (M38) or late (M48/SCP) section of the lytic an infection in RNA remoted from PDGFRα+ FC from latently contaminated mice by RT-qPCR (Desk 1). We analysed PDGFRα+ FC from numerous organs and circumstances wherein they have been proven to hold MCMV genomes (Figs. 1 and a couple of), such because the spleen, VAT, SG and liver of mice contaminated intraperitoneally, and from PDGFRα+ FC from the lungs of mice contaminated intranasally. PDGFRα+ FC from the lungs of mice contaminated intraperitoneally, that are devoid of MCMV genomes (Fig. 1k), have been used as a destructive management. Liver EC and VAT Mϕ from mice contaminated through intraperitoneal route have been additionally included. Following reverse transcription, copies of cDNA representing every transcript have been quantified utilizing serial dilutions of MCMV-BAC33, with a quantitation restrict of 10 copies of the BAC normal in a single qPCR response (Supplementary Fig. 3). Though we used primer pairs that didn’t distinguish between viral DNA and RNA, our assay particularly detected viral RNA, since no optimistic alerts have been obtained when the identical RNA samples have been processed with the omission of reverse-transcriptase (Supplementary Desk 1). To establish that comparable quantities of cDNA have been used, we standardized our readouts on mouse Gapdh expression in all samples. The variety of cells comparable to the cDNA enter used per qPCR response was estimated for every pattern and was within the vary of 5,000-15,000 cells (Desk 1). Total, expression of viral mRNAs was detected solely sporadically and as no various hundred of copies (Desk 1). Particularly, ie1/ie3 expression was detected in 8, M38 in 2 and M48/SCP in 1 out of 18 examined PDGFRα+ FC samples, however not one of the samples expressed all three viral genes (Desk 1). This transcriptional profile is inconsistent with lytic an infection whereas it matches with the sample of viral transcription in latently contaminated lungs described not too long ago by Griessl et al., which was discovered to be intermittent and stochastic34. ie1/ie3 expression was detected in 1 out of three examined liver EC samples and in 1 out of three examined VAT Mϕ samples, indicating that viral transcription can also be silenced in EC and Mϕ carrying MCMV genomes throughout latency in vivo. In sum, the profile of viral gene expression in PDGFRα+ FC from latently contaminated mice is at odds with persistent lytic an infection.
PDGFRα+ FC carry latent MCMV in vivo
To check for useful standards of latency, we subsequent decided if MCMV can reactivate from PDGFRα+ FC purified from latently contaminated mice. To this purpose, we devised an ex vivo reactivation assay, wherein PDGFRα+ FC remoted from the lungs of mice latently contaminated through intranasal route have been seeded in half-area 96-well plates on the density of 100,000 cells per properly (ensuing within the deposition of ~100 MCMV genomes per properly) (Fig. 4a). Upon 7 days of ex vivo incubation, viral reactivation was assessed in particular person wells utilizing three standards: (i) visible inspection of plaque formation, (ii) IE1 immunofluorescence in addition to (iii) detection of infectious virus in tradition supernatant by plaque assay on monolayer of mouse embryonic fibroblasts (MEFs). Notably, infectious virus emerged in 30–50% of wells from 4 out of 4 samples of lung PDGFRα+ FC (Fig. 4b, c). As anticipated, virus didn’t develop out when lung PDGFRα+ FC remoted from mice contaminated intraperitoneally have been used, as they have been proven to be devoid of MCMV genomes (Fig. 4d, see additionally Fig. 1k). Additional importantly, no virus outgrowth was detected when lysates ready from lung PDGFRα+ FC remoted from mice contaminated intranasally have been incubated on a monolayer of MEFs for a similar period of time (Fig. 4e, f). The outcomes exhibiting that virus grew out solely from cells however not from cell lysates (although the assay was in a position to detect a single PFU of MCMV), argues that PDGFRα+ FC carried latent MCMV, which reactivated upon ex vivo cultivation. To verify this utilizing PDGFRα+ FC from one other tissue, but additionally to check the kinetic of reactivation occasions, virus reactivation was additionally monitored in PDGFRα+ FC remoted from the VAT of mice latently contaminated through intraperitoneal route. Mice have been administered with reporter MCMV expressing main IE promoter-driven GFP (MCMVIE-GFP)29, which resulted in the identical latent viral load in VAT PDGFRα+ FC (Supplementary Fig. 4) whereas it enabled monitoring of the kinetic of re-initiation of lytic gene transcription by life cell imaging (Fig. 4g). By 7 days of in vitro incubation, the virus grew out in ~10% of wells from 9 out of 10 samples (Fig. 4h, i). Virus outgrowth was particularly related to the presence of PDGFRα+ FC, since cultivation of VAT cell preparations that had been depleted of PDGFRα+ FC didn’t yield any virus (Fig. 4j). It must be famous that this end result doesn’t present proof for the shortage of reactivation from VAT Mϕ or EC for the reason that tradition circumstances used weren’t optimized in direction of supporting survival of those cell varieties. As proven for lung PDGFRα+ FC, virus was recovered solely from reside PDGFRα+ FC from VAT and never from cell lysates (Fig. 4k, l). Thus, the virus might reactivate from PDGFRα+ FC from each lungs and VAT, with frequency correlating with the extent of IE gene transcription in these cells, which was decrease in VAT than within the lungs (Desk 1). Based mostly on the emergence of preliminary GFP+ cells, re-initiation of lytic gene transcription occurred both 1.5–2 days after seeding (50% of reactivations) or no ahead of 4–5 days after seeding (40% of reactivations) (Fig. 4m). Thus, reactivation occasions appeared to comply with a biphasic kinetic. Collectively, these outcomes point out that MCMV latently persists in PDGFRα+ FC in vivo.
PDGFRα+ FC are a website of lytic virus replication throughout major MCMV an infection
The obvious latent persistence of MCMV in PDGFRα+ FC in vivo implied the query whether or not or not they may additionally help productive virus cycle throughout major MCMV an infection. To straight assess the permissiveness of PDGFRα+ FC for lytic MCMV an infection, we purified PDGFRα+ FC from the lungs of naive mice and contaminated them ex vivo with recombinant MCMVtFP-GRB, which expresses main IE promoter-driven inexperienced fluorescent protein (GFP) and late gene promoter-driven pink fluorescent protein (mCherry) (Fig. 5a). Evaluation of viral replication kinetics throughout in vitro tradition demonstrated that PDGFRα+ FC are permissive for lytic MCMV an infection (Fig. 5b, c). To handle this in vivo, we first investigated if lytic gene expression was induced in PDGFRα+ FC through the acute section of an infection with MCMV. On condition that spleen turns into contaminated with MCMV inside hours following intraperitoneal inoculation22, we remoted PDGFRα+ FC from the spleens of mice 12 h put up intraperitoneal an infection, and analysed the expression of viral genes ie1/3, M38 and M48(SCP) by RT-qPCR. At 12 h put up an infection, splenic PDGFRα+ FC expressed excessive ranges of all three viral transcripts at ranges not less than 1000-fold increased than in any examined subset of PDGFRα+ FC from latently contaminated mice (Desk 2, see additionally Desk 1). Subsequently, splenic PDGFRα+ FC supported lytic viral transcription shortly after the inoculation of mice with MCMV. To verify that PDGFRα+ FC additionally supported productive replication of the virus in vivo, we used mice heterozygous for Pdgfra-CreERT2 knock-in allele40 (hereafter termed Pdgfra-CreERT2 (+/−), that specific tamoxifen-activatable Cre recombinase from one endogenous Pdgfra locus whereas the opposite locus is preserved, and contaminated them with a reporter virus MCMVfloxSTOP-GFP41. MCMVfloxSTOP-GFP undergoes deletion of the cease cassette stopping GFP expression in cells that specific lively Cre recombinase and was used beforehand with Tie2-Cre or Alb-Cre mice to outline virus replication in endothelial cells or in hepatocytes11. Following the an infection of Pdgfra-CreERT2 (+/−) mice with MCMVfloxSTOP-GFP it’s anticipated that the viruses that replicate in PDGFRα+ FC develop into genetically recombined so their progeny offers rise to GFP+ plaques on monolayers of MEFs. Pdgfra-CreERT2 (+/−) mice have been contaminated with MCMVfloxSTOP-GFP through the intraperitoneal route on day 0, fed tamoxifen from −1 to three days put up an infection to activate the Cre recombinase, and sacrificed on day 4 put up an infection (Fig. 5d). Organ lysates from the spleen, VAT, liver and lungs have been used to find out the frequency of GFP+ plaques. On day 4 put up an infection, GFP+ virus was detected as ~10% of plaques within the liver, ~20% within the VAT and ~50% within the spleen and lungs, though within the latter organ the share of GFP+ plagues might solely be reliably measured in 5 out of 10 samples as a consequence of typically low infectious virus titer on this organ (Fig. 5e, f). The emergence of GFP+ virus was fully depending on the presence of Cre recombinase since related virus titer however no GFP+ plaques have been present in organs of contaminated Cre-negative littermate controls (Supplementary Fig. 5a–b). Thus, a number of organs contained the progeny of viruses that had replicated in PDGFRα+ cells, indicating that PDGFRα+ FC play a task in MCMV in vivo replication. Of observe, on condition that MCMV might have unfold from the websites of preliminary replication inside 4 days, it isn’t doable to differentiate whether or not the virus had replicated in PDGFRα+ FC current within the given organ or elsewhere. In sum, PDGFRα+ FC supported each productive an infection and latent MCMV persistence in vivo.
Stat1 is required for MCMV genome persistence in fibroblastic cells in vivo

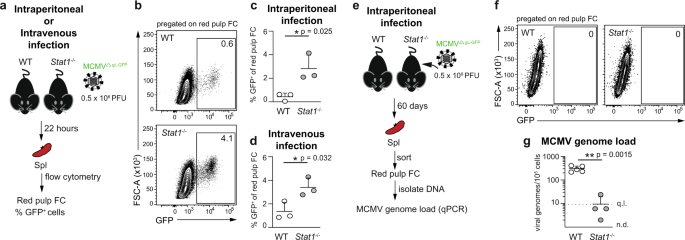

Subsequent, we sought to establish host pathway/-s that have an effect on MCMV’s capacity to latently persist in PDGFRα+ FC in vivo. We hypothesized that the identical sign/-s that inhibit lytic cycle entry by MCMV might concomitantly allow the virus to determine and/or preserve latent an infection. Since IFNβ is ample to silence IE transcription20, we selected to evaluate the putative involvement of STAT1, which crucially mediates responses to IFNs16 by testing lytic and latent MCMV an infection in Stat1−/− mice. To avoid the caveats linked to the elevated sensitivity of Stat1−/− mice to MCMV, we generated and used a single-cycle GFP-reporter MCMV mutant, which we title MCMVΔgLGFP. To this impact we disrupted the gene for the important virion glycoprotein L (gL/M115) in our GFP reporter virus, MCMVIE1/3-GFP29 on a Δm157 background. MCMVs missing gL could be propagated in gL-complementing cells, to generate virus shares consisting of pseudotyped gL+ virions which might be in a position to infect and replicate for one cycle in gL poor cells, whereupon their progeny virions will lack the gL and thus can not unfold additional to different cells42,43,44. As proven in Fig. 6a, WT and Stat1−/− mice have been contaminated with MCMVΔgLGFP, adopted by evaluation of lytic an infection and latent persistence of the virus respectively at 22 h and 60 days put up an infection in fibroblastic cells within the spleen, that are identified to be straight contaminated by MCMV virions injected intraperitoneally or intravenously22. We centered particularly on pink pulp FC, firstly as a result of their excessive MCMV genome content material throughout in vivo latency supplied a broad dynamic vary and secondly, to remove confounding results as a consequence of a possible change within the composition of spleen stromal cells in Stat1−/− mice. Since Ly6C is an IFN-regulated gene, Ly6C+ pink pulp FC have been recognized as PDGFRα+BST-1−CD146− FC, as beforehand reported29. The abundance of pink pulp FC was comparable between WT and Stat1-/- mice (Supplementary Fig. 6a). At 22 hours after intraperitoneal injection of MCMVΔgLGFP, Stat1−/− mice confirmed a better proportion of GFP+ pink pulp FC (unpaired t-test, levels of freedom = 4, p = 0.025, 95% CI of the distinction = 0.4917–4.295) (Fig. 6b, c). This phenotype was not a results of putative variations within the transport of the virus from the peritoneum to the spleen between WT and Stat1−/− mice for the reason that proportion of GFP+ pink pulp FC was additionally elevated in Stat1−/− mice following intravenous injection of MCMVΔgLGFP (unpaired t-test, levels of freedom = 4, p = 0.0324, 95% CI of the distinction = 0.2798–3.807) (Fig. 6d). In step with being lytically contaminated, GFP+ pink pulp FC sorted from WT and Stat1−/− mice 22 h put up an infection expressed excessive ranges of ie1/ie3, M38 and M48(SCP) transcripts (Desk 3). Subsequently, extra pink pulp FC turned lytically contaminated within the absence of STAT1. At 60 days put up an infection (Fig. 6e), pink pulp FC have been devoid of GFP+ cells (Fig. 6f) and viral gene expression was silenced (Desk 3). Notably, whereas MCMV genomes persevered in pink pulp FC from WT mice, pink pulp FC have been depleted of MCMV genomes in Stat1−/− mice (unpaired t-test with Welch’s correction, levels of freedom = 4.126, p = 0.0015, 95% CI of the distinction = −402.4 to −185.8) (Fig. 6g). This distinction was not current on the onset as indicated by the undiminished viral genomic masses in each GFP+ and GFP– pink pulp FC from Stat1−/− mice at 22 h put up an infection (Supplementary Fig. 6b). Collectively, the above knowledge implicate a twin position of STAT1 as a destructive regulator of lytic MCMV an infection and a optimistic regulator of latent MCMV persistence in fibroblastic cells in vivo. Whether or not the Stat1-dependency of latent MCMV persistence in fibroblastic cells in vivo outcomes from putative direct regulation of MCMV latency by STAT1 or whether or not it is because of different putative cell intrinsic or extrinsic results of STAT1, resembling regulation of contaminated cell survival or their immune management, would require clarification by future research.
