Direct encapsulation of biomolecules in semi-permeable microcapsules produced with double-emulsions

Manufacturing of semi-permeable PEG-DA 258 microcapsules utilizing PIPS

As PEG derivatives are usually thought of biocompatible, bioinert, and biodegradable7, we examined numerous PEG-DAs of low molecular weight, resembling PEG-DA MW 700, PEG-DA MW 575 and PEG-DA MW 258 as precursors for the manufacturing of microcapsules after photopolymerization by UV illumination. For PEG-DA with MW 575 or greater, their water miscibility prevented us to readily kind double-emulsions. Leonavicene et al. not too long ago confirmed that it’s potential to acquire a two-phase system by combining PEG-DA MW 575 and excessive molecular weight PEG-DA MW 8000 within the internal part and kind core-shell capsules utilizing PEG-DA as a capsule materials8. Nonetheless, we thought of an alternate method in utilizing PEG-DA MW 258 as a possible polymer precursor as a result of its water immiscibility, as was additionally reported by Nam et al.5. This property of PEG-DA MW 258 allowed us to make use of it as the center part in double-emulsions and was suitable with droplet era in a PDMS system (Fig. 1A). To kind the double-emulsions, we used an aqueous steady part supplemented with 10% PVA. The PEG-DA 258 center part is supplemented with a photoinitiator (HMPP) and surfactant (Span80), with the elective addition of a light natural solvent. We produced monodisperse double-emulsions in a jetting regime with circulate charges of 2500 (upmu )L/h for the aqueous steady part, 200 (upmu )L/h for the PEG-DA MW 258 center part, and 250 (upmu )L/h for the aqueous internal part (Fig. 1B). Curiously, the double-emulsions might be generated with out requiring any floor remedy of the system owing to the non-planar geometry of the PDMS system which prevents wetting of the gathering channel by the hydrophobic middle-phase.

Determine 1
figure 1

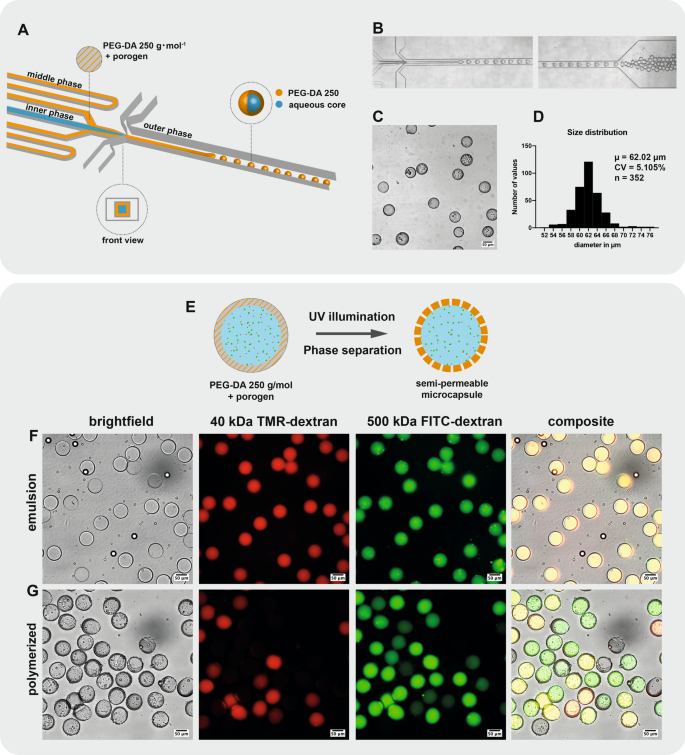

Manufacturing of semipermeable microcapsules in a PDMS system with 3D geometry. (A) Schematic illustration of the PDMS system with 3D geometry. W/O/W double-emulsions are generated with a PEG-DA 258 center part encapsulating an internal aqueous core. (B) Micrographs of the PDMS system operation. (C) Brightfield picture of microcapsules obtained after UV polymerization of the collected double-emulsion. (D) Dimension distribution of a consultant batch of polymerized microcapsules. (E) Schematic illustration of PIPS upon UV illumination. 15% Butyl-acetate (porogen) was blended with PEG-DA 258 to kind semi-permeable microcapsules. (F) Within the collected double-emulsion, each excessive molecular weight 500 kDa FITC-dextran and decrease molecular weight 40 kDa RITC-dextran are retained within the internal aqueous part. (G) After UV polymerization and PIPS, pores are shaped within the capsule shell and capsules turn into semi-permeable.

We collected double-emulsions in a UV-transparent cuvette for quarter-hour, after which the capsules had been polymerized in batch by UV exposition. After polymerization we obtained monodisperse capsules with a imply diameter of 62 (upmu )m (Fig. 1C,D). The coefficient of variation was shut to five%, in accordance with earlier outcomes utilizing comparable PDMS units9. The capsule shell was estimated from inspecting microscope pictures to be between 5 and 10 (upmu )m thick. Our outcomes not solely affirm the statement from Nam et al.5 that water-immiscible PEG-DA MW 258 is an appropriate center part, however demonstrated its compatibility with double-emulsion era in a PDMS system which doesn’t require any floor remedy, and resulted within the manufacturing of monodispersed poly-PEG-DA 258 microcapsules with porous skinny shells (Fig. 1E–G).

Determine 2
figure 2

PEG-DA 258 microcapsules are semi-permeable and the pore dimension will be adjusted by altering the porogen. Schematic illustration of PEG-DA 258 microcapsules produced utilizing (A) 15% butyl-acetate or (C) 15% 1-decanol as porogen. 15% butyl-acetate microcapsules selectively allowed the permeation of 10 kDa RITC-dextran whereas excluding 32.7 kDa EGFP. The bigger pore dimension of microcapsules produced with 15% 1-decanol as porogen allowed the diffusion of each fluorescent molecules. Microcapsules produced utilizing (B) 15% butyl-acetate or (D) 15% 1-decanol porogen had been immersed in an answer containing 10 kDa RITC-dextran and 32.7 kDa EGFP. The evolution of the fluorescent sign within the Cy3 and FITC channels was noticed after 5 min, 1 h and 24 h. Whereas microcapsules produced utilizing 15% 1-decanol had been permeable to each fluorescent molecules, we clearly noticed the selective permeability of microcapsules produced utilizing 15% butyl-acetate as a porogen.

To provide semi-permeable capsules, we used the delicate inert solvent butyl-acetate added to the center part serving as a porogen in PIPS4,10. Butyl-acetate was utilized by Kim et al.4 to kind nanopores with diameter under 30 nm in a skinny shell composed of a cross-linked community of ethoxylated trimethylolpropane triacrylate (ETPTA) and glycidyl methacrylate (GMA). To guage the permeability of the semi-permeable capsules, we added 500 kDa FITC-dextran and 40 kDa TMR-dextran to the internal aqueous part, and observe that just about 90% of the polymerized capsules retained the five hundred kDa FITC-dextran after the capsules had been extensively washed by successive centrifugation in aqueous buffer and adopted by a 24h incubation in buffer at 4 (^{circ })C (Fig. 1G). Alternatively, solely about 40% of the capsules retained the decrease molecular weight 40 kDa TMR-dextran. These outcomes confirmed that some capsules are semi-permeable, as evidenced by capsules by which solely the upper molecular weight fluorophore is retained. Regardless that the dimensions cut-off couldn’t be exactly decided from this experiment, we estimated it to be properly under 500 kDa and probably near the dimensions of the smaller fluorophore of 40 kDa.

To higher characterize the semi-permeability, we ready empty capsules and positioned them in an answer of fluorescent molecules of smaller molecular weights (Fig. 2). We positioned empty capsules produced utilizing 15% butyl-acetate porogen in an answer containing each 10 kDa RITC-dextran and 32.7 kDa EGFP (Fig. 2A,B). We noticed that the majority capsule confirmed a comparatively fast enhance in sign within the crimson fluorescent channel, akin to the decrease molecular weight 10 kDa RITC-dextran. After 1 h incubation, most capsules confirmed a crimson fluorescent sign, and all capsules displayed a crimson fluorescent sign after 24 h incubation. On the identical time, the vast majority of these capsules confirmed no sign enhance within the inexperienced fluorescent channel akin to the 32.7 kDa EGFP. By superimposing the sign from the 2 fluorescent channels, we may clearly see {that a} majority of the capsules had been semi-permeable and excluded EGFP for at the least 24 h whereas permitting diffusion of the ten kDa RITC-dextran into their inside. We noticed nevertheless some variability within the permeability of the capsules, with some capsules showing permeable to EGFP already after a couple of minutes of incubation, whereas a number of capsules nonetheless excluded 10 kDa RITC-dextran after 1 h.

We obtained semi-permeable capsules with a special dimension cutoff utilizing 1-decanol as a porogen. The usage of 1-decanol was reported by Kim et al.4 to create bigger pores within the ETPTA/GMA polymer shell as a result of a special interplay parameter of 1-decanol with the forming polymer. Right here, we present that capsules produced with 15% 1-decanol porogen in PEG-DA 258 additionally resulted in greater permeability than capsules produced with the butyl-acetate porogen (Fig. 2C,D). We noticed a rise in inexperienced fluorescent sign akin to 32.7 kDa EGFP within the capsule inside after only some minutes incubation and all capsules had been fluorescent after 24 h. As well as, all capsules had been fully permeable to 10 kDa RITC-dextran. To change capsule permeability, we additionally explored using a smaller fraction of porogen with 10% butyl-acetate. We observe {that a} important proportion of the capsules had no fluorescent sign akin to 10 kDa RITC-dextran after 1 h of incubation, suggesting a decrease permeability cut-off (Supplementary Fig. S1). We additionally used totally different solvents as porogen resembling 15% octanol (Supplementary Fig. S2) which yielded capsules of intermediate permeability between what was noticed utilizing 15% butyl-acetate or 15% decanol porogen. Utilizing 15% 2-ethyl-1-hexanol (Supplementary Fig. S3), we produced capsules with a permeability comparable to fifteen% butyl-acetate. These outcomes reveal that it’s potential to change capsule permeability by various porogen content material and composition, and that totally different solvents are suitable with our microfluidic manufacturing of semi-permeable capsules.

Determine 3
figure 3

Direct encapsulation of proteins inside semi-permeable PEG-DA 258 capsules. EGFP was added to the aqueous internal part for direct encapsulation. (A–C) Microscope pictures of double-emulsions exhibiting a fluorescent sign within the FITC channel. (D–F) After polymerization, the fluorescent sign was nonetheless current within the inside of most capsules. Variability within the pore dimension or a dimension cutoff near the 32.7 kDa EGFP resulted in some protein leakage. (G) Fluorescent depth profile of the capsule indicated in panel E. The fluorescent profile suggests a homogeneous distribution of EGFP within the inside of the capsule with out protein adsorption to the shell materials. (H–J) Microscope pictures of polymerized capsules containing FITC-streptavidin after direct encapsulation. Fluorescent sign is current in all capsules, suggesting that the pore dimension is simply too small for FITC-streptavidin leakage. (Ok) Fluorescent profile throughout two capsules from panel I. The profile suggests a homogeneous distribution of FITC-streptavidin within the inside of the capsule with out protein adsorption to the shell materials.

Direct encapsulation of proteins

Subsequent, we present that we will immediately encapsulate proteins in semi-permeable poly-(PEG-DA 258) microcapsules with out adsorption to the polymeric shell or lack of operate. We chosen 15% butyl-acetate as porogen to permit the retention of proteins and enzymes within the inside of the capsules, whereas permitting the transport of smaller biomolecules throughout the capsule shell. We encapsulated 32.7 kDa EGFP inside our microcapsules by including it to a closing focus of two (upmu )g/mL to the internal aqueous part. EGFP fluorescence sign was noticed within the double-emulsion with none signal of precipitation(Fig. 3A–C), and, as soon as polymerized, the capsules displayed a homogeneous fluorescent profile with none signal of protein adsorption to the capsule materials (Fig. 3D–G). We additionally encapsulated 60 kDa FITC-labelled streptavidin within the aqueous internal part to a closing focus of fifty (upmu )g/mL, and the fluorescent sign profile within the polymerized capsules indicated no signal of protein adsorption on the capsule shell (Fig. 3H–Ok). After incubation in PBS for twenty-four h, we noticed {that a} proportion of the EGFP-containing capsules didn’t comprise any fluorescent sign (Fig. 3D–F). This statement suggests a permeability cutoff near the dimensions of those fluorescent biomolecules. We additionally anticipate some variability within the pore dimension of the capsules because of the batch UV polymerization course of, throughout which the UV depth may barely differ relying on the place of the capsule within the cuvette. Additionally, some capsules might need been damaged or broken which might result in the discharge of their cargo. With the bigger molecular weight 60 kDa FITC-streptavidin, we noticed that the majority polymerized capsules contained fluorescent sign after aqueous washes, indicating a dimension cutoff under the dimensions of FITC-streptavidin.

We demonstrated that the poly-PEG-DA 258 shell obtained after UV polymerization is suitable with direct protein encapsulation. The supplies used didn’t result in adsorption of proteins to the capsule shell and the polymerization-induced part separation course of shaped pores small enough to retain proteins with molecular weights of 32.7 kDa and above.

Determine 4
figure 4

Direct encapsulation of purposeful enzymes in semi-permeable PEG-DA 258 microcapsules. A luciferase-GFP fusion protein was immediately encapsulated in semi-permeable capsules. The fluorescent fusion protein permits for the visualization of the enzyme (A) within the double-emulsion, and (B), within the polymerized capsules. (C) The encapsulated econoLuciferase reveals a powerful sign in a bioluminescent assay. Direct encapsulation of (beta )-galactosidase. (D,E) Enzyme-containing capsules had been dispersed in trehalose and air-dried at 37 (^{circ })C. (F) After rehydration with an answer containing CPRG, the substrate was hydrolyzed to chlorophenol crimson. (G) The answer was imaged with a colour digital camera mounted on an inverted microscope with (occasions ) 4 magnification. Capsules displayed a purple colour of their inside, indicative of (beta )-galactosidase enzymatic exercise.

After profitable encapsulation of fluorescent proteins, we encapsulated enzymes and carried out enzymatic assays with the produced capsules. We used a recombinant GFP-luciferase fusion protein (econoLuciferase, Biosynth), which allowed affirmation of encapsulation by measuring its fluorescent sign. The molecular weight of the fusion protein being over 90 kDa led to retention of the enzyme within the inside of the microcapsules. Certainly, we noticed that each the double-emulsion and polymerized capsules contained a fluorescent sign from the econoLuciferase fluorescent fusion protein. In each instances, we noticed a speckled distribution of the fluorescent sign which may be as a result of some precipitation within the 10% PVA internal resolution (Fig. 4A,B). The econoLuciferase-containing capsules had been positioned in an answer containing D-luciferin, and we measured a bioluminescent sign two orders of magnitude greater than the sign noticed for empty capsules (Fig. 4C). These outcomes demonstrated that an lively enzyme will be encapsulated in poly-PEG-DA 258 microcapsules, with the semi-permeable shell permitting diffusion of the substrate D-Luciferin into the core of the microcapsules to generate a bioluminescent sign.

In a second instance, we confirmed that capsules will be dried and rehydrated whereas preserving enzyme operate. We encapsulated (beta )-galactosidase, a tetrameric enzyme with a molecular weight of 465 kDa. To indicate that enzyme-containing capsules will be dried and retain exercise upon rehydration, we dispersed (beta )-galactosidase-containing capsules in a 0.5 M trehalose resolution and dried small drops in a single day in an incubator at 37 (^{circ })C leading to trehalose pellets (Fig. 4D,E). After rehydrating the dried pellets with a Chlorophenolred-(beta )d-galactopyranoside (CPRG) resolution, we noticed a change in colour upon enzymatic conversion of the yellow CPRG to chlorophenol crimson. We noticed that the colour change occurred on the location of the capsules, and visualization with a 4× goal confirmed that the inside of some caspules flip to an intense purple crimson colour (Fig. 4F,G). Though the pictures weren’t used as a quantification of the chlorophenol crimson focus, they clearly confirmed that conversion of CPRG to chlorophenol crimson occurred contained in the (beta )-galactosidase-containing capsules. These outcomes demonstrated the likelihood for the direct encapsulation of lively enzymes into semi-permeable microcapsules, and we moreover confirmed that capsules will be air-dried in a lyoprotective resolution of trehalose and nonetheless retain their exercise after rehydration.

Determine 5
figure 5

Immobilization of DNA strand displacement response community in semi-permeable microcapsules and implementation of a two-layer signalling cascade. (A) Schematic illustration of the two-layer signalling cascade as developed by Joesaar et al.6 (B) Implementation of the two-layer signalling cascade in poly-PEG-DA 258 capsules. The 2 capsule populations had been blended collectively and imaged on a cell-counting slide instantly after addition of fifty nM enter strand (A). A rise in Cy5 and Cy3 fluorescent alerts was noticed akin to the activation of the primary and second populations, respectively. (C) Median depth of detected particles. A rise within the Cy5 sign was noticed akin to the activated first inhabitants of capsules. After launch and diffusion of the sign strand ((Q_1)) to the second capsule inhabitants, a rise in Cy3 sign was noticed akin to their subsequent activation. The bigger symbols correspond to the median of all detected particles in a given fluorescent channel.

Encapsulated DSD response networks and implementation of a two-layer signalling cascade

We investigated the potential for encapsulating extra advanced biomolecular methods, as this might be used for sensing and responding to a stimulus in diagnostic, therapeutic, or theranostic purposes. It was not too long ago demonstrated that DNA strand displacement (DSD) reactions will be carried out in proteinosome microcompartments11 as a mannequin of protocellular communication and distributed biomolecular computation6. Right here, we immobilized biotinylated DNA strands in our poly-(PEG-DA 258) capsules containing streptavidin, following the design from Joesaar et al.6.

We carried out a two-layer signalling cascade by functionalizing a primary inhabitants of capsules with a transducer DSD gate that prompts after toehold displacement by a ssDNA enter strand (A), which ends up in the discharge of a sign strand (Q1) and unquenching of a Cy5 fluorophore. The (Q1) sign strand can in flip activate a second inhabitants of capsules functionalized with a transducer-amplifier DSD gate releasing a second sign strand (Q2), this time unquenching a Cy3 fluorophore. We additionally added a gas strand which acts as an amplifier (Fig. 5A). The 2 capsule populations had been blended collectively and the two-layer signalling cascade was activated upon addition of the enter strand (A). On this experiment, we blended the 2 capsule populations, added 50 nM enter strand (A), and loaded the freely shifting capsules right into a cell counting chamber. We first measured a Cy5 sign enhance akin to the primary inhabitants of capsules containing the primary DSD transducer gate being activated. After a time lag of some minutes, we noticed a subsequent enhance in Cy3 sign akin to the second inhabitants of capsules containing the transducer-amplifier DSD gate (Fig. 5B,C). We noticed a Cy5 enhance in about 10 capsules of the primary inhabitants and Cy3 enhance in about 15 capsules of the second inhabitants. The activation of the two-layer cascade might be modified by altering the focus of enter strand (A). By growing its focus to 100 nM, the activation of the primary inhabitants was drastically accelerated, and it was troublesome to seize the preliminary sign enhance (Supplementary Fig. S4). Alternatively, decreasing focus of (A) to 10 nM led to a a lot decrease degree of activation (Supplementary Fig. S4). In all instances, we noticed a lag of 5 to 10 min between activation of the primary inhabitants and activation of the second inhabitants. Whereas it is a succinct implementation of the not too long ago developed compartmentalized DSD reactions, these outcomes demonstrated that DSD reactions will be effectively encapsulated in our semi-permeable microcapsules and employed to construct speaking biomolecular methods.
