Differential results of wastewater therapy plant effluents on the antibiotic resistomes of numerous river habitats

Resistomes considerably differ amongst river habitats

To profile the Swiss river resistome comprehensively, 165 metagenomes with a mean sequencing depth of 67 million reads (51–110 million) and 10 GB (7.6–16.5 GB) have been generated (Dataset S1). Based mostly on the annotation with ARG-OAP 2.0 in opposition to the SARG (Structured Antibiotic Resistance Gene) database [22, 29], we retrieved 677 ARG subtypes in 21 resistance lessons from all habitats mixed.

The alpha-diversity of ARGs measured by Shannon index was in contrast amongst WWTP effluent and completely different river habitats (i.e., particle-associated biomass and free-living micro organism in river water, biofilm, sediment, and amphipod intestine). The Shannon index of ARGs for particle-associated biomass and amphipod guts have been highest amongst river habitats, as an illustration considerably increased than for biofilm and sediment (Submit-hoc Wilcoxon rank-sum exams; p < 0.05) (Fig. 2a). Moreover, the Shannon index of ARGs in WWTP effluents was considerably increased than in different places (US, D1, DS) for all of the habitats (Fig. 2a). This means that habitats to some extent exert management over the variety of ARGs. The variability of alpha-diversity was particularly excessive in river water. The Shannon index of ARGs in downstream D1 websites was considerably increased than in US websites for particle-associated micro organism in river water (p < 0.05), however not for the opposite habitats. Extra complete evaluation on the affect of effluents by way of collective and particular person ARG abundances shall be offered in sections “River water resistomes have been considerably impacted by wastewater effluents” and “No constant results of wastewater effluent on non-water habitats”.

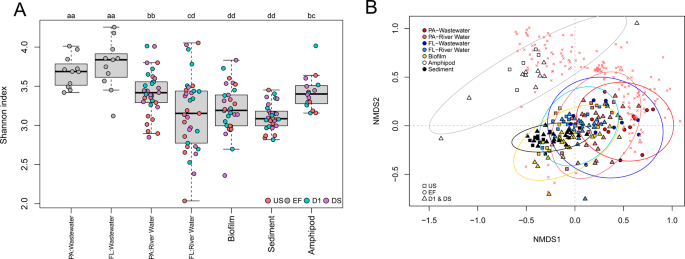

Fig. 2: Alpha- and beta-diversity evaluation of the resistomes of river habitats.
figure 2

A The Shannon index of ARGs in WWTP effluent and river habitats (FL: free-living fraction, PA: particle-associated fraction). These habitats which share the identical letter (i.e., a or b or c) should not statistically completely different from one another. B Non-metric multidimensional scaling (NMDS) evaluation of the resistomes of varied riverine compartments (waters, biofilms, sediments, and freshwater amphipod guts) and WWTP effluents (ultimate stress = 0.168). The chosen ARGs have been scaled by the sq. root of R2. The variance ellipses utilizing customary deviation of level scores (with confidence limits of 0.95) have been highlighted in several colours for biofilm (in yellow), wastewaters (free-living in thick crimson; suspended particle in thick blue), river waters (free-living in gentle crimson; suspended particle in gentle blue), sediment (in black), and amphipod guts (in grey). The ARGs which might be considerably correlated with the ordination (p ≤ 0.001) have been displayed with the image × in crimson.

Structural dissimilarities amongst resistomes of various habitats have been evaluated utilizing NMDS of ARG relative abundance knowledge (Dataset S2). The habitats grouped into overlapping however distinct clusters within the ordination (Fig. 2b). Important variations have been confirmed by ANOSIM evaluation with Bray-Curtis distance (r = 0.47, p ≤ 0.001). The pairwise comparisons between habitats utilizing ANOSIM confirmed important variations (p ≤ 0.001, Desk S1), indicating that every habitat displays its personal distinctive resistome composition. Particularly the resistomes of freshwater amphipod guts have been profoundly completely different from different habitats, as supported by excessive r values between amphipod guts and all different habitats (r ≥ 0.77, Desk S1). This means {that a} dramatic compositional shift of the resistomes occurred through the low-level trophic stage transition from microbiomes of aquatic and benthic meals sources to amphipod intestine microbiomes. Wastewater and amphipod intestine samples unfold extensively within the ordination plot, indicating increased site-to-site variability in comparison with the opposite habitats (Fig. 2b). This was confirmed by exhibiting that distance to centroid was in lots of pairwise comparisons considerably increased in these habitats (p < 0.05 primarily based on Tukey’s HSD check) (Fig. S2). The resistomes of downstream waters have been extra much like effluent resistomes than resistomes of some other habitat (Fig. 2b). This impact of wastewater affect was not obvious in any of the opposite habitats. River water thus gave the impression to be most importantly impacted by wastewater discharge amongst all habitats.

Amongst a complete of 677 ARG subtypes recognized from 165 samples, we recognized 165 ARG subtypes from 15 completely different resistance lessons that have been considerably correlated with the ordination (p ≤ 0.001 primarily based on permutation check (n = 5000)) (Fig. 2b). These 165 ARG subtypes have been visualized as heatmaps exhibiting patterns in ARG abundance and between habitats (Fig. 3). Whereas variations between habitats are obvious, we additionally observe that normal patterns of excessive and low-abundance ARG subypes persist throughout most or all studied habitats. Some ARGs occurred in excessive abundances solely in amphipod intestine samples, notably many TEM genes (e.g. TEM-1/205/117 and the prolonged spectrum beta-lactamase TEM-118), OXA-60, aph(3’)-IIb, floR, vanG, arr, vanR, and others. (Fig. 3). Another ARGs (e.g., aadA, OXA-9/10/147, CfxA2, sul1, and tet39/Q/O) occurred in excessive abundances within the different habitats, particularly for particle-associated and free-living micro organism from effluent samples (Fig. 3). OXA genes occurred in a different way from TEM genes though each households confer resistance to the identical class of antibiotics (i.e., beta-lactams) (Fig. 3a). Many OXA genes have been generally present in gene cassettes of sophistication 1 integrons from scientific and environmental samples [30,31,32,33]. Contemplating that the gene cassettes of sophistication 1 integrons sometimes comprise a number of resistance genes [34], many micro organism having OXA genes may additionally possess different ARGs, which may make them multi-resistant. Existence of a number of sturdy drivers (i.e., numerous antibiotics) throughout and/or previous to WWTP levels may choose OXA genes over different households (e.g., TEM), which may end result of their excessive relative abundances in effluent water samples. Nonetheless, the OXA-60 gene occurred with increased abundance in amphipod guts than within the different habitats, and confirmed a sample much like most TEM genes (Fig. 3). OXA-60 is considered chromosomal, and never related to class 1 integrons as a result of there is no such thing as a core web site or inverse core web site for recombination which allows the gene to be inserted right into a gene cassette [35, 36]. Because of this, OXA-60 may expertise completely different ecological choice processes in comparison with mobilized OXA genes. Nonetheless, our research primarily based on short-read-based evaluation doesn’t enable to evaluate co-location between OXA and sophistication 1 integron genes or chromosomes. A future research involving genomic meeting could be required to verify the abovementioned speculation.

Fig. 3: Heatmaps displaying relative abundances of chosen ARGs chosen primarily based on their explanatory energy in ordination (see Fig. 2) within the metagenomes of various river habitats.
figure 3

A ARGs conferring aminoglycoside, beta-lactam, chloramphenicol, fosfomycin and fluoroquinolone resistance. B ARGs conferring macrolide-lincosamide-streptogramin (MLS), multidrug, sulfonamide, tetracycline and different resistances. Relative abundance was log-transformed (i.e., Log10(GP16S × 106 + 1)) for the plot. Every row signifies a pattern (organized by pattern kind). PA denotes particle-associated (PA, > 5.0 μm) wastewater (EF) or river water biomass from completely different places (D1, DS, US) and FL denotes free-living (FL, 0.2–5.0 μm) wastewater or river water biomass. BLs, CHL, FLO, MFS, PURO, RIFMO, and TET stand for beta-lactamase, chloramphenicol, florfenicol, main facilitator superfamily, puromycin, rifampin monooxygenase, and tetracycline, respectively. ‘-R’ signifies ‘-resistance gene’.

The relative abundance of many ARGs (12 out of 19 ARG lessons; excluding unclassified ones) was considerably increased in particle-associated than in free-living water micro organism (p < 0.05). These ARG lessons included aminoglycoside, bacitracin, beta-lactam, fosfomycin, fosmidomycin, macrolide-lincosamide-streptogramin, multidrug, quinolone, rifamycin, sulfonamide, tetracycline, and vancomycin resistance genes, and different unclassified ARGs (Fig. 4a). We speculate that particle-associated micro organism stay in multi-species associations both in aggregates (e.g., flocs or biofilm fragments) or hooked up to particles. The ensuing spatial proximity could enhance the degrees of chemical (e.g., excretion of antagonistic substance) [37] and/or genetic communications (e.g., horizontal gene switch) between cells [38], which can end in extra energetic choice and proliferation of ARGs. It has been reported that microbial neighborhood composition differs in particle-associated and free-living communities [39, 40]—such variations may additionally end in completely different resistomes. Sadly, on account of low DNA yields for the particle-associated fraction we have been unable to check this speculation for our samples. This side ought to thus be explored additional in future analysis.

Fig. 4: Relative abundances of class-level aggregated ARGs that have been recognized by metagenomic evaluation for every compartment.
figure 4

A Comparability between particle-associated (PA) and free-living (FL) biomass from wastewater (EF; left) and river water (US, D1, and DS; proper). B Occurrences of ARGs within the completely different habitats: PA, and FL fraction of water, biofilm, sediment, and freshwater amphipod intestine. The asterisks (‘*’ signifies p < 0.05; ‘**’ signifies p < 0.01) point out important variations between PA and FL (for A), or between US versus the opposite places (EF, D1, and DS). MLS signifies macrolide-lincosamide-streptogramin (for B). The ARG lessons that occurred in at the very least one of many places (US, EF, D1, or DS) have been proven for every habitat.

Resistomes are structurally correlated with microbiomes

To check if bacterial neighborhood composition itself may very well be a key issue driving the variations in resistomes throughout habitats noticed in Fig. 2b, we carried out Procrustes evaluation to discover the interconnections between resistomes and microbiomes (Fig. 5) (models: GP16S for resistomes, and normalized reads for microbiomes). This dataset included the samples for free-living water micro organism, biofilm, sediment, and amphipod intestine samples (see Dataset S1). The p worth of the Procrustes evaluation was important at 0.1 % stage (p = 0.001) with Procrustes sum of squares (m12 squared) of 0.5406, and correlation in a symmetric Procrustes rotation of 0.68. This gives sturdy proof that resistomes have been structurally correlated with microbiomes, confirming one in all our preliminary speculation. Certainly, the deviations between every of two datasets (displayed as vector residuals; the longer the vectors the better the dissimilarity) have been normally not giant (Fig. 5). This end result signifies that shifts of microbial communities is perhaps an essential driver for modifications of resistomes throughout habitats in riverine environments, largely confirming our preliminary speculation.

Fig. 5: Correlation between resistomes (symbols) and microbiomes (ideas of arrows) utilizing Procrustes evaluation (p = 0.001).
figure 5

Samples with pronounced disagreement between resistome and microbiome construction are labeled (see Dataset S1 for additional particulars on every pattern).

Giant deviations have been famous for some samples. For example, in three amphipod samples and three samples of the free-living fraction of effluent samples (Fig. 5, labeled icons) the resistome and microbiome buildings have been decoupled. Thus, modifications of microbial communities weren’t in all instances essentially associated with corresponding modifications of ARGs. A profound mobilization of ARGs in these samples, or a neighborhood excessive abundance of clonal bacterial variants with acquired resistances may very well be potential explanations, however must be confirmed by additional investigations.

River water resistomes have been considerably impacted by wastewater effluents

Our research websites have been chosen to haven’t any recognized level sources of effluents upstream from the studied WWTPs. Accordingly, we didn’t observe important indicators of air pollution at US websites. The effluents from WWTPs considerably elevated measures of three physicochemical wastewater indicators (i.e., chloride and sulfate concentrations, and conductivity) in receiving waters (important variations between US and D1, p < 0.05) (Fig. S3). Thus, noticed impacts on resistomes downstream of the WWTPs could be assumed to originate largely from the native WWTP effluents.

A complete of 19 resistance lessons (excluding bleomycin and carbomycin; see “Strategies”, part “Statistics and visualization”) was examined for variations between places (Wilcoxon signed-rank check). Important affect (p < 0.05) of effluent on D1 (i.e., a big distinction between D1 and US) was noticed solely in water, and just for some ARG lessons, however not within the different habitats (Fig. 4b). The impact was most pronounced for sulfonamide resistance genes for each particle-associated and free-living fractions; for beta-lactam antibiotics resistance genes the distinction was important just for the particle-associated micro organism fraction (Fig. 4b). For aminoglycoside, and trimethoprim resistance genes, relative abundances in effluent have been considerably increased (or, for bacitracin and kasugamycin, decrease) than at US, however the affect of effluent was not important on the D1 location.

For these lessons for which statistically important impacts have been noticed (i.e., aminoglycoside, sulfonamide, and beta-lactam resistance for particle-associated micro organism; aminoglycoside, sulfonamide, bacitracin, trimethoprim and kasugamycin resistance for free-living micro organism), we additional examined the variations by location for every resistance subtype within the class (a complete of 231 subtypes). In response to Kruskal–Wallis check, relative abundances of 12 subtypes (aac(6’)II, aadA, aph(6)I, OXA-2, -10, -12, -20, -119, -129, and -147, class A beta-lactamase resistance genes, and sul1) have been considerably completely different throughout places for the particle fraction (p < 0.05); 6 subtypes (aac(6)II, aadA, bacA, bcrA, ksgA, and sul1) have been considerably completely different amongst places for free-living micro organism (p < 0.05); 1 subtype (OXA-2) was considerably completely different amongst places for sediment (p < 0.05). For the abovementioned 15 subtypes with important variations (p < 0.05; from Kruskal–Wallis check), the post-hoc evaluation utilizing Wilcoxon signed-rank check was carried out, and the outcomes have been proven in Dataset S4, additionally graphically displayed in Fig. 6. A major affect of effluent on D1 (i.e., important variations between US and D1, p < 0.05) was noticed for some ARG subtypes, as an illustration, 1 aminoglycoside (aadA), 1 sulfonamide (sul1), and 1 beta-lactam antibiotic resistance genes (class A beta-lactamase gene) solely in particle-associated and/or free-living micro organism (Fig. 6). The relative abundances of these genes (i.e., aadA, sul1, and sophistication A beta-lactamase gene) have been notably excessive in effluent in comparison with US waters, which readily explains why the results have been noticed most clearly for these genes. There have been many different research that beforehand reported that relative abundances of the aforementioned forms of resistance genes are excessive in effluents [9, 17, 41, 42]. This may very well be both because of the excessive inputs of aadA, sul1, and sophistication A beta-lactamase gene from uncooked sewages (i.e., untreated wastewaters) [17, 41, 42], or on account of their will increase throughout wastewater therapy processes [9]. These outcomes point out that “co-occurrence” of aadA, sul1, and sophistication A beta-lactamase gene may very well be a helpful indicator of anthropogenic AMR contamination in river water. Amongst these genes, sul1 has already been thought of as indicator for anthropogenic air pollution by many research [4, 12, 43, 44].

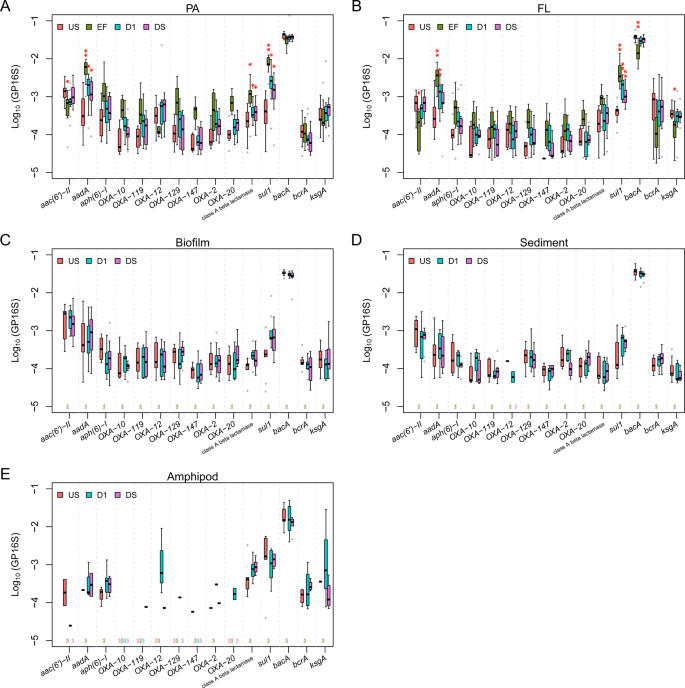

Fig. 6: Log10-transformed relative abundances of chosen (statistically screened; see 3.3) ARGs.
figure 6

A particle-associated (PA) river water, B free-living (FL) river water, C biofilm, D sediment, E freshwater amphipod intestine. The subtypes of aminoglycoside, sulfonamide, and beta-lactam, bacitracin, and kasugamycin resistance genes that present significance variations of relative abundances in location for at the very least one of many 5 habitats. The places (EF, D1, and DS) which might be considerably completely different from US by way of relative abundances have been asterisked (‘*’ signifies p < 0.05; ‘**’ signifies p < 0.01).

No constant results of wastewater effluent on non-water habitats

We didn’t see important variations of relative abundances of resistance lessons between sampling places within the upstream and downstream for amphipod guts (Fig. 4b) utilizing Kruskal–Wallis check (p > 0.05). Proof of accumulation or enrichment of wastewater-derived ARGs in amphipod guts on account of effluent discharges into the rivers have been thus not noticed on this research (US-D1/DS comparability). We additional famous no similarities of amphipod intestine resistomes to these of the potential meals supply, corresponding to biofilm. These outcomes lead us to reject one in all our preliminary speculation – wastewater-born ARGs don’t seem like transferred to, gathered, or enriched within the intestine microbiome of low trophic stage fauna. Nonetheless, it needs to be famous that amphipods are cellular and will have moved between upstream and downstream places over their lifetime, which may additionally clarify the dearth of locational variations. Then again, the resistome of the arthropod intestine microbiome was distinctive and enriched for sure ARG (e.g. TEM genes and OXA-60), indicating extra research on the resistomes of aquatic organisms are wanted.

There have been additionally no important variations within the relative abundances of resistance lessons of ARGs (a complete of 19) between places for the opposite habitats (sediments and biofilms) (Fig. 4b). For biofilms, the median relative abundance of sulfonamide resistance genes was elevated within the D1 websites in comparison with US by 55% (Fig. 4b), however the distinction between D1 and US was not important primarily based on the non-parametric Wilcoxon signed-rank check (p = 0.07). Related outcomes have been obtained for sediment.

These findings indicated that wastewater inputs didn’t persistently result in sweeping and broad modifications of the resistomes of the “sessile” downstream bacterial communities in biofilm, sediment or amphipod guts, partially rejecting one in all our preliminary speculation. WWTP effluent was not discovered to have an effect on downstream resistomes in all habitats of the river. As an alternative, this impact was restricted to the water itself.

Our statistical exams primarily point out that constant results over broad resistance lessons and throughout many alternative websites have been troublesome to detect within the metagenomics resistomes knowledge. Different research have proven that results, typically pronounced results, can typically be seen in particular person websites [12, 14, 16,17,18], or utilizing completely different methodological approaches, corresponding to at our personal research websites when utilizing phenotypic screening of AMR micro organism adopted by metagenomics [21]. One of many causes for not discovering stronger results for non-water habitats may very well be that bacterial cells dwelling in sediments, epilithic biofilms, and amphipod guts in attached-growth kinds, are secure over longer intervals of time (in comparison with the water habitats) and kind complicated, numerous communities with many interdependencies [45,46,47]. Thus, these communities are topic to ecological and evolutionary processes which will restrict their invadability by the wastewater-adapted micro organism within the effluent. Nonetheless, because of the increased detection restrict of metagenomic sequencing in comparison with, as an illustration, PCR-based approaches [9], our evaluation can’t exclude that such communities are invaded by sure resistant micro organism of wastewater origin (particularly low-abundance ones) or obtain resistance determinants from wastewater micro organism by horizontal gene switch. Our outcomes simply point out that, if such results happen, they don’t have an effect on the general resistomes on the decision studied right here, or that such results don’t happen persistently sufficient on the research websites to be statistically important in our evaluation.

The dearth of sturdy drivers for resistance choice may additionally be one of many causes for restricted results on the “hooked up development” habitats. A Swiss-wide challenge the place 12 WWTPs receiving home sewage have been studied confirmed that the concentrations of nearly all of antibiotics in effluents didn’t exceed proposed predicted no impact concentrations (PNECs) for resistance choice [9, 48] (Fig. S4). Contemplating that the concentrations in wastewater are topic to additional dilution by as much as one order of magnitude after discharge into rivers, concentrations of antibiotics within the receiving waters shall be even decrease. Thus, the probabilities for antibiotics-mediated resistance choice are very low or absent. One other research carried out in two strongly wastewater-impacted Swiss rivers additionally revealed that concentrations of antibiotics in downstream waters have been decrease than PNECs [12, 48]. Our present research websites (streams and rivers receiving handled home wastewaters) are much like these websites, so we don’t anticipate excessive concentrations of antibiotics in receiving waters on this research.

Whereas our outcomes confirmed that the affect of effluent on the resistomes of non-water habitats is much less clear than within the water, this doesn’t imply effluent doesn’t have an effect on downstream non-water habitats in all instances. The diploma of affect relies upon largely on two elements, specifically the focus of contaminants and resistant micro organism within the effluent and the proportion of effluent to river discharge. Repeated samplings at chosen rivers with excessive wastewater inputs may reveal results on the downstream resistome that weren’t obvious on this multi-site research. For instance, it has been reported that the abundances of ARGs in biofilms and/or sediments elevated after receiving wastewaters in some instances, for instance in a river receiving untreated or poorly handled wastewaters [18], handled wastewater containing hospital origin contaminants [16], or excessive volumes of handled wastewaters [12, 14, 17]. These references recommend that at extremely contaminated websites a distinction within the resistomes is anticipated between US and downstream non-water habitats. Our outcomes nevertheless recommend that such an impact is non-existent or small for common communal WWTPs discharging into rivers with sufficiently excessive circulation volumes in Switzerland. Observe-up research to find out the extent of contamination that results in alterations of the resistome shall be required to outline high quality requirements for sanitation infrastructure within the context of AMR contamination of aquatic techniques.

Riverine resistomes within the One Well being context

Important alteration of water resistomes on account of WWTP effluent and the dearth of such results on resistomes of non-water habitats means that “water habitats” may very well be prioritized in the case of the surveillance of riverine AMR.

The completely different riverine microbiomes however deserve additional research. We discovered sure ARGs in comparatively excessive abundance (e.g., TEM-1/205/117 and OXA-60) in amphipod intestine microbiomes. The extent to which these environmental reservoirs contribute to present human infections with resistant pathogens on the one hand or, maybe extra importantly, long-term resistance evolution on the opposite, can’t but be answered from our knowledge. A broadcast attribution research from the Netherlands means that the contribution of environmental reservoirs to at the very least some at present circulating antimicrobial resistances of specific scientific concern are low [49]. Nonetheless, for Switzerland and for a lot of different forms of resistance such knowledge are at present not accessible, and the function of environmental resistance reservoirs for the emergence and evolution of resistance over longer intervals of time stays largely unexplored. Within the context of techniques with (comparatively) low ranges of contamination, as studied right here, further efforts needs to be undertaken to review the long-term (evolutionary) affect of persistent publicity of microbiomes in numerous river habitats to AMR, cellular genetic parts, and potential substances with antibiotic resistance selective potential launched with WWTP effluents.
