Antimicrobial properties of a multi-component alloy

Construction of the sputtered skinny movies

Skinny-films of (CoCuAgNi) alloy have been ready by combinatorial sputtering at room temperature on a 100 mm Si (100) wafer, as described within the Strategies part, and proven illustratively in Supplementary Fig. S1. The sputtering method makes use of an accelerated Ar plasma to generate a vapor of every metallic at single-element sources. The weather mix within the vapor state and condense on the Si substrate, with solidification occurring on the nanosecond timeframe, providing little alternative for the weather to diffuse. With out the chance to diffuse, the weather can type a metastable alloy, even when the father or mother components are immiscible43,44. Proof of alloying, slightly than amorphous or glassy conduct, may be seen within the X-ray diffraction (XRD) knowledge mentioned under. For combinatorial sputtering particularly, the sputtering sources are organized across the substrate in a confocal geometry; areas of the wafer near (removed from) a supply have the next (decrease) focus of the ingredient from that focus on, thus a compositional gradient of ≈50% is achieved throughout the diameter of the wafer.

Compositional mapping was carried out by scanning electron microscopy (SEM) with vitality dispersive X-ray spectroscopy (EDX), measured at 17 positions on the wafer. These maps, proven in Fig. 1a, determine the compositions on the 4 extremum edges of the pattern to be (Ni11Ag21Co13Cu55) (Ni22Ag54Co6Cu18) (Ni26Ag12Co39Cu23) (Ni55Ag22Co12Cu11), with an equal compositional level situated close to the wafer middle. X-ray diffraction measurements of the as-grown pattern, Fig. 1b, present broad peaks at ≈39° (d = 2.31 Å) and ≈44° (d = 2.06 Å); these peaks align intently with the father or mother compounds: face centered cubic (FCC) Ag (111) at 37.4° (d = 2.40 Å), Ag (200) at 43.5° (d = 2.08 Å) and FCC Ni (111) at 44.8° (d = 2.02 Å). The similarity between these parameters means that the as-grown movies possess an FCC construction with a polycrystalline microstructure. Additionally, for ample Ag content material, the smaller (Co, Cu, Ni) atoms are built-in into the Ag crystal lattice. Reducing the Ag content material, the height at ≈39° disappears, whereas the height at ≈44° strikes to greater angles, indicating the Ag is built-in into the smaller Ni lattice. The system is inherently strained as a result of giant distinction in atomic measurement between the Ag (diameter of 160 pm), and the Ni, Co and Cu (≈135 pm)58. A crude measure of the structural section distribution may be inferred from the ratio of the XRD peak areas, after correcting for the Fresnel fall off, the overlap of the Ag(200) and Ni(111), and the bigger type issue from the Ag atoms. The resultant map of the section distribution, Fig. 1c, confirms that the system undergoes a structural transition from the bigger to smaller lattice spacing and on the equal composition level, the Ag is essentially built-in into the CoCuNi lattice.

Determine 1
figure 1

(a) Compositional map of Ni, Cu, Ag and Co. (b) X-ray diffraction patterns, taken at positions 1–17, recognized in panel c. (c) Contour plot of the 2 FCC phases within the as-grown system.

After annealing at 600 °C for 60 min in flowing forming fuel (N2 + 5percentH2) the samples developed a foggy floor distinction whereas retaining a gray metallic hue, suggesting the they weren’t oxidized and are a lot rougher; annealing at 600° then cooling in air resulted in a blue coloured oxide. X-ray diffraction measurements of the annealed movies are proven in Fig. 2 and are listed to a few main phases: Ag (FCC1), (Ni,Co)Si2 (fluorite, FCC2), and (Ni,Co,Cu)Si (B20). Earlier works have proven that CoNi movies grown on Si substrates and annealed in related circumstances uptake Si from the substrate, forming these phases59,60. Identification of those explicit compositions have been knowledgeable by earlier works on NiCo/Si methods, and by comparability between the XRD and EDX outcomes. All the XRD patterns present peaks for an Ag-like (FCC1) section with a lattice parameter of 4.077 Å, matching intently to bulk Ag (4.20 Å). EDX photos in Fig. 3, taken on the equal composition level (recognized as place 3 within the diagram) present ellipsoidal Ag precipitates ≈600 nm in diameter totally ejected from the movie. Whereas the HEA paradigm encourages alloying, it’s not an absolute assure, as noticed right here. Returning to the traditional Hume-Rothery guidelines of alloy design, the maximal distinction in atomic radii which may be accommodated in an alloy is 15%, whereas the distinction between Ag and the opposite metals is > 18%; standard supplies design guidelines accurately predict the immiscibility of the Ag. Every of the binary section diagrams additionally predict immiscibility of the 3d metals with Ag. Silver precipitates have been noticed in earlier antimicrobial surfaces of Ag-diamond like carbon (DLC), leading to lowered supplies longevity, however improved long-term antimicrobial properties54,61. The EDX additionally reveals Ni and Co within the precipitates. The marginally smaller lattice parameter of FCC1 in comparison with bulk Ag is probably going the results of a small quantity of residual Ni and Co being alloyed into the lattice.

Determine 2
figure 2

X-ray diffraction patterns captured at positions 1–17 after the anneal.

Determine 3
figure 3

(a) Contour plot exhibiting the relative XRD peak depth for the FCC phases after the anneal, A(50°) / (A(47°) + A(50°)), the place A is the height space. (b) SEM and EDX photos of positions 3, 8, and 1, recognized within the contour plot. The dimensions bar within the SEM picture corresponds to 1000 nm.

The movie beneath the Ag precipitates is comprised of two distinct domains, recognized by EDX as Cu-rich and Cu-poor; Cu-rich areas are additionally recognized as Si-poor when in comparison with the Cu-poor domains. Preliminary concerns have been that these have been (Ni,Co) and (Ni,Co,Cu) alloys42,62, because the Si sign may also be from the substrate. Nonetheless, the XRD outcomes can’t be fitted utilizing NiCoCu alloys, that are identified to have a lattice parameter of ≈3.52 Å42. Earlier works59,60 have proven that annealing NiCo on a Si wafer can quickly type NiSi2, CoSi, and CoSi2, with heats of formation of − 50.73 kJ/mol, − 56.00 kJ/mol, and − 40.7 kJ/mol respectively. The present work is additional sophisticated by the presence of Cu. The XRD peak at 47° may be completely listed to the (220) peak of a NiSi2 fluorite construction, hereafter recognized as FCC2, comparable to a lattice parameter of 5.42 Å; this worth is in good settlement with the father or mother compound, 5.44 Å. Equally, the XRD peak at 50° may be related completely with the (211) peak of a CoSi B20 construction, comparable to a lattice parameter of 4.49 Å; this worth is in good settlement with the father or mother compound, 4.43 Å. Utilizing the diffraction peaks at 47° (purple) and 50° (blue) the relative section distributions are plotted in Fig. 3. The section map confirms that, close to the Ni edge the movie is single-phase FCC2 (NiSi2), whereas within the NiCo nook, the movie is single-phase B20 (CoSi). This section distribution additionally provides rise to a distribution of the digital construction of the movie, with the disilicate FCC2 section being predominantly cost impartial63, whereas the monosilicate B20 section is tetravalent.

Recognizing that the Cu-rich and Si-poor areas are commensurate within the EDX photos, the Cu is proposed to preferentially incorporate into the monosilicate B20 construction. Based mostly on these outcomes, the annealed pattern may be usually described as a movie, with domains of (Ni,Co)Si2 and (Ni,Co,Cu)Si, with (Ni,Co):Ag precipitates. The section distribution map reveals giant, single-phase areas close to positions 8 (B20) and 17 (FCC2). EDX photos from place 8 present some chemical section separation of the Cu, albeit much less well-defined than place 3, regardless of that the XRD doesn’t present structural section separation. Micrographs have been captured at seventeen factors on the pattern, roughly co-located with the XRD measurements; three consultant positions are proven in Fig. 3 whereas the remaining photos are supplied within the Supplemental Supplies Fig. S2.

Fascinating microstructural modifications happen approaching the extremums of the annealed wafer. Approaching the CoCu edge (place 14), the Ag doesn’t precipitate as particles, however stays as a part of the movie, as a brand new area. Approaching the Ag and AgCu edges (positions 1 and 6), the microstructure modifications considerably, forming a worm-like lamella community suggesting at greater temperatures a single section could exist and undergoes spinodal decomposition into Ag- and Cu-rich phases. The lamellae are a lot smaller than the domains or precipitates in the remainder of the movie, with widths of ≈65 nm. The totally different constructions, significantly of the Ag, could end in totally different strengths of antimicrobial exercise64. These outcomes recommend that Ag-rich and CoCu-rich compositions could also be ready as bulk alloys, and retain the entire components in localized alloy domains. The next sections investigates the antimicrobial exercise of the as-grown wafer (with the weather uniformly intermixed on an atomic scale), and the annealed wafer (with compositional domains and Ag precipitates).

Antimicrobial exercise testing

Single-component and binary alloys

A variety of single-component metals, together with Co, Cu, Ni and Ag, amongst others, have been examined for antimicrobial exercise in opposition to the surrogate microbes. Metals for the single-component assessments have been included resulting from their reported antimicrobial exercise in opposition to quite a lot of human pathogens30 or industrial availability. Previous to testing, surfaces have been cleaned with acetone to take away any contaminating microbes or grease, however leaving the native oxide layer which might be anticipated on a deployed contact floor. Testing was carried out by recognizing 10 µL of a concentrated aqueous answer containing the take a look at organism onto a 25 × 25 mm2 take a look at floor, masking the spot with a 25 × 25 mm2 sterile glass slide, then recovering the microorganisms by washing the floor, and enumerating the dwell microorganisms, as described within the Strategies, and proven illustratively in Supplementary Fig. S3. This system was developed based mostly on earlier works65,66. Testing occasions have been chosen based mostly on the minimal time needed to attain full sanitation with the Cu constructive management—throughout the limits of the measurement process. This testing methodology is designed to simulate moist contact, for instance, microorganisms in droplets from respiration, sneezing or coughing and doesn’t signify ‘dry’ contact assays. The metallic Cu had important (p > 0.05) antimicrobial exercise in opposition to Phi6 and MS2, Fig. 4a,b (and Supplemental Fig. S4), attaining a 6.9-log discount of Phi6 (30 s take a look at time) and a 7.1-log discount for MS2 (30-min take a look at time). The log-reduction metric is a percentile scale which is normalized to the titer focus for every take a look at; these values correspond to the boundaries of detection for every respective organism. All the different examined metals—together with our candidate metals Co, Ni and Ag—confirmed a lot decrease exercise. Additionally notable among the many examined metals is zinc (Zn), which has been beforehand reported to have antimicrobial exercise in opposition to a variety of pathogens30, however right here seems to be weak (Supplementary Fig. S5). Zinc was not used within the wafer resulting from its excessive vapor strain, making it incompatible with general-use vacuum methods. All the examined surfaces, apart from Cu, are statistically an identical to the stainless-steel (alloy 304) management; 304SS is chosen because the management resulting from its widespread use for high-traffic surfaces.

Determine 4
figure 4

Antimicrobial exercise of single element (left) and multicomponent (proper) surfaces, examined on (a, e) Phi6, (b, f) MS2, (c, g) E. coli, and (d, h) B. subtilis. No B. subtilis was recovered on the metallic Cu.

The gram-negative mannequin Escherichia coli and gram-positive mannequin Bacillus subtilis have been additionally examined on the single-component surfaces, Fig. 4c,d, respectively. These measurements once more present sturdy exercise from Cu. Testing occasions have been established based mostly on the complete sanitation of the Cu management floor; not often, an energetic Phi6, MS2 or dwell e. coli was recovered resulting from statistical variation, nevertheless, no B. subtilis was recovered on any Cu management floor after the preliminary setting of the measurement time. Whereas E. coli skilled a major 5.9-log discount after 20 min of contact, comparable to just one colony enumerated within the highest focus wash. In the entire bacterial assays the Ag, Co and Ni have been once more statistically indistinguishable from the SS management. These outcomes recommend that floor contact of those bulk supplies could also be inadequate to impart antimicrobial exercise within the timeframe examined right here. General, Cu was the best metallic at decreasing microbial exercise in each the phages and micro organism. This sturdy exercise motivated its use because the constructive management in subsequent assays.

Two alloys of brass (alloy 360, Cu0.6Zn0.4 and alloy 260, Cu0.7Zn0.3) have been additionally examined involved assays, Fig. 4e–h; these alloys contained each antimicrobial supplies Cu and Zn (Supplementary Fig. S6). Assays carried out with Phi6 on alloy 260 and 360 resulted in no countable plaques after 30 s of publicity, an identical to pure Cu. For the opposite phage, MS2, the antimicrobial exercise was superior when in comparison with any of the single-component surfaces besides pure Cu; alloy 260 achieved a log discount of 5.3, whereas alloy 360 achieved a log-reduction of 4.0. Assays carried out on the micro organism confirmed an analogous development, with the Cu-rich alloys displaying sturdy antimicrobial exercise: E. coli confirmed a log-reduction of 5.6 on alloy 260 and no micro organism have been recovered on alloy 360, whereas B. subtilis skilled a log-reduction of 4.5 and 5.2 on alloys 260 and 360, respectively.

Copper oxides

The above outcomes collectively help a theme that Cu-content strongly influences the antimicrobial exercise involved assays. In a deployed floor, the Cu is predicted to be oxidized and current as both divalent CuO or monovalent Cu2O. Whereas the examined Cu coupons have a local oxide layer, that is anticipated to be a mixture of the 2 states. Oxidized Cu may be ready in both state by annealing Cu coupons in air as described beforehand67. Coupons have been ready with CuO and Cu2O oxidized surfaces. Contact assays carried out on oxidized coupons of CuO, Fig. 4e–h, confirmed comparable antimicrobial exercise to pristine copper, with log reductions of 6.5 and 4.8 for Phi6 and MS2, and no E. coli or B. subtilis have been recovered. The Cu2O movies nonetheless confirmed antimicrobial exercise, however tended to be extra microbe-specific, with log reductions of two.8, 4.9, 5.8, and 4.5 for Phi6, MS2, E. coli and B. subtilis, respectively. These outcomes recommend that the divalent (Cu+2) oxide possesses stronger antimicrobial properties than the monovalent (Cu+1).

Candidate prototype forex

Within the last preliminary investigation, the antimicrobial exercise of Cu-containing alloy (Cu55Zn28Ni14Mn2) was evaluated. This alloy is a candidate materials for next-generation minted forex68, making it extremely related as a heavy-traffic contact floor. Present cash in circulation in the US are alloys of Ni (8.3% or 25%) and Cu, or are Cu-coated within the case of the penny. Contact assays confirmed important (p < 0.05) exercise in opposition to Phi6 (log discount of three.2) and E. coli (4.5) (Supplemental Fig. S4). Nonetheless, the antimicrobial exercise in opposition to MS2 (2.0) and B. subtilis (0.5) was statistically an identical to the 304 stainless-steel management. This alloy is comparable in composition to brass alloy 360, nevertheless, its antimicrobial exercise is considerably much less, suggesting the Cu-content isn’t the one motivator of exercise.

CoCuAgNi alloy movies

Skinny movies comprised of the antimicrobial metals Cu, Ag, Co and Ni have been ready by sputtering and segmented into eight coupons, comparable to labels 1–8 in Fig. 5a, for testing involved assays; the composition on the middle of every coupon is listed in Desk 1. As famous above, the speedy transformation from the fuel section to a strong movie which is achieved with the sputtering method prepares the as-grown movie as a homogenized alloy43,44. The antimicrobial exercise of every coupon was used within the preparation of a heatmap, proven for every organism in Fig. 5, with the quantitative bar-graph illustration proven within the Supplemental Fig. S6. For Phi6, therapies with chips 2 and 5 resulted within the largest reductions of exercise (p < 0.05), practically on the restrict of detection and similar to pure Cu. Antimicrobial exercise sequentially decreased in coupons 6, 3, 8, 4, 7, and 1. Evaluating Fig. 5a with Fig. 1a, the antimicrobial exercise (log discount) in opposition to Phi6 intently follows the Cu content material. Testing in opposition to the phage MS2 (Fig. 5b) had an analogous development, with coupons 5, 2, and three exhibiting the strongest exercise (outlined as similar to pure Cu) and lowering with the Cu content material. The coupons confirmed broader exercise in opposition to E. coli and B. subtilis, Fig. 5c,d, respectively, with coupons 2, 5, and 6 exhibiting sturdy antimicrobial exercise. For E. coli the antimicrobial exercise continued to indicate a direct dependence on the Cu content material, much like Phi6 and MS2, nevertheless, the warmth map means that the most-active composition in opposition to B. subtilis is close to the equacompositional level.

Determine 5
figure 5

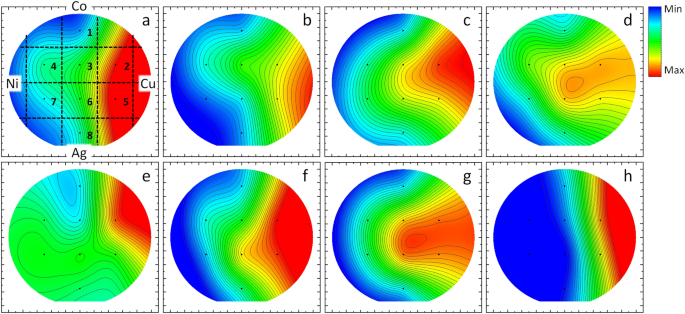

Warmth map of log-reduction on the skinny movie chips of (a) Phi6, (b) MS2, (c) E. coli, and (d) B. subtilis; log-reduction on the annealed chips of (e) Phi6, (f) MS2, (g) E. coli, and (h) B. subtilis.

Desk 1 Proportion (%) of metallic composition on the middle of every coupon used for antimicrobial testing.

Throughout the entire testing, coupon #1 (Cu23Co40Ni25Ag12) confirmed the least antimicrobial exercise. That is notable as a result of the warmth plots have a tendency to point a robust dependence on Cu content material, nevertheless coupon #1 was not the bottom Cu composition, coupons 4, 7 and eight have been all decrease; coupon #1 has the biggest Co content material (40%). This end result once more means that Cu ranges usually are not fully driving the alloy’s exercise. Lastly, not one of the plots present any sensitivity of the structural distribution proven in Fig. 1c.

CoCuAgNiSi annealed movies

The skinny movies have been annealed, ensuing within the section separation mentioned above and proven within the micrographs in Fig. 3, then examined for antimicrobial exercise. Testing outcomes are proven in warmth maps, Fig. 5e–h, and in bar graphs within the (Supplemental Fig. S7). Testing on Phi6, Fig. 5e, once more confirmed sturdy exercise from coupon 2 which was statistically an identical to the as-grown coupon 2. Nonetheless, coupon 5 had a statistically important discount in antimicrobial exercise in opposition to Phi6 (p < 0.05) in comparison with its as-grown alloyed counterpart. All the different chips confirmed elevated exercise after annealing, nevertheless solely chip 7 confirmed a statistically important enhance (p < 0.05).

The heatmaps for MS2 and E. coli present exercise tendencies that are related between the as-grown and annealed samples. Towards MS2 the annealed wafer reveals barely elevated exercise, whereas E. coli reveals a slight lower. Nonetheless, neither development confirmed a statistically important distinction between the as-grown and annealed take a look at surfaces.

Lastly, B. subtilis was examined and the coupons 2 and 5 once more confirmed important exercise (Fig. 5h and S7). Nonetheless, in distinction to the opposite pathogens, the opposite coupons confirmed a big discount in exercise relative to the alloyed pattern. Coupons 1 and three nonetheless confirmed stronger exercise in comparison with the SS management, whereas the remaining coupons (8, 6, 7, and 4) have been statistically an identical to the SS management. The annealing course of led to a major lack of antimicrobial exercise on the chips 3, 6, 4, and seven (p < 0.05), which have been from the Ni and Co heavy areas, when in comparison with the as-grown chips.
